Card reader PCS-CS..

Item no. 5091683 | EAN 4012195461654

-120 kA
3 kA
230 V
Product description
Product description

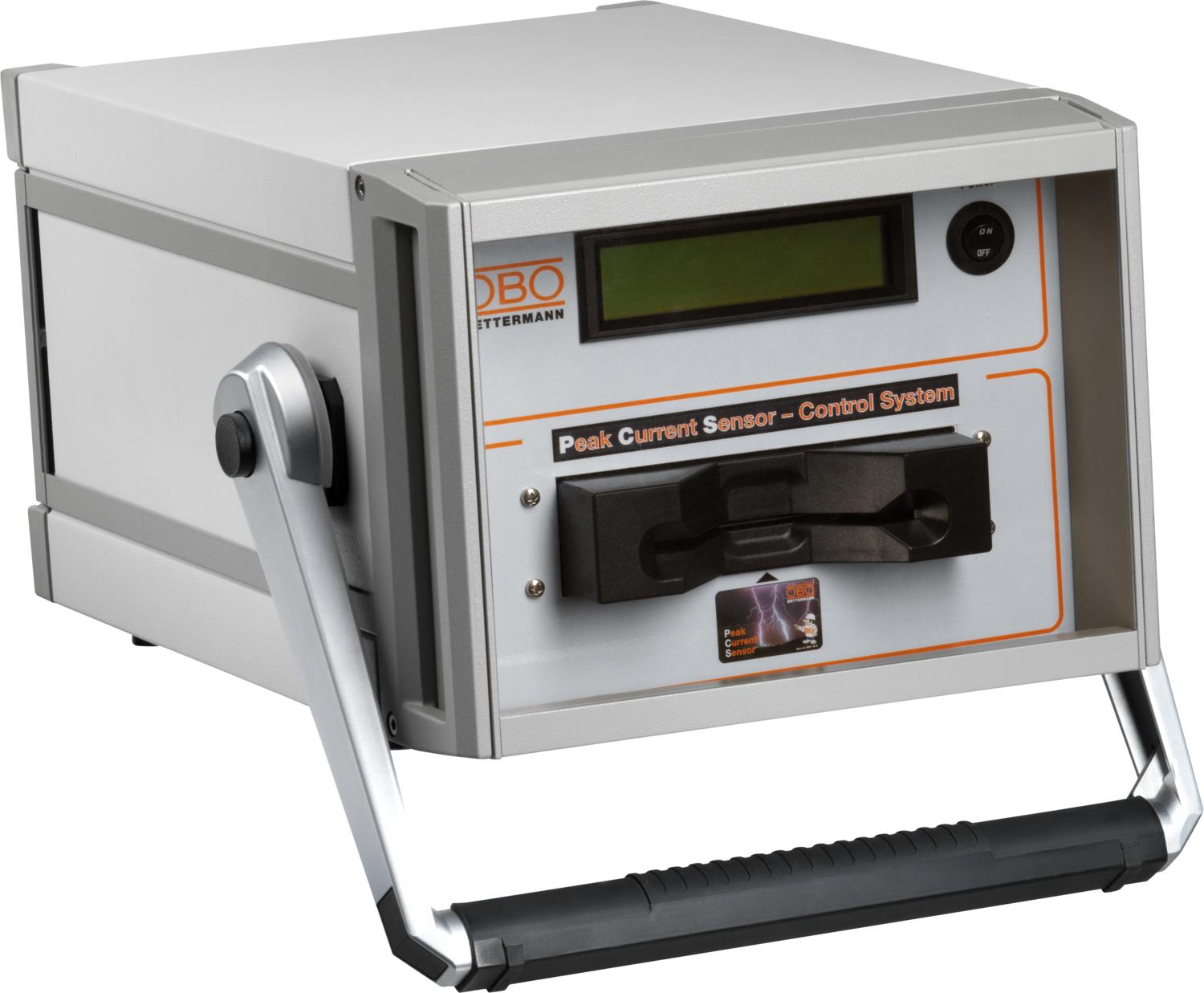

Magnetic card reader for reading and analysing PCS cards.

• Inc. rechargeable battery for 4 h continuous, no-mains operation
• Large, clear display
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
Country-specific version D

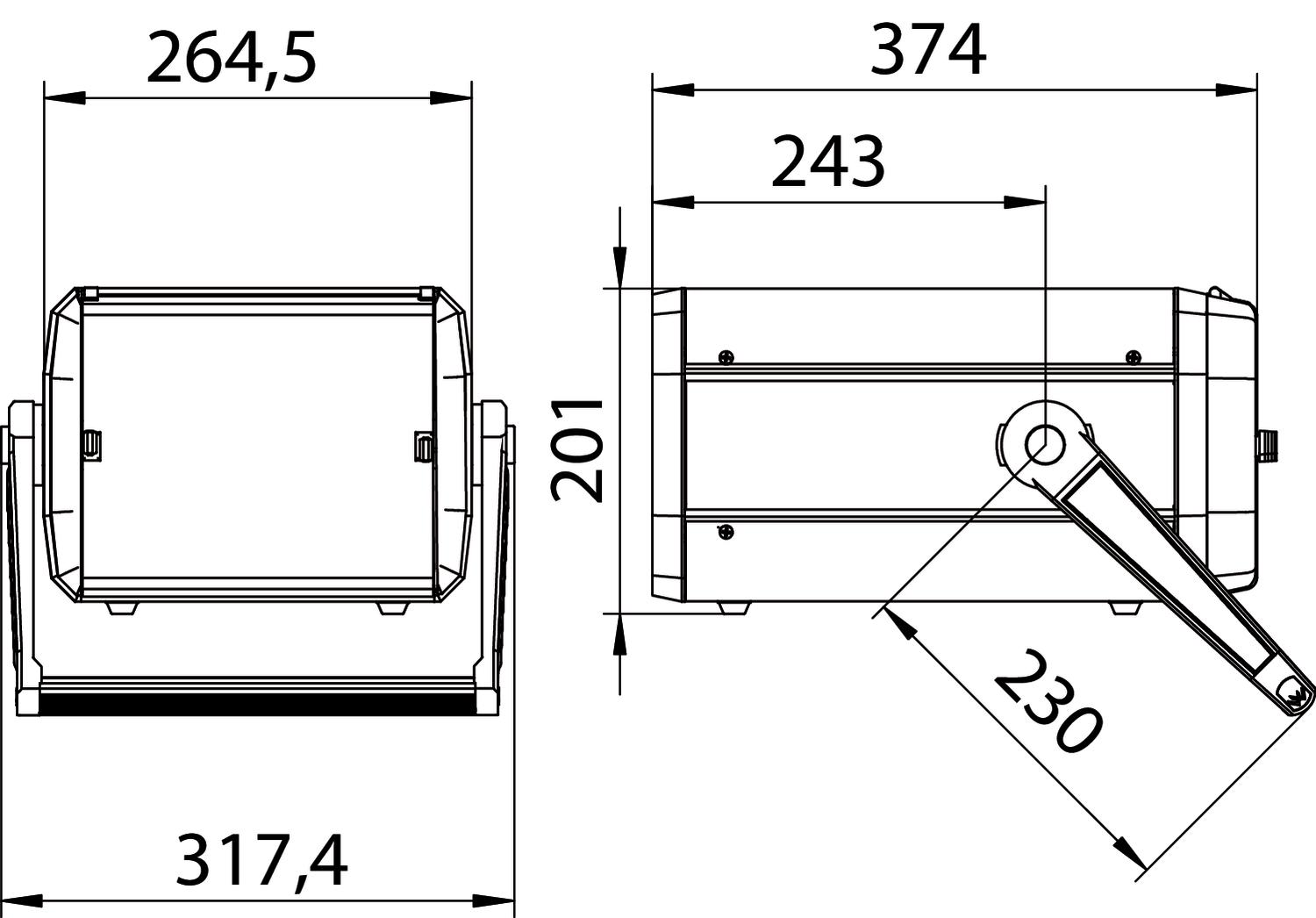

Dimension 250 x 200 x 380
Dimension DE
Maximum back-up fuse 1,25 A
Measuring range, max. -120 kA
Measuring range, min. 3 kA
Measuring tolerances < 2 kA (< 2%)
Nominal voltage 230 V
Permitted temperature range, max. 50 °C
Permitted temperature range, min. -10 °C
Spare part no
All types

All types

Types Measuring range, max. Measuring range, min. Nominal voltage Item no. Quantity SSU
PCS-CS-D -120 kA 3 kA 230 V 5091683
1 piece
PCS-CS-GB -120 kA 3 kA 230 V 5091691
1 piece
Downloads

Download

Download

EU declaration of conformity PCS-CS-D / 5091683 , 0.10MB , pdf
Download

PCS-CS-D / 5091683
Download
