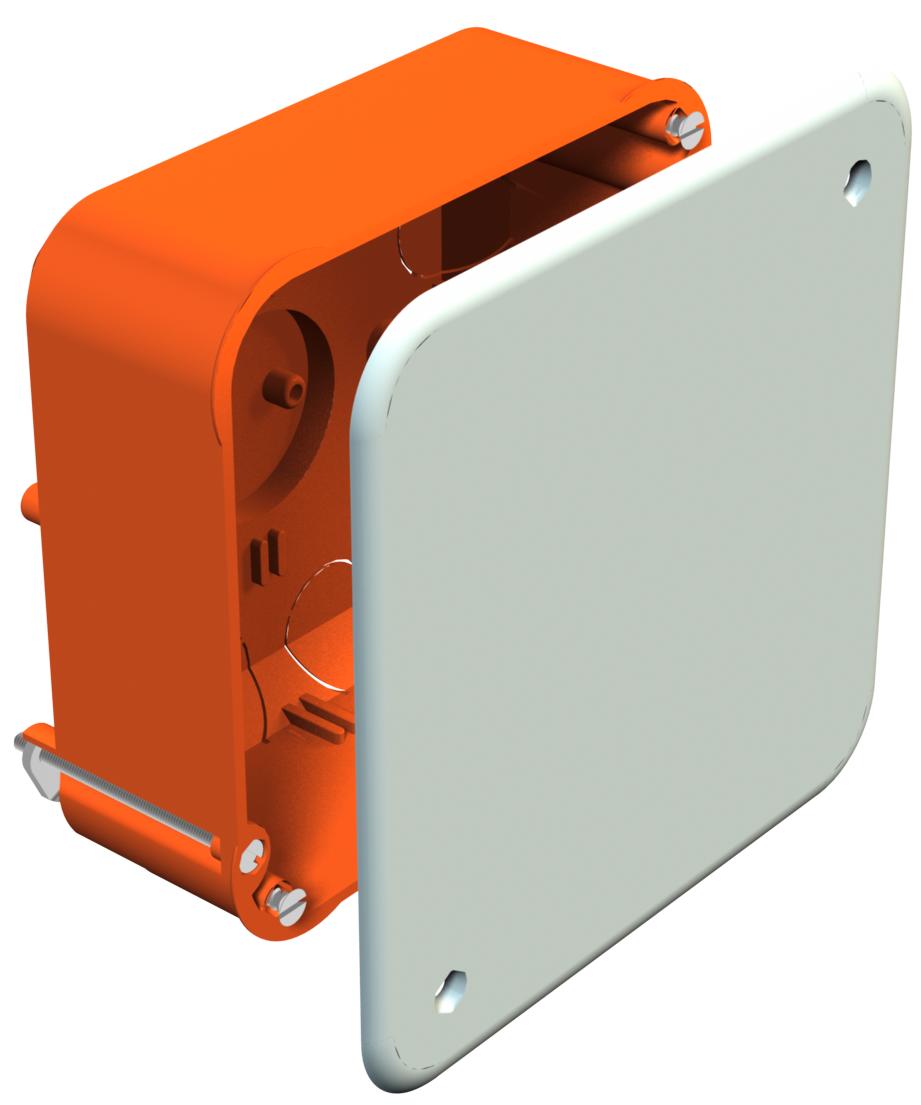

Cavity wall connection box

Item no. 2003449 | EAN 4012195033011

Item no. / Types	2003449 / HV 100 KD

Height	50 mm

for pipe diameter	20 mm

No. of entries	20

Product description

Product description

Cavity wall connection box for use in cavity walls with an installation depth of at least 50 mm and a plate thickness of 7-35 mm. With white cover and cover screws. Suitable for installation of standard rails (hat and support rails) for series terminals.

• 8 entries of Ø 20 mm

• 8 entries for NYM cables 3 x 1.5 mm²

• 4 entries for data cables (extra-low voltage)
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	no
Colour	Orange
Cover	Not transparent
Cover fastening	Screwed
Dimension	105x105x50
Entries	20
Entry from rear	yes
Equipment	Without
Flame-resistant	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C
Floor height, min.	50 mm
for pipe diameter	20 mm
Halogen-free	yes
Height	50 mm
Impact-resistant	no
Length	105 mm
Maintain electrical functions	Without
Material	Polypropylene

Max. Conductor cross-section	4 mm²
No. of entries	20
Nominal cross-section, max.	4 mm²
Nominal cross-section, min.	2,5 mm²
Protection rating	IP30
Rated voltage	400 V
Sealable	no
Shape	Square
Suitable for plate thickness, max.	35 mm
Suitable for plate thickness, min.	7 mm
Support	Without
Type of housing penetration	Pre-marking
Type of insertion…	NYM cables, data cables and corrugated pipes
Width	105 mm
With bolts	yes
With nail strap	no
With screening	no
