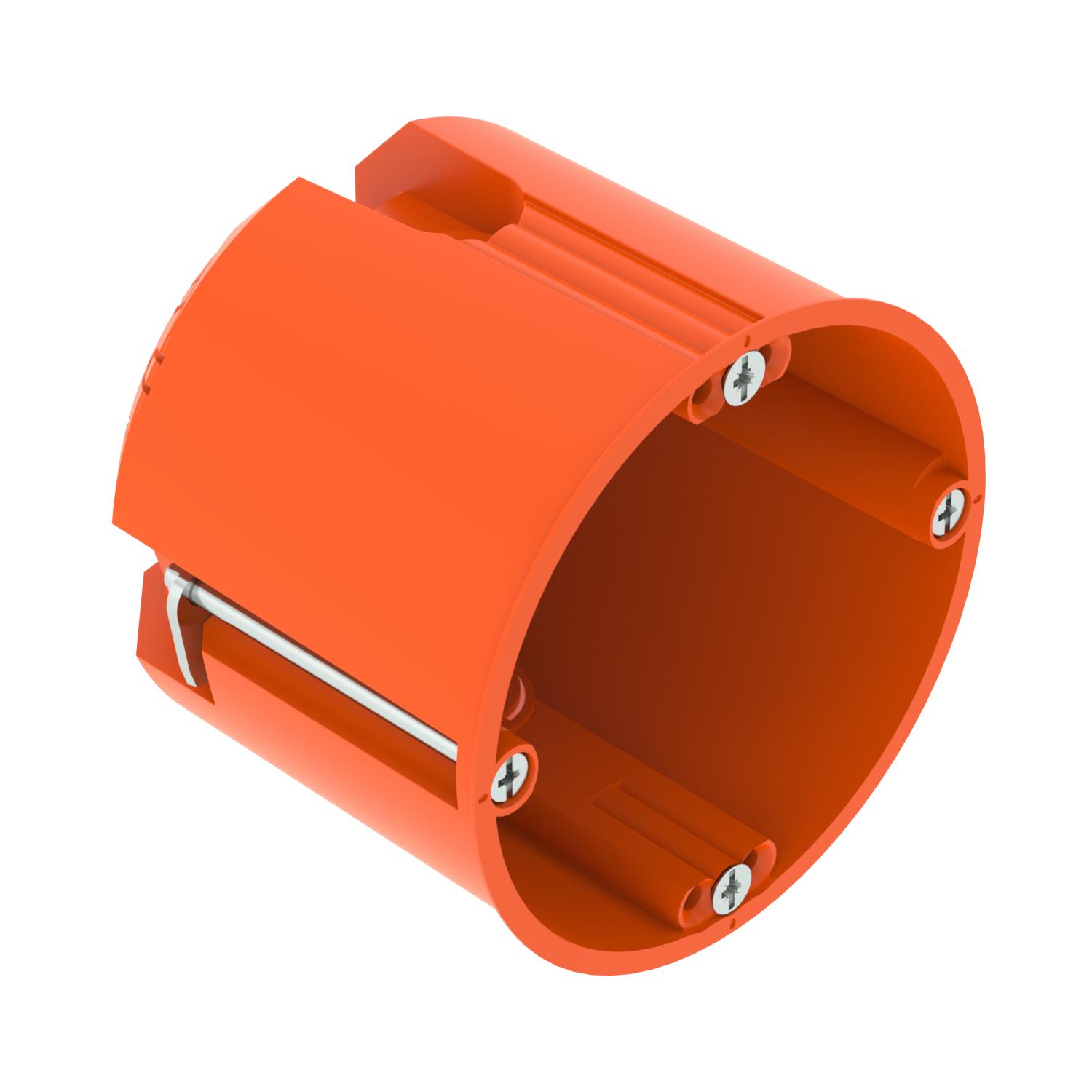

Cavity wall device connection box 61

Item no. 2003804 | EAN 4012196687084

Item no. / Types	2003804 / HG 61

Height	61 mm

Diameter	68 mm

Milling hole diameter	68 mm

for pipe diameter	20/25 mm

No. of entries	10

Product description

Product description

Cavity wall device box for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5-40 mm.

• 2 x 3 screw domes

• Device screws, clamping straps

• 2 combination pipe entries of Ø 20 and 25 mm

• 4 entries for NYM cables 3 x 1.5 mm

• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²

• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²

• Connection with other device boxes via connector, type ZH 11-V

Delivery accessories: 10 x connectors, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	no
Cable entries 3 x 1.5 mm²	4
Cable entries 3 x 2.5 mm² / 5 x 1.5 mm²	2
Cable entries 5 x 2.5 mm² / 7 x 1.5 mm²	2
Cable entries for low voltages	2
Colour	Orange
Cover	Without
Cover fastening	Screws ,
CO₂ Footprint (GWP) Cradle-to-Gate	0,104 kg CO₂e / 1 Piece
Device fixing	Screws ,
Diameter	68 mm
Dimension	Ø68mm, H61mm
Flame-resistant	Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	61 mm

Impact-resistant	yes
Material	Polypropylene
Milling hole diameter	68 mm
No. of entries	10
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Number of switch boxes	1
Protection rating	IP30
Rated voltage	400 V
Shape	Round
Suitable for plate thickness, max.	40 mm
Suitable for plate thickness, min.	5 mm
Support	Connector
Type of housing penetration	Break-out opening
Type of insertion…	NYM cables, data cables and corrugated pipes
With bolts	yes

All types

All types

Types	Height	Diameter	Milling hole diameter	for pipe diameter	No. of entries	Item no.	Quantity	SSU
HG 61	61 mm	68 mm	68 mm	20/25 mm	10	2003804	piece	25 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
HW Compensation ring	ZH 68-AR	2003840	piece	500 piece
HW Compensation ring 10	ZH 10-AR	2003842	piece	1000 piece
HW Compensation ring 20	ZH 20-AR	2003844	piece	600 piece
HW Connector for cavity wall boxes	ZH 11V	2003846	piece	10 piece
Inner fitting, cover cavity wall device box	ZH 60-ID	2003848	piece	500 piece
