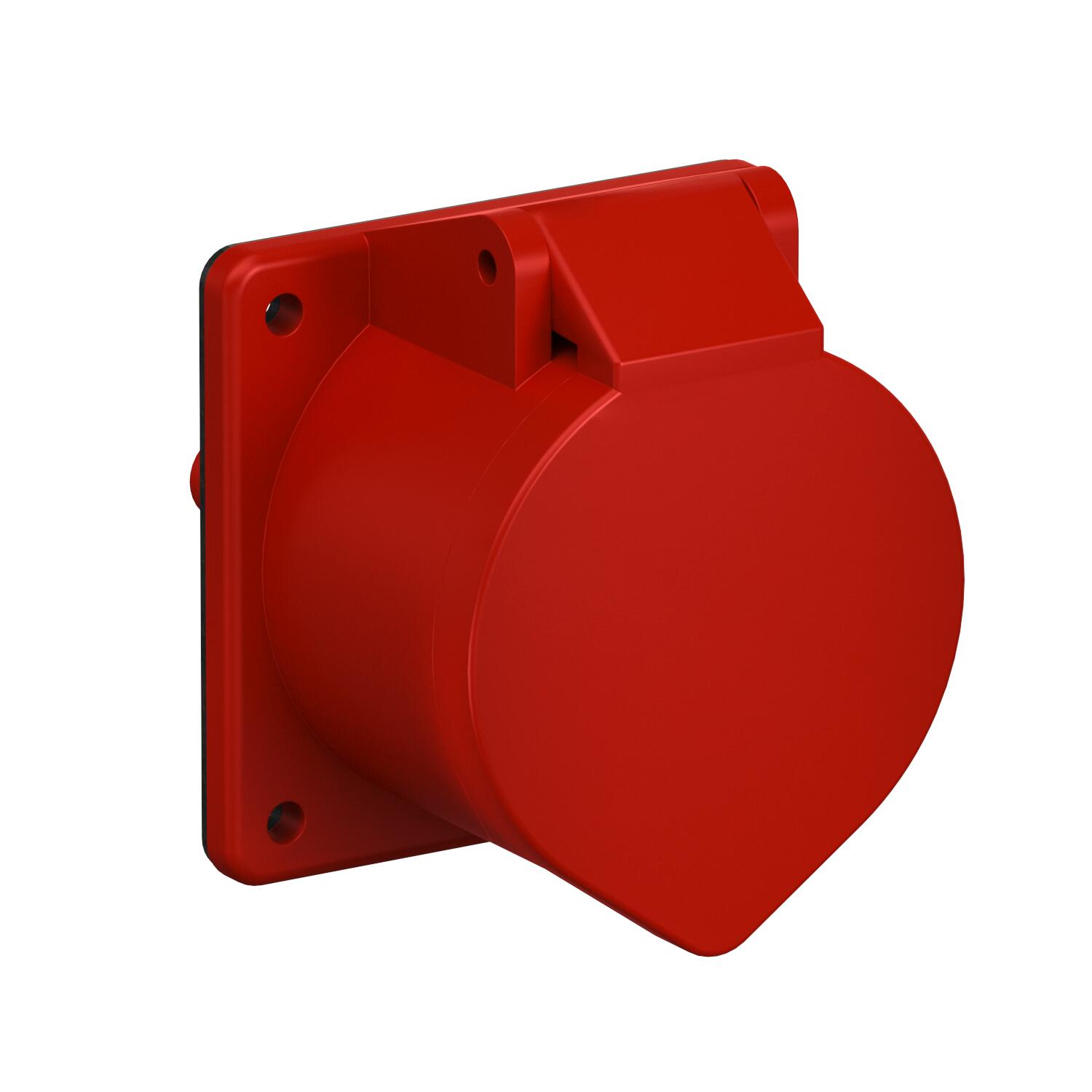

CEE connection unit, 16 A

Item no. 6109874 | EAN 4012195125594

Product description
Product description
CEE socket with 60 mm fastening track, 3-pin + N + PE, 400 V, 16 A, 6 h.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable entry Other
Connection technology Screwless terminal

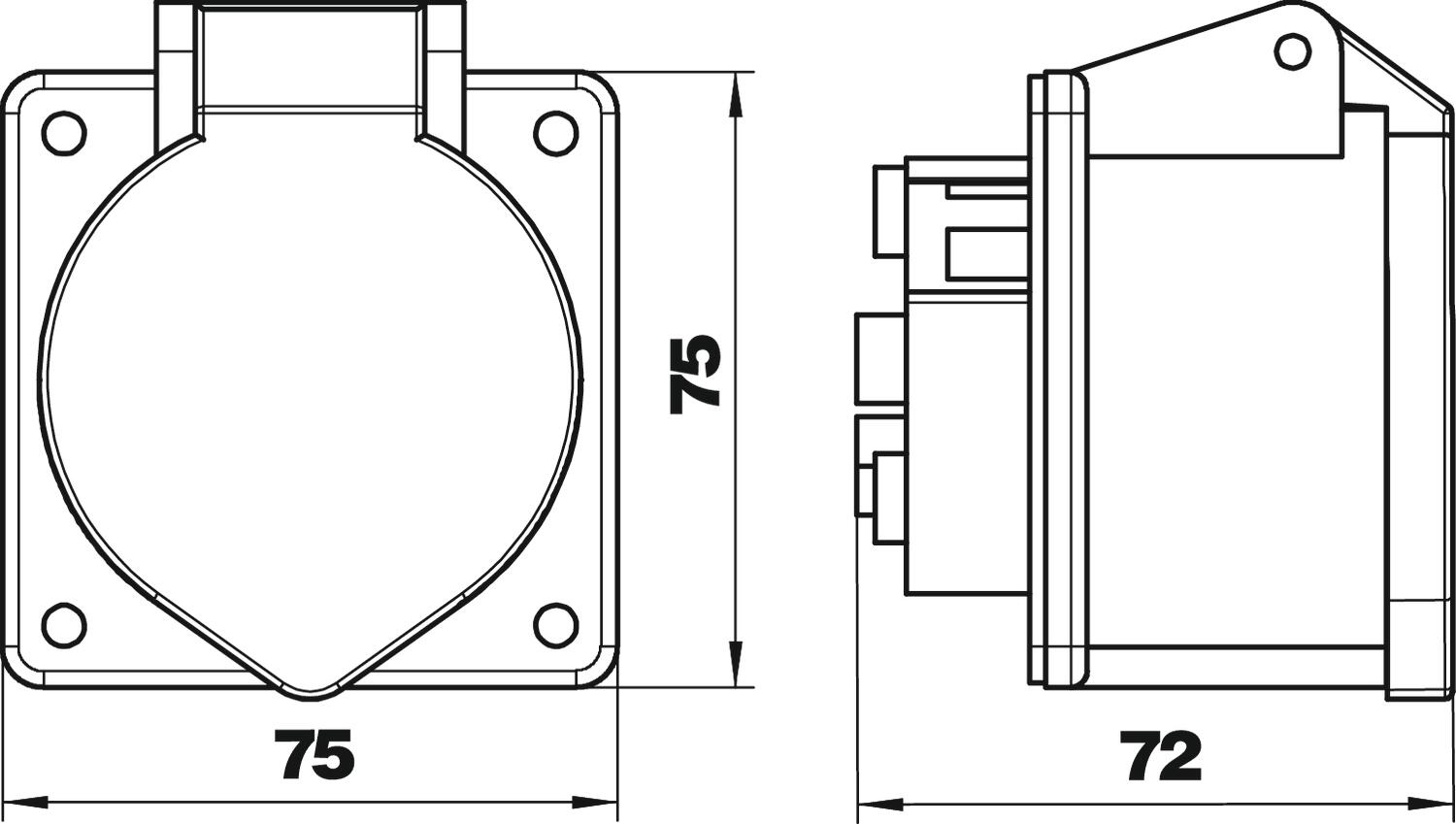

Dimension 75x75x72
Direction of insertion Straight
Drill hole spacing, horizontal 60 mm
Drill hole spacing, vertical 60 mm
Flange dimension, horizontal 75 mm
Flange dimension, vertical 75 mm
Height 75 mm
Length 72 mm
Military version no
Nominal current 16 A
Nominal voltage 400 V
Pole number 5
Protection rating IP44
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Width 75 mm
All types

All types

Types Item no. Quantity SSU
CEE-16A 6109874
1 piece
