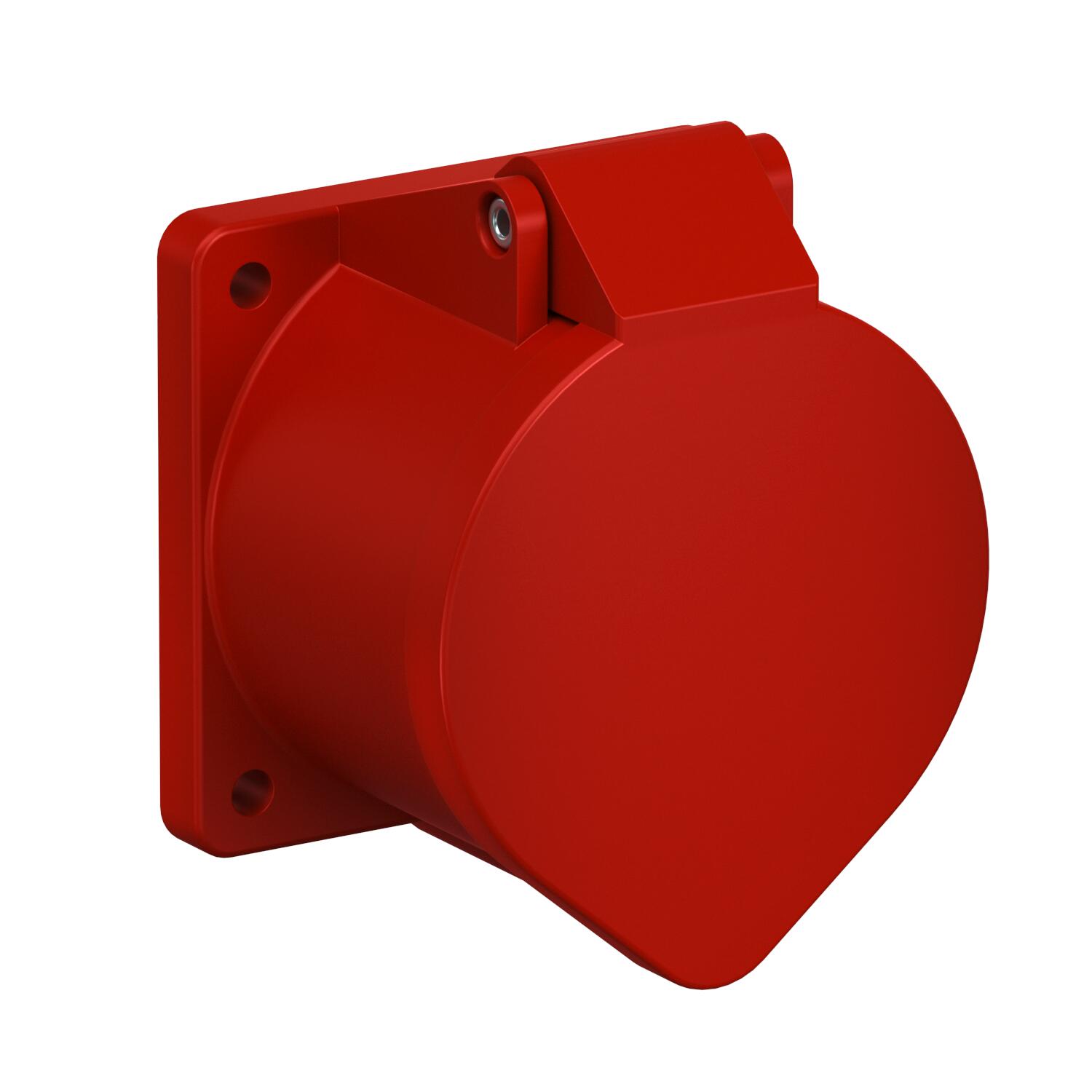

CEE connection unit, 32 A
Item no. 6109876 | EAN 4012195125600
- Product description
-
Product descriptionCEE socket with 60 mm fastening track, 3-pin + N + PE, 400 V, 32 A, 6 h.
-
- Technical data
-
Technical data

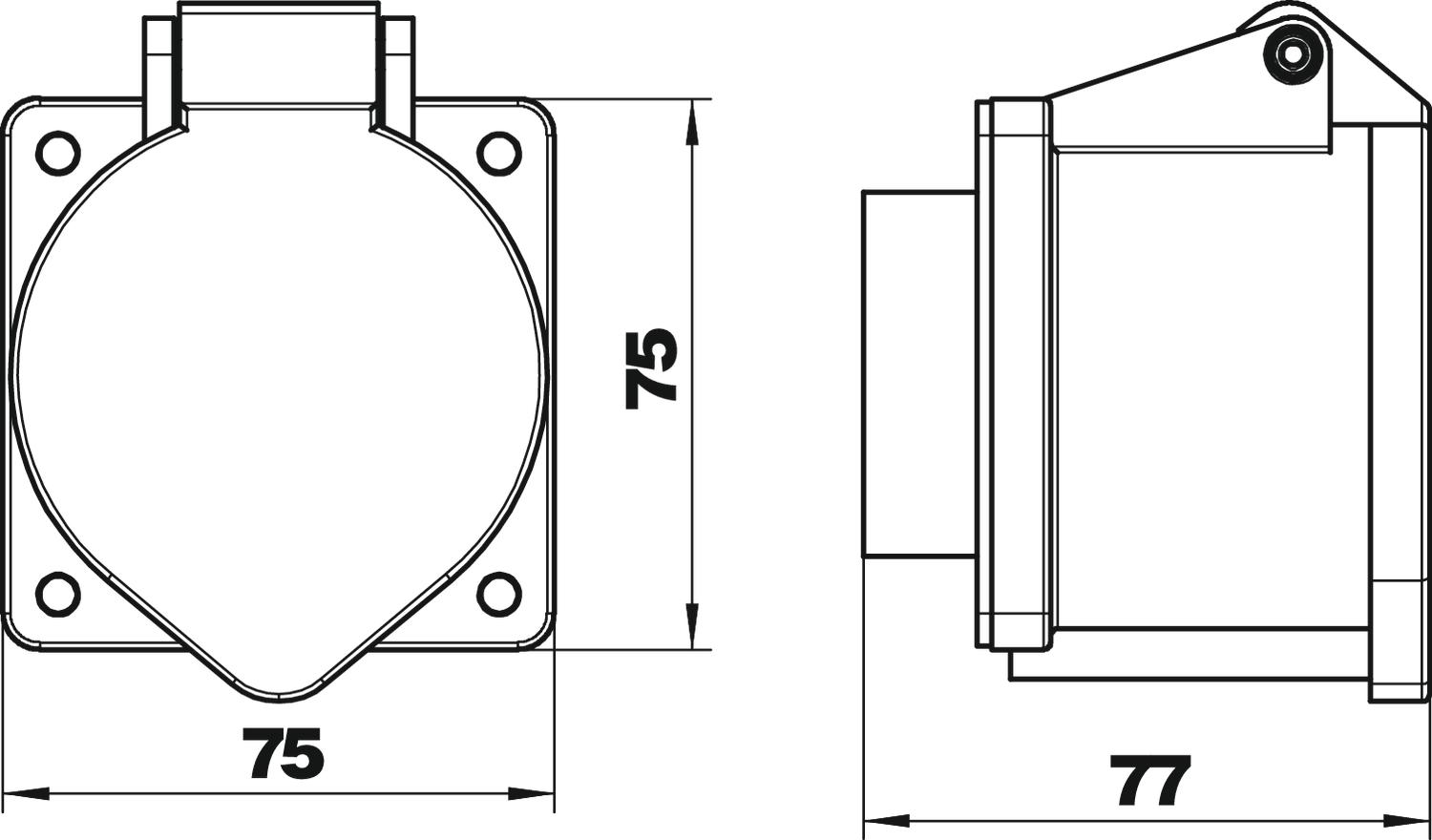

Cable entry Other Connection technology Screw terminal Dimension 75x75x72 Direction of insertion Straight Drill hole spacing, horizontal 60 mm Drill hole spacing, vertical 60 mm Flange dimension, horizontal 75 mm Flange dimension, vertical 75 mm Height 75 mm Length 77 mm Military version no Nominal current 32 A Nominal voltage 400 V Pole number 5 Protection rating IP44 Voltage according to EN 60309-2 400 V (50+60 Hz) red Width 75 mm - All types
- Downloads
-
Data sheet CEE-32A / 6109876 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity CEE-32A / 6109876 , 0.13MB , pdfREACH Declaration of conformity CEE-32A / 6109876 , 0.12MB , pdfRoHS Declaration of conformity CEE-32A / 6109876 , 0.12MB , pdf
