Ceiling bracket, trapezoidal A2
Item no. 6357516 | EAN 4012195523673
- Product description
-

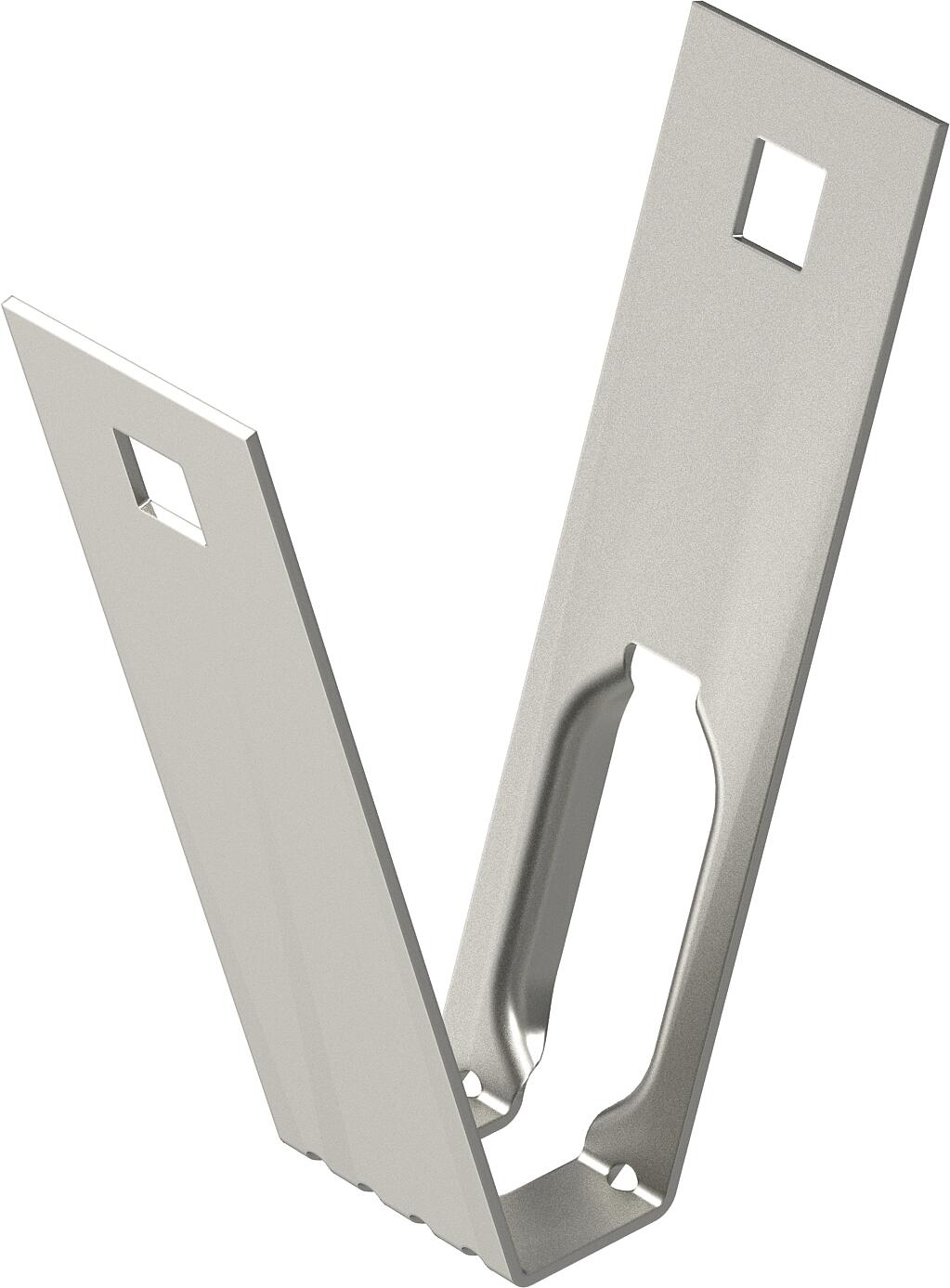

Product descriptionTrapezoidal fastening for suspended mounting of cable support systems on standard trapezoidal ceilings.
When using the holes provided, the trapezoidal fastening can be mounted onto a trapezoidal profile width of up to approx. 80 mm. Fastening takes place with the type TPB R lock or a hexagonal bolt of type SKS 10x110.
-
- Technical data
-
Technical data

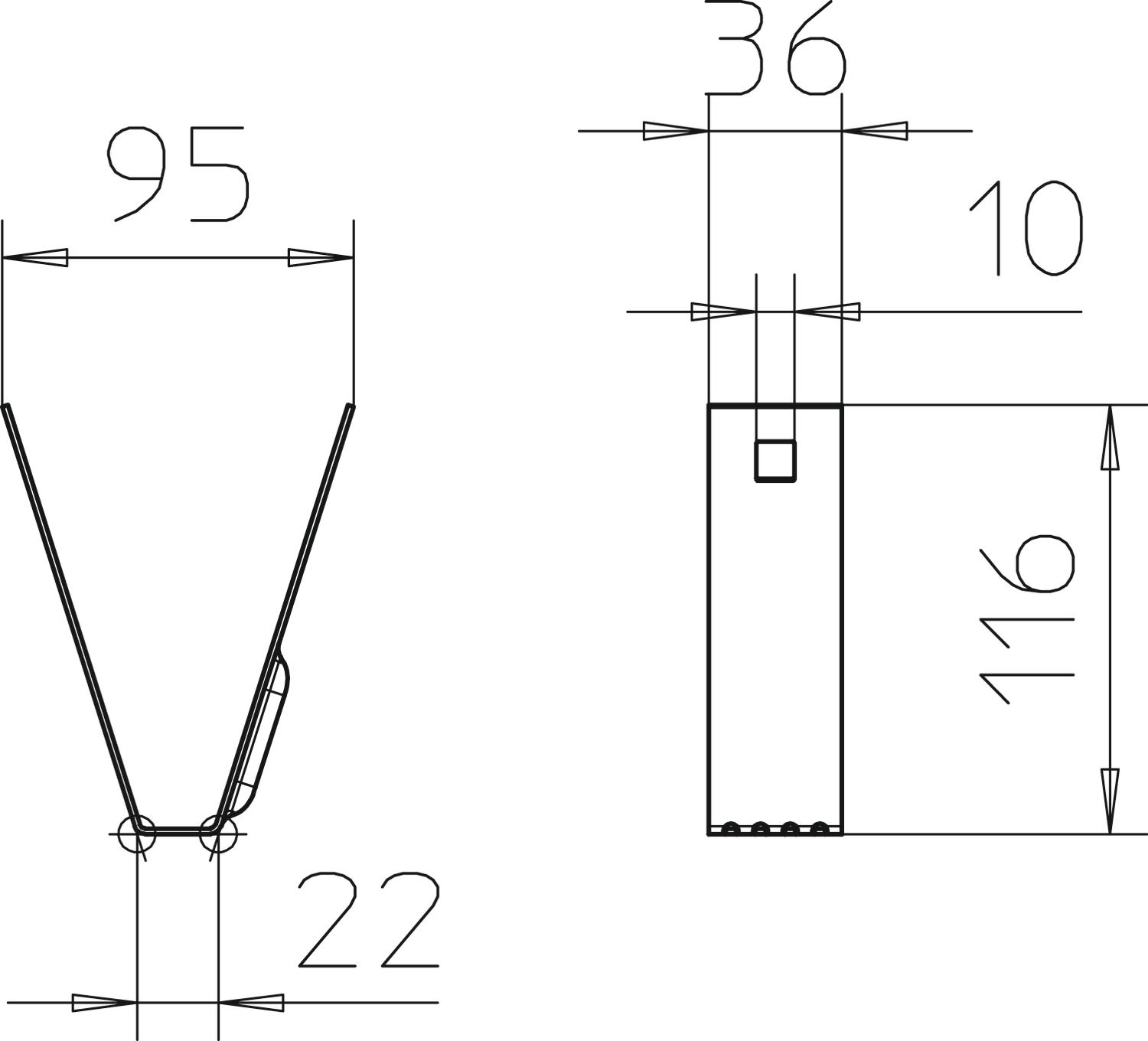

Adjustable yes Colour stainless steel Dimension 100x116 F in kN 0,8 kN Height 116 mm Hinged no Length 36 mm Maintain electrical functions no Material Stainless steel Material thickness 1,5 mm Rustproof steel, pickled yes Suitable for metric threaded rod 10 Surface Bright, treated Width 100 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Splint for trapezoidal ceiling bracket A2
TPB R A2 6357538 100 piece - Downloads
-
