Ceiling hook 120 | 0.2 |
morepic-1 morepic-2

Ceiling hook

Item no. 3450120 | EAN 4012195304692

Product description

Product description

Ceiling hook with rolled wood screw thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives

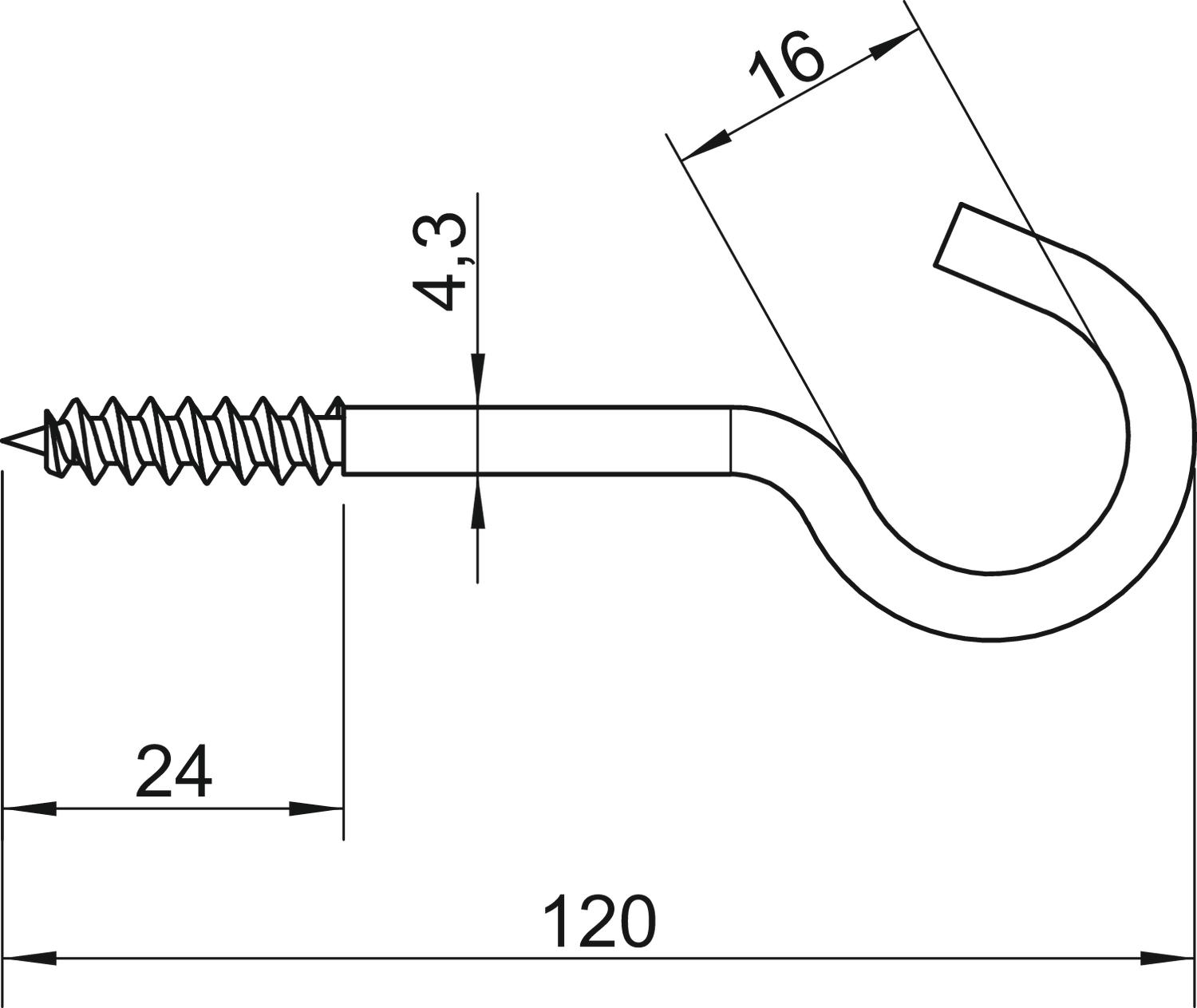

Technical data

Technical data

Breaking load 0,2 kN
Dimension 4,2x120mm
Dimension L 120 mm
Dimension L1 24 mm
hook diameter 16 mm
Length 120 mm
Material Steel
Material diameter 4,3 mm
Plastic-covered no
Surface Electrogalvanized
Thread length 24 mm
All types

All types

Types Dimension L Breaking load Item no. Quantity SSU
915 3.9x50 G 50 mm 0.15 kN 3450058
100 piece
915 3.9x60 G 60 mm 0.15 kN 3450066
100 piece
915 3.9x70 G 70 mm 0.15 kN 3450074
100 piece
915 3.9x80 G 80 mm 0.15 kN 3450082
100 piece
915 3.9x90 G 90 mm 0.15 kN 3450090
100 piece
915 3.9x100 G 100 mm 0.15 kN 3450104
100 piece
915 4.3x120 G 120 mm 0.2 kN 3450120
100 piece
