Ceiling hook 90 | 0.4 | M5

morepic-1

morepic-2

Ceiling hook

Item no. 3470148 | EAN 4012195309253

Item no. / Types

Dimension L

Breaking load

Thread

Product description

Product description

Ceiling hook M5 x 125 mm

Technical data

Technical data

Breaking load	0,4 kN
Dimension	M5x125mm
hook diameter	16 mm
Material	Steel

Plastic-covered	no
Surface	Electrogalvanized
Thread	M5
Thread length	90 mm

Dimensions

Dimension d Ø	4,3 mm
Dimension L	90 mm

Length	125 mm

All types

All types

Types	Dimension L	Breaking load	Thread	Item no.	Quantity	SSU
867 M5X125 G	90 mm	0.4 kN	M5	3470148	piece	100 piece
867 M6X 95 G	55 mm	0.8 kN	M6	3470210	piece	100 piece
867 M6X125 G	85 mm	0.8 kN	M6	3470237	piece	100 piece

Downloads

Data sheet 867 M5X125 G / 3470148 , 0.18MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

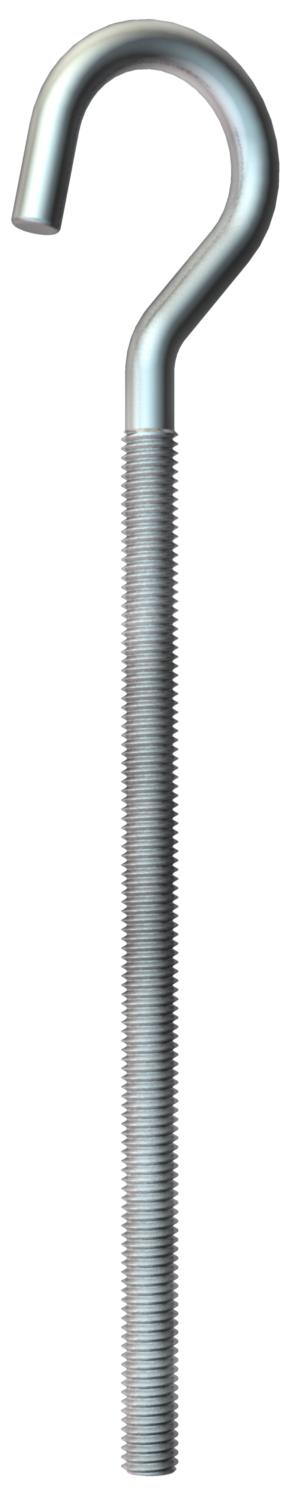

Product graphic 867 M5X125 G / 3470148, 28.66 kB, jpg

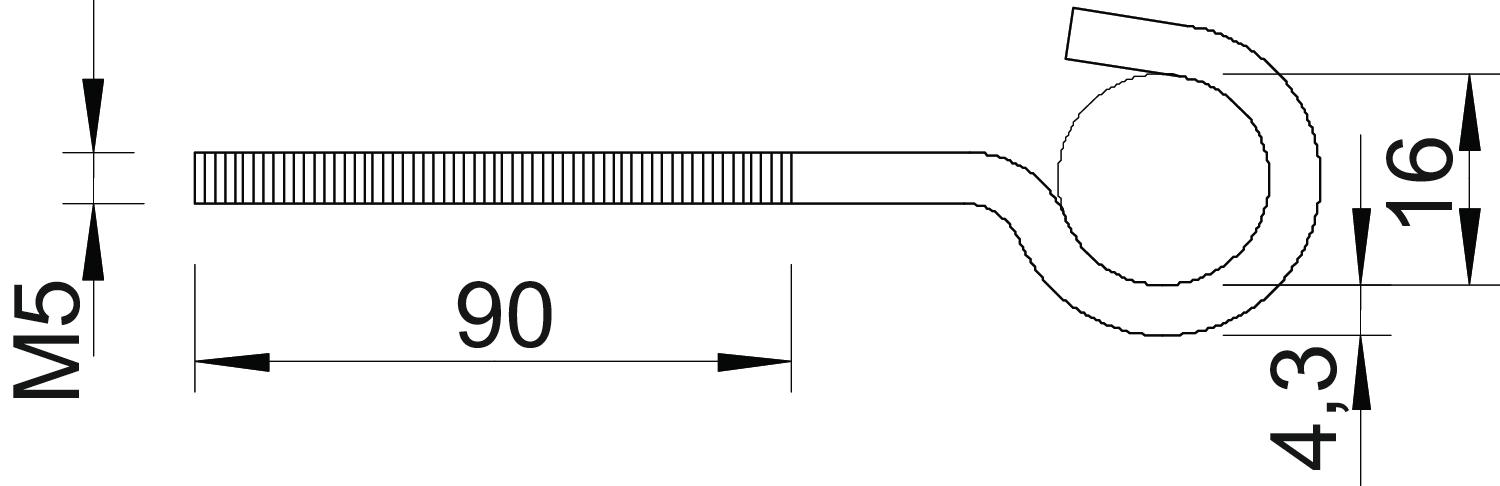

Scale drawing 867 M5X125 G / 3470148, 41.12 kB, jpg

867 M5X125 G / 3470148
