Ceiling profile clamp, with threaded bolt M6x16
morepic-1 morepic-2

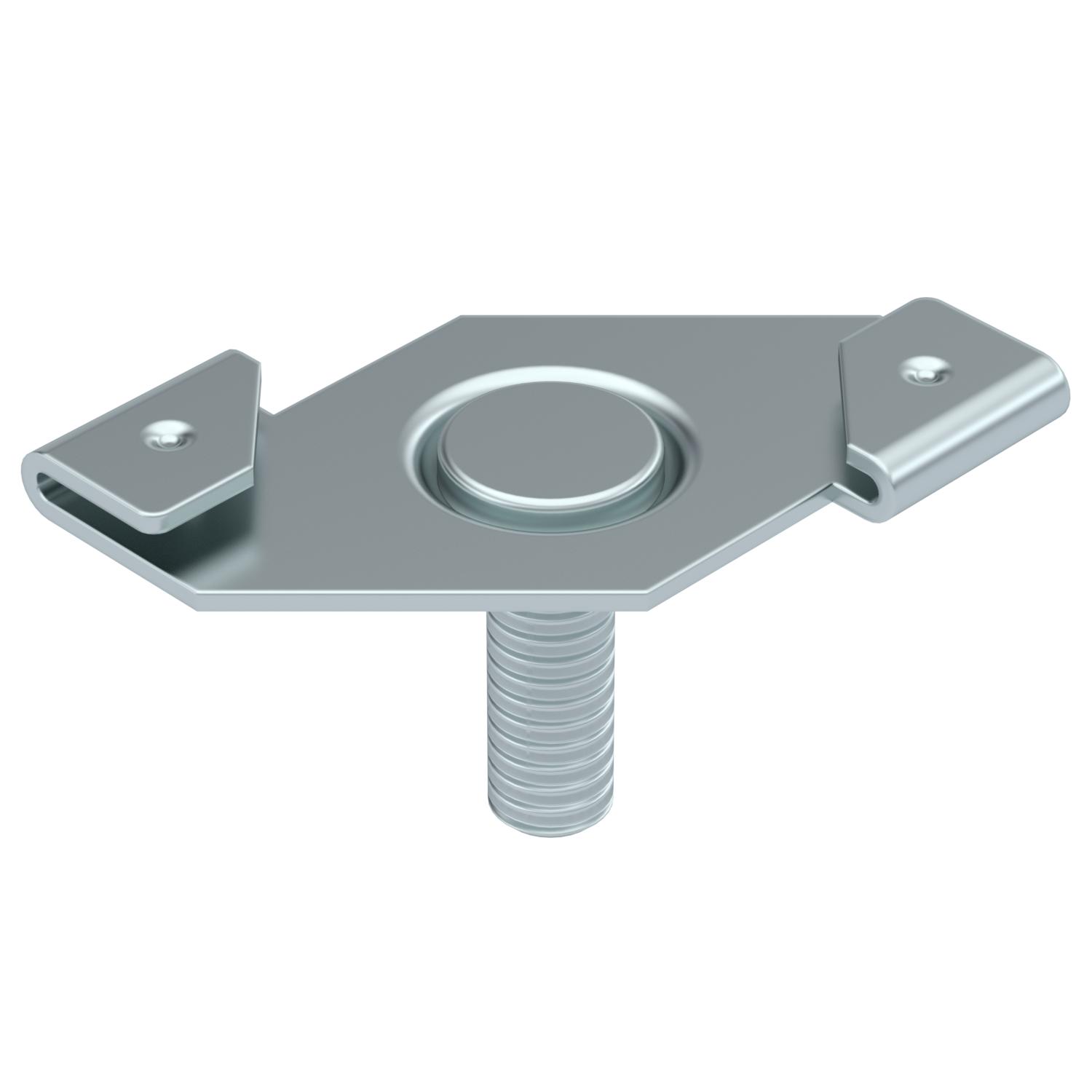

Ceiling profile clamp, with threaded bolt

Item no. 1488603 | EAN 4012197380649

Product description
Product description
Ceiling profile clamp with threaded bolt for individual mounting solutions on suspended ceilings. Suitable for support profiles with a width of 25 mm, fastening by clamping
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 0,22 kN
Connection type/component Thread

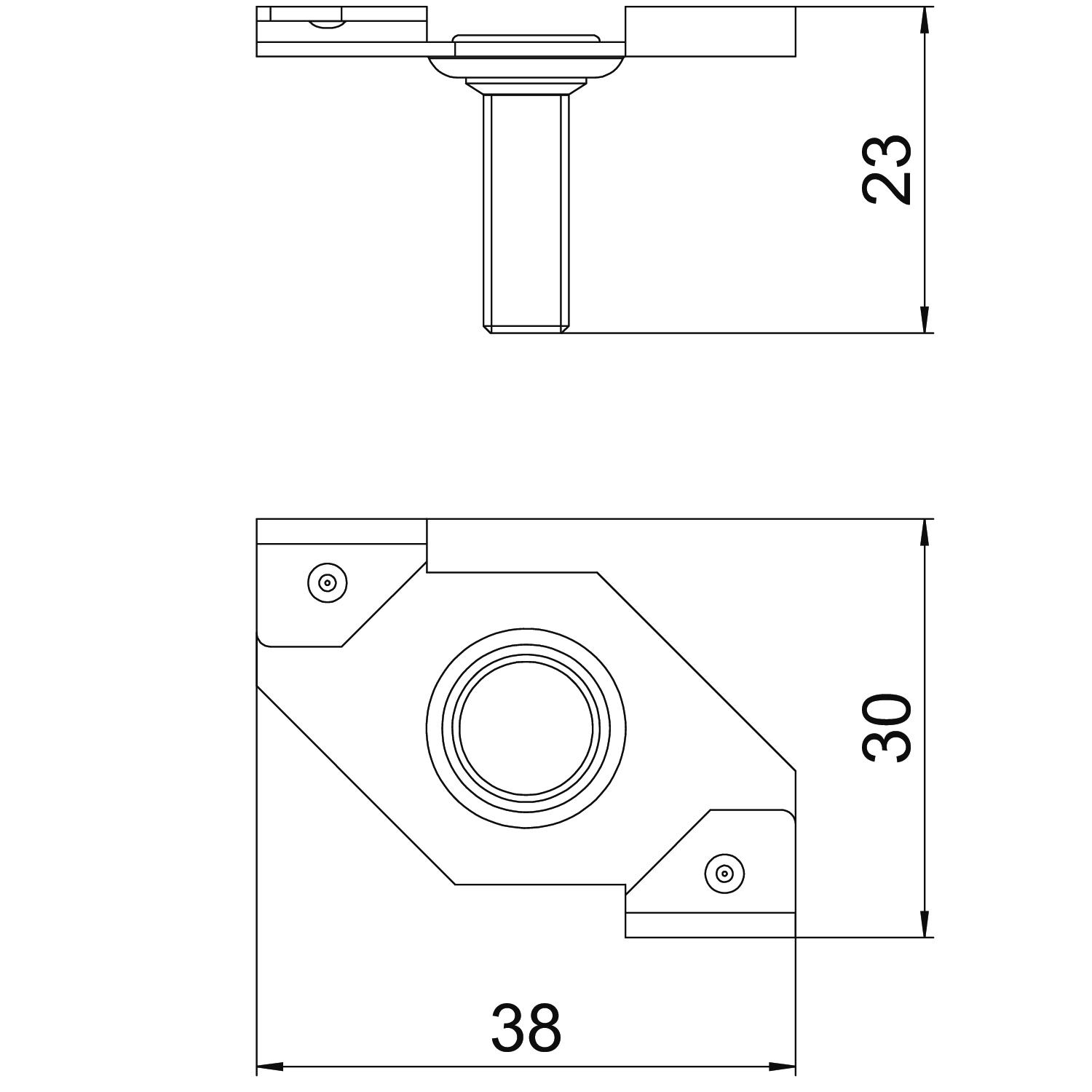

Dimension M6x16mm
Dimension H 23 mm
Fastening type Clamp
Flange thickness F max. 1,5 mm
Flange thickness F min. 1 mm
Height 23 mm
Hinge, adjustable no
Hinged no
Length 38 mm
Material Steel
Surface Zinc slat
Thread M6x16
Thread metric 6
Width 30 mm
All types

All types

Types Thread Item no. Quantity SSU
SPC M6x9 M6x9 1488601
100 piece
SPC M6x16 M6x16 1488603
100 piece
SPC M6x25 M6x25 1488605
100 piece
