- Product description
-
Product description

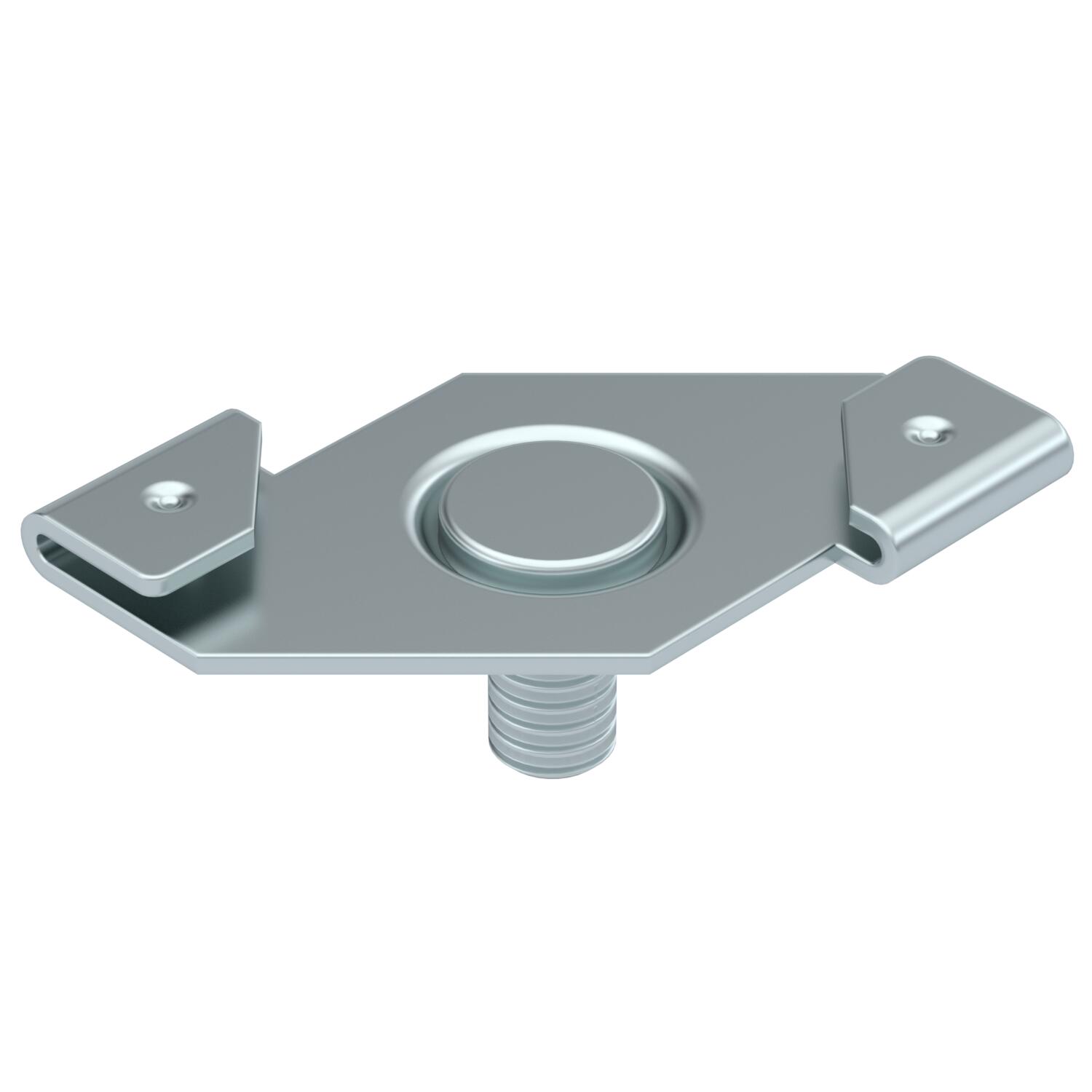

Ceiling profile clamp with threaded bolt for individual mounting solutions on suspended ceilings. Suitable for support profiles with a width of 25 mm, fastening by clamping
- Technical data
-
Technical data
Connection type/component Thread Dimension M6x9mm Fastening type Clamp Flange thickness F max. 1,5 mm Flange thickness F min. 1 mm Hinge, adjustable no Hinged no Material Steel Surface Zinc slat Thread M6x9 Thread metric 6 Dimensions

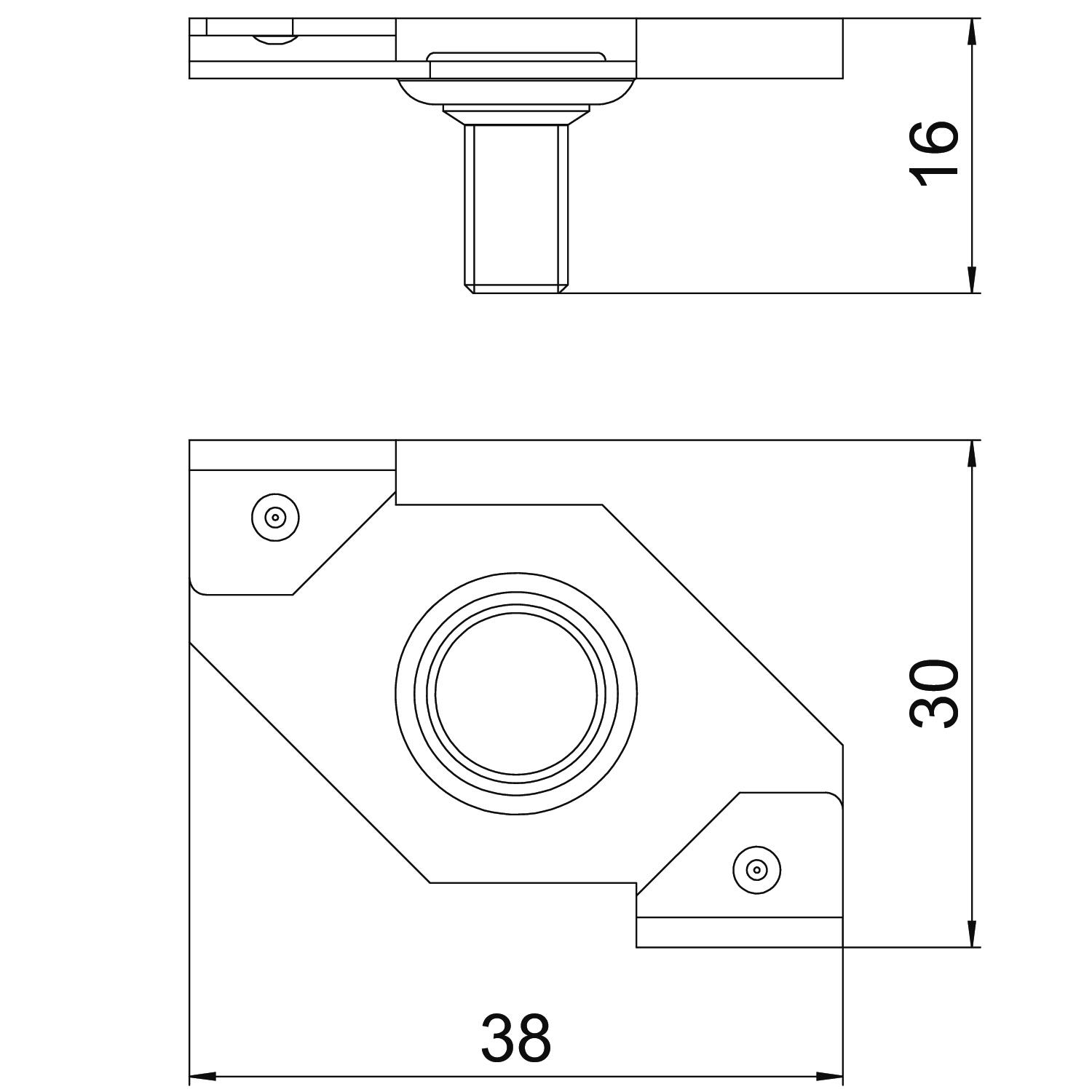

Dimension H 16 mm Height 16 mm Length 38 mm Width 30 mm - All types
- Downloads
-
Data sheet SPC M6x9 / 1488601 , 0.18MB , pdf
English
