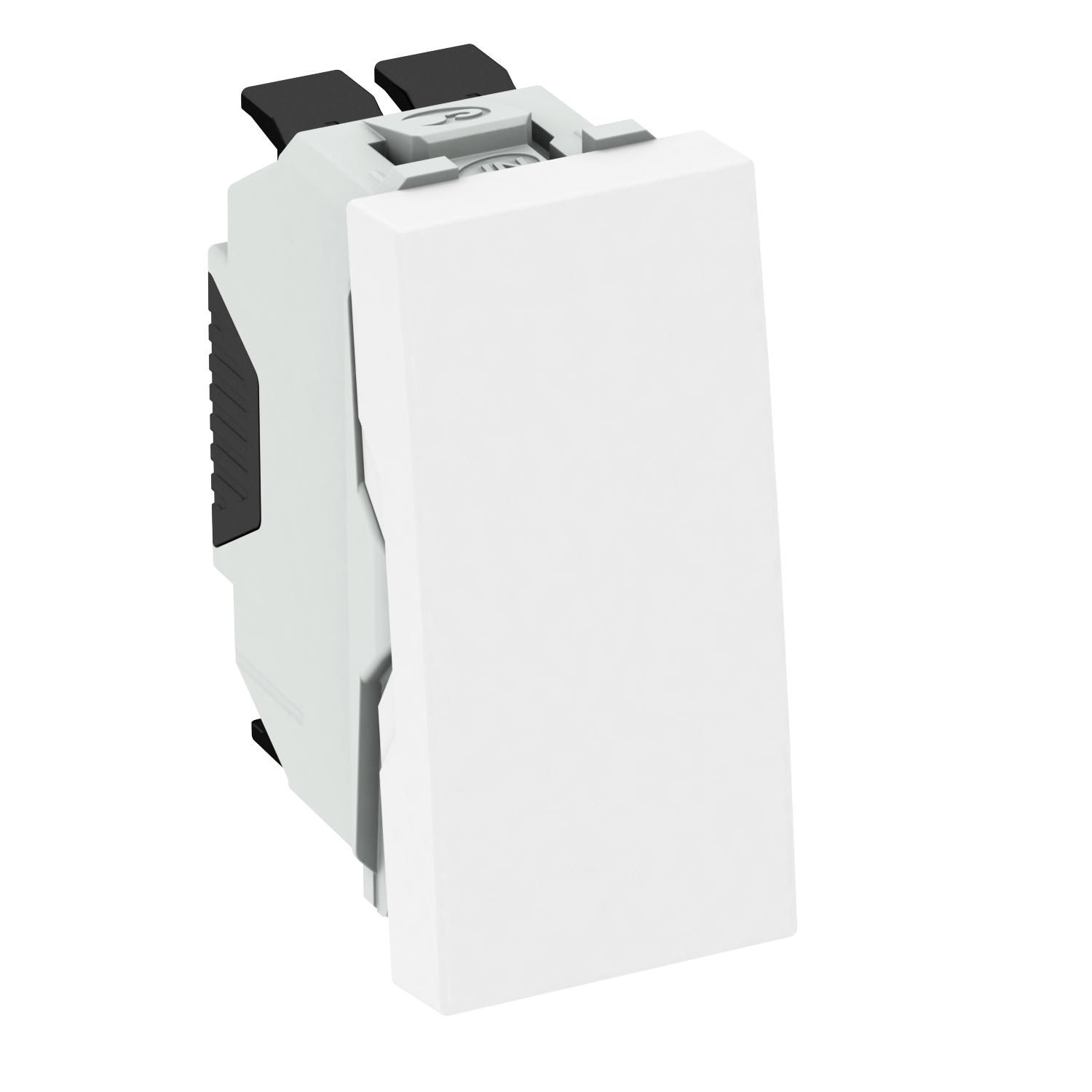

Changeover switch, 1/2 module

Item no. 6120960 | EAN 4012196570966

Product description

Product description

Changeover switch, 1-pin, 10 A, 250 V~, with screwless terminals.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • Installation electrotechnical expertise
Technical data

Technical data

Colour Pure white; RAL 9010

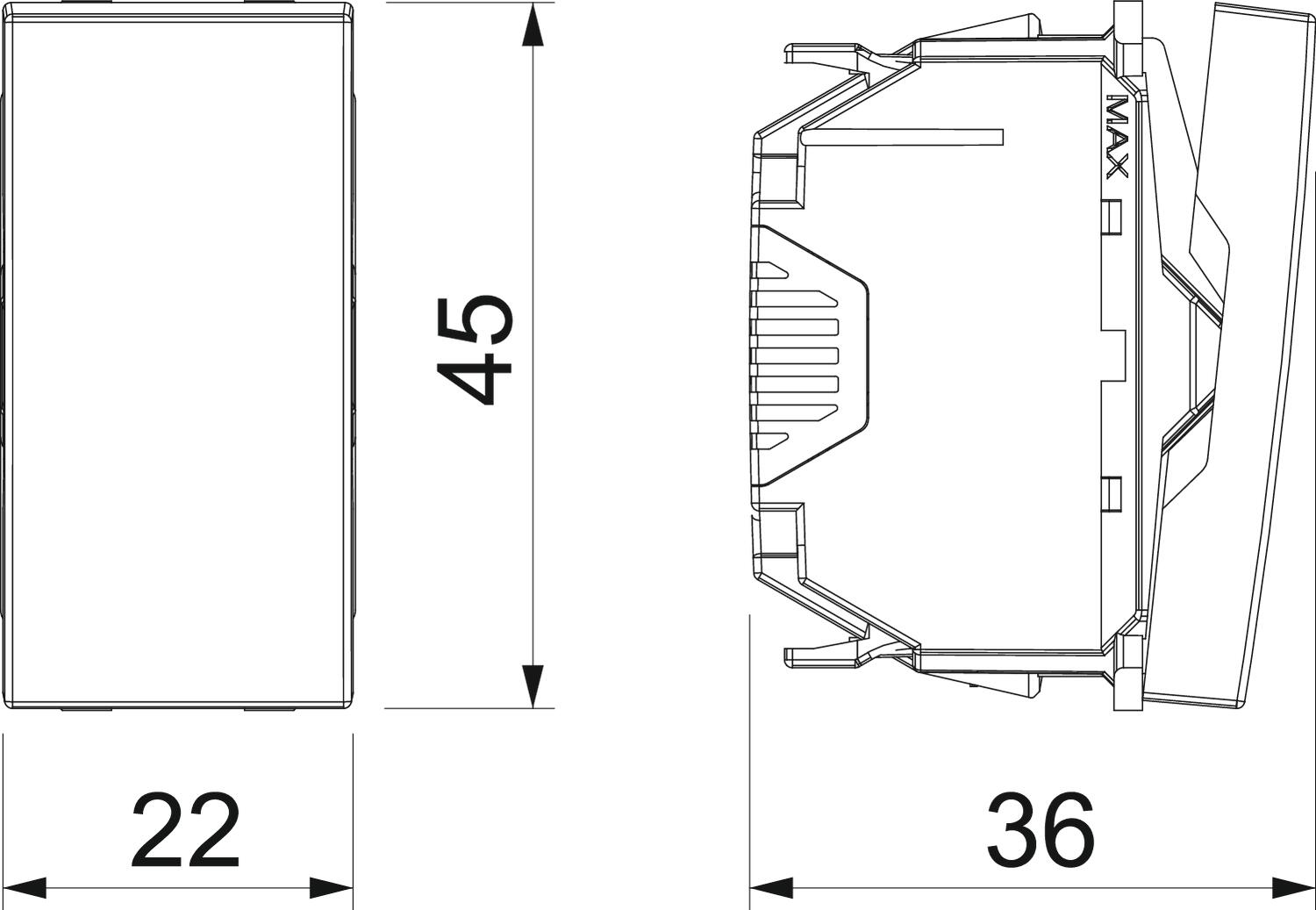

Depth 36 mm
Dimension 10 A, 250 V
Fastening type Lock
Height 45 mm
Material Polycarbonate
Mounting type Device installation duct
Nominal current 10 A
Nominal voltage 250 V
Surface version Matt
Width 22,5 mm
All types

All types

Types Item no. Quantity SSU
TA-WB RW0.5 6120960
1 piece
TA-WB SWGR0.5 6120962
1 piece
TA-WB AL0.5 6120964
1 piece
