Changeover switch, 1 module

Item no. 6120966 | EAN 4012196571024

Product description

Product description

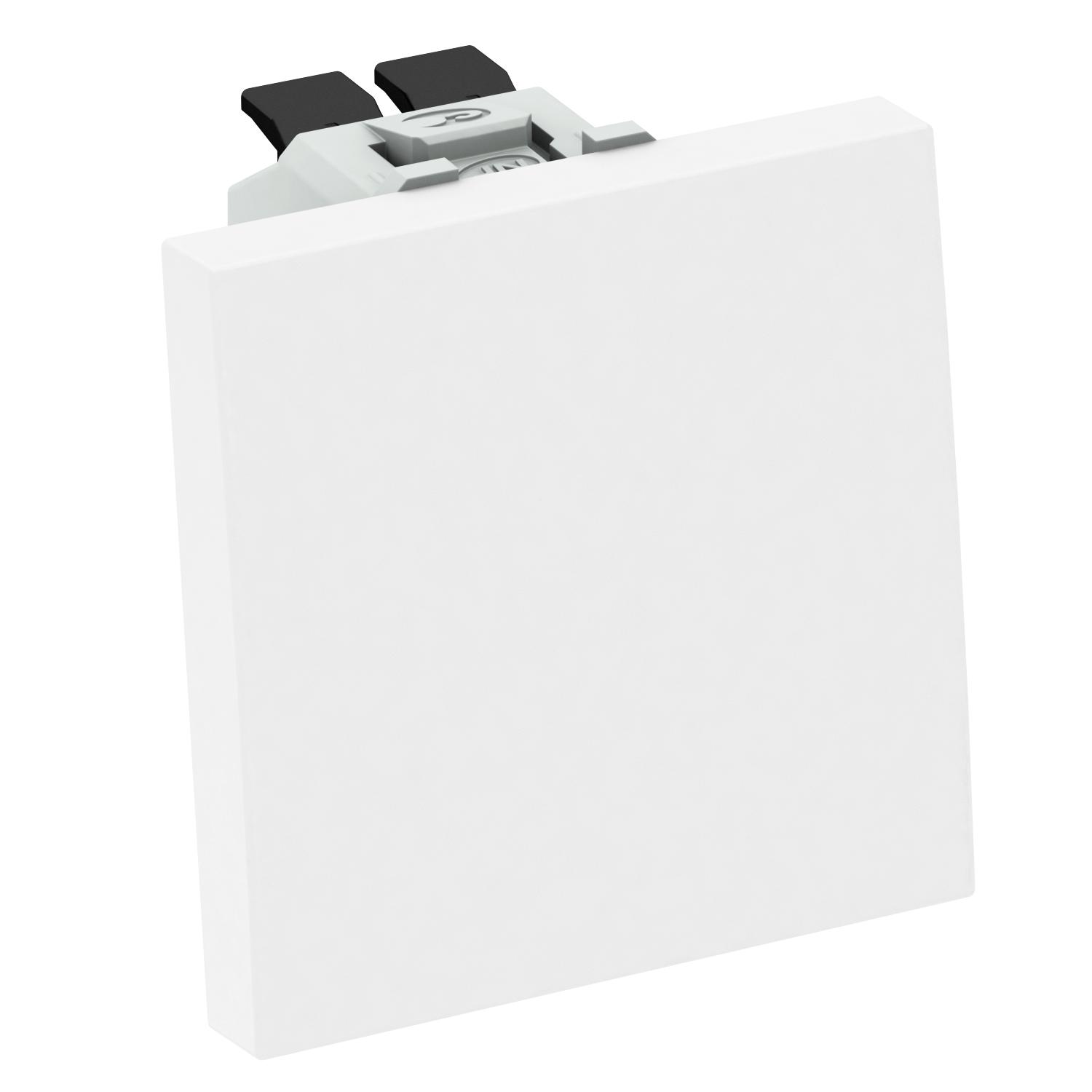

Changeover switch, 1-pin, 10 A , 250 V~, with screwless terminals.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • Installation electrotechnical expertise
Technical data

Technical data

Colour Pure white; RAL 9010
Depth 45 mm
Dimension 10 A, 250 V
Fastening type Lock
Height 36 mm
Material Polycarbonate
Mounting type Device installation duct
Nominal current 10 A
Nominal voltage 250 V
Surface version Matt
Width 45 mm
All types

All types

Types Item no. Quantity SSU
TA-WB RW1 6120966
1 piece
TA-WB SWGR1 6120968
1 piece
TA-WB AL1 6120970
1 piece
Downloads

Download

Declaration of conformity TA-WB RW1 / 6120966 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
