Product description

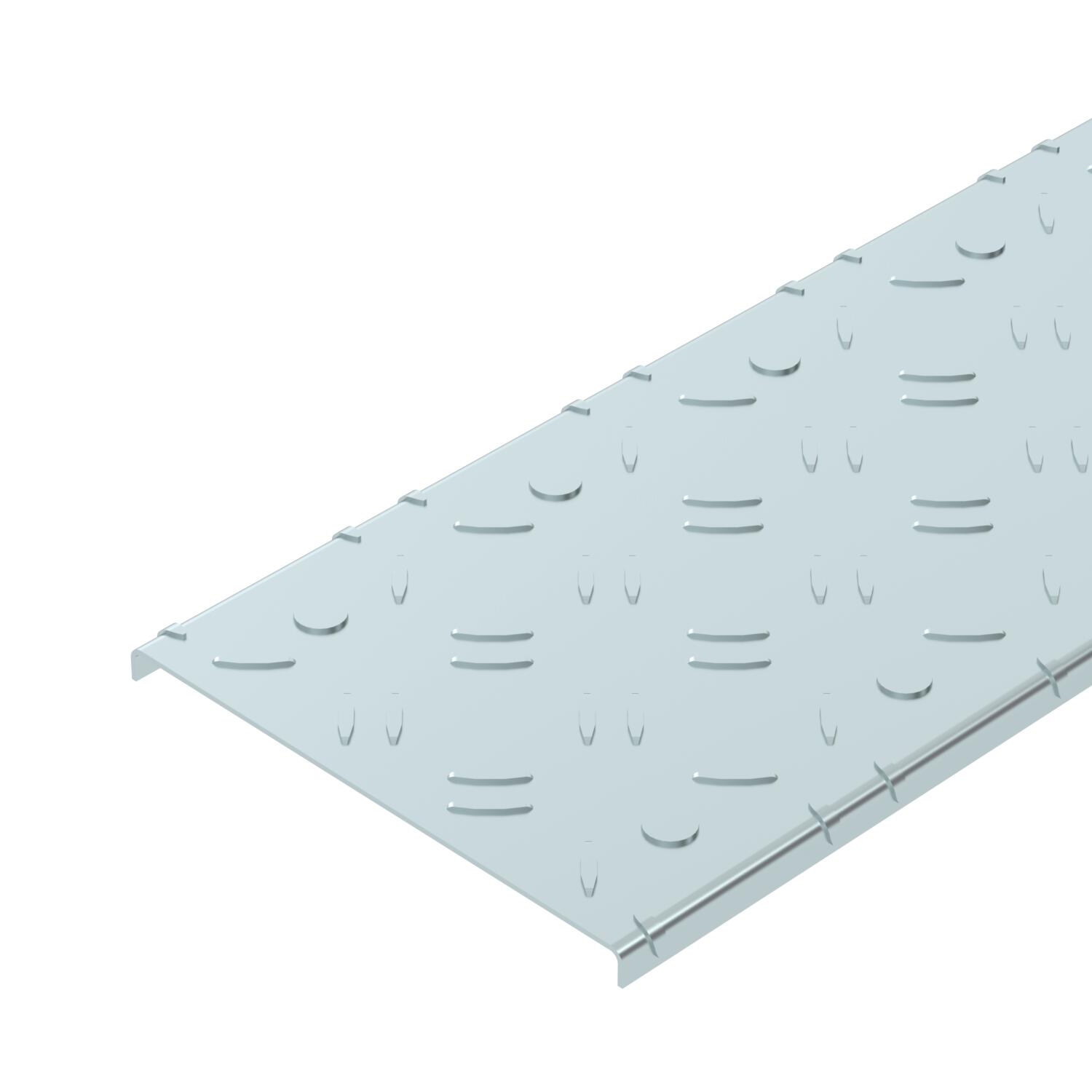

Chequer plate cover for the walkable cable tray system, type BKR.
The cover thickness is comprised of 2.0 mm of strip-galvanised sheet steel and a 1.3 mm chequer height.
Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.
When using covers outdoors, additional measures against the influence of wind must be taken.
- Technical data
-
Technical data

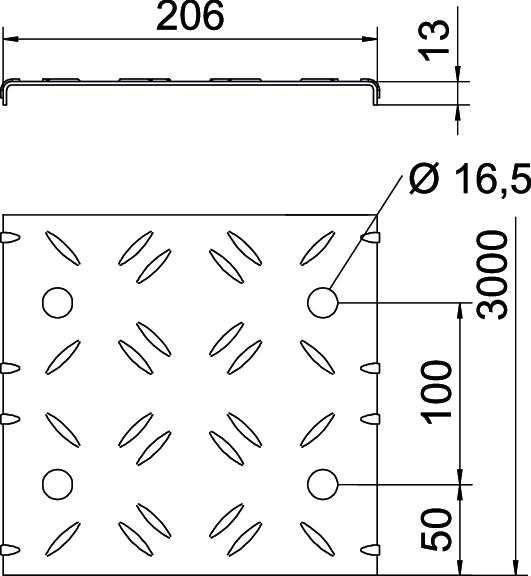

Dimension 200x3000 Dimension b 50 mm Dimension B 200 mm Dimension L 3000 mm Fastening type On top Height 13 mm Length 3000 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Plate thickness 3,3 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Width 200 mm - All types
