- Product description
-
Product description

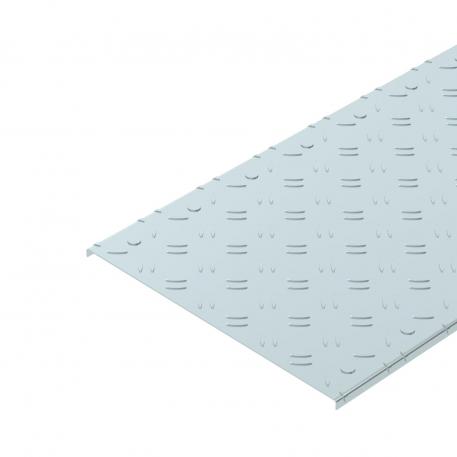

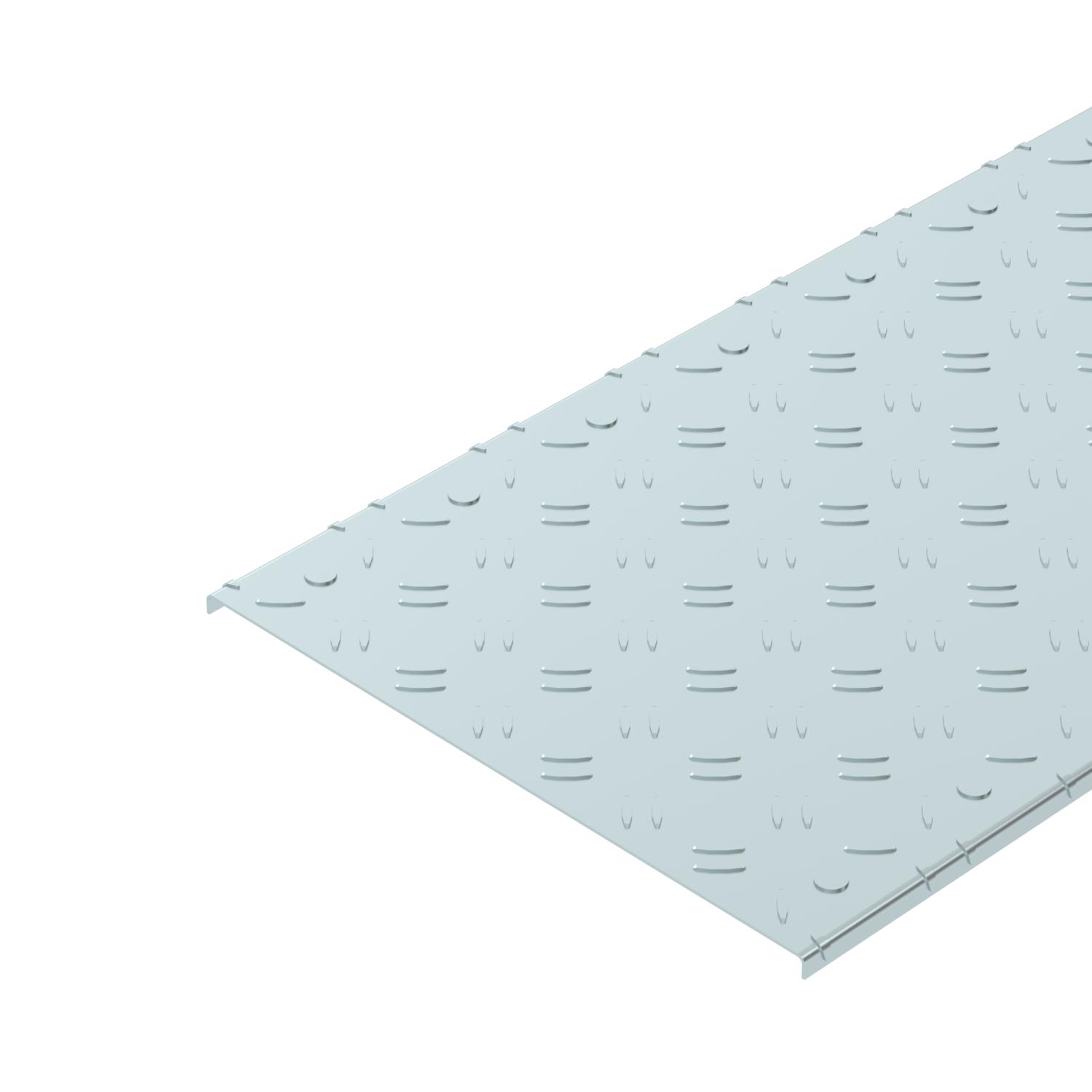

Chequer plate cover for the walkable cable tray system, type BKR.
The cover thickness is comprised of 2.0 mm of strip-galvanised sheet steel and a 1.3 mm chequer height.
Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.
When using covers outdoors, additional measures against the influence of wind must be taken.
- Technical data
-
Technical data

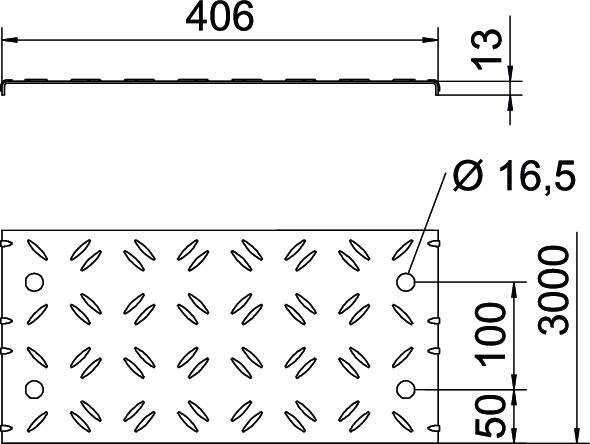

Dimension 400x3000 Dimension b 50 mm Dimension B 400 mm Dimension L 3000 mm Fastening type On top Height 13 mm Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 3,3 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Width 400 mm - All types
- Downloads
-
Data sheet DBKR 400 DD / 6049143 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DBKR 400 DD / 6049143 , 0.10MB , pdfUK Declaration of Conformity DBKR 400 DD / 6049143 , 0.14MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
