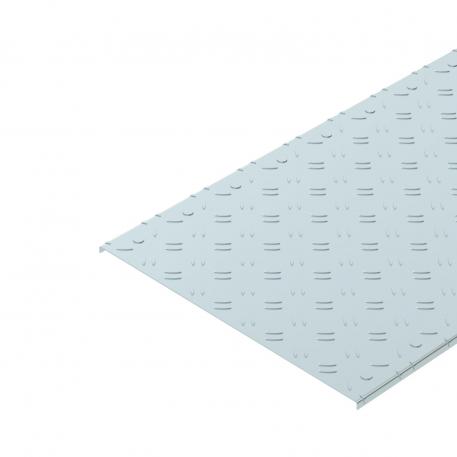

Chequer plate cover DBKR DD 3000 | 500 | 3.3

Chequer plate cover DBKR DD

Item no. 6049144 | EAN 4012197304829

Item no. / Types

Length	3000 mm

Width

Plate thickness	3.3 mm

Product description

Product description

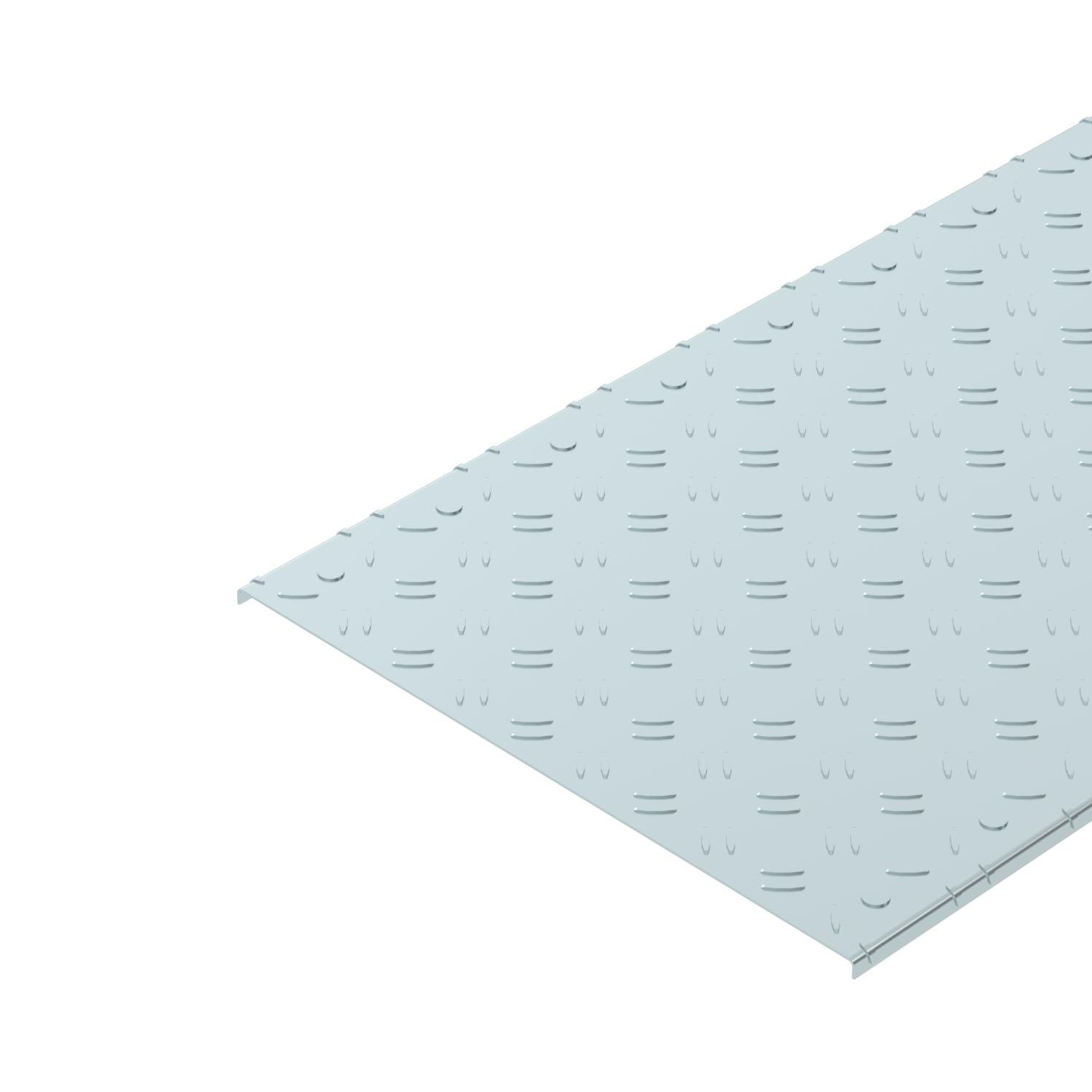

Chequer plate cover for the walkable cable tray system, type BKR.

The cover thickness is comprised of 2.0 mm of strip-galvanised sheet steel and a 1.3 mm chequer height.

Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.
When using covers outdoors, additional measures against the influence of wind must be taken.

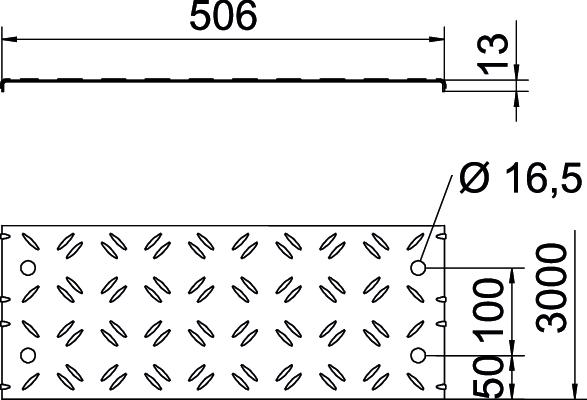

Technical data

Technical data

Colour	zinc
Dimension	500x3000
Dimension b	50 mm
Dimension B	500 mm
Dimension L	3000 mm
Fastening type	On top
Height	13 mm
Length	3000 mm
Maintain electrical functions	no

Material	Steel
Plate thickness	3,3 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	500 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DBKR 100 DD	3000 mm	100 mm	3.3 mm	6049140	m	3 m
DBKR 200 DD	3000 mm	200 mm	3.3 mm	6049141	m	3 m
DBKR 300 DD	3000 mm	300 mm	3.3 mm	6049142	m	3 m
DBKR 400 DD	3000 mm	400 mm	3.3 mm	6049143	m	3 m
DBKR 500 DD	3000 mm	500 mm	3.3 mm	6049144	m	3 m
DBKR 600 DD	3000 mm	600 mm	3.3 mm	6049145	m	3 m
