Chequer plate cover DBKR FS 3000 | 200 | 3.3

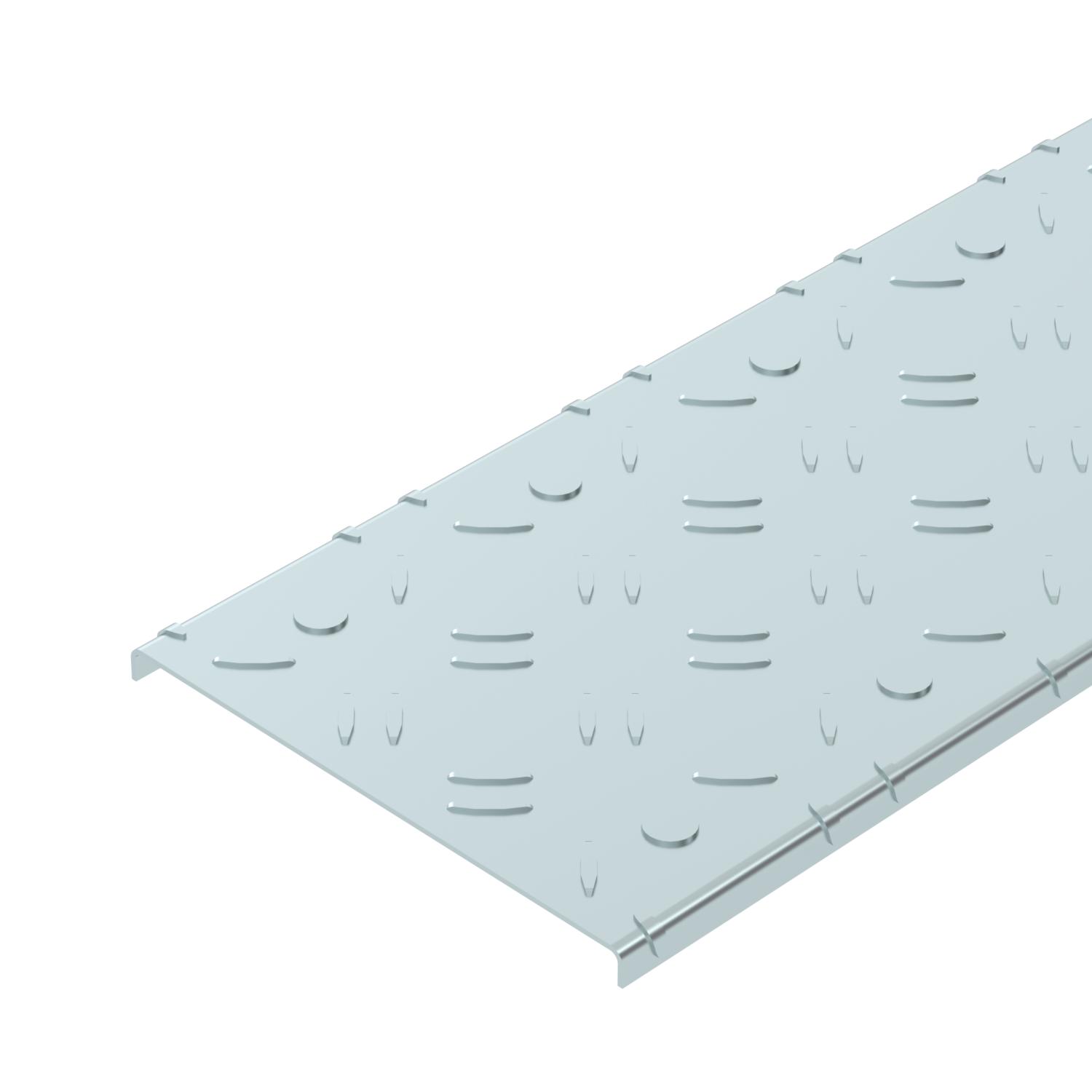

Chequer plate cover DBKR FS

Item no. 6049121 | EAN 4012196610013

Item no. / Types

Length	3000 mm

Width

Plate thickness	3.3 mm

Product description

Product description

Chequer plate cover for the walkable cable tray system, type BKR.

The cover thickness is comprised of 2.0 mm strip-galvanised sheet steel and a 1.3 mm chequer height.

Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.

Technical data

Technical data

Colour	zinc
Dimension	200x3000
Dimension b	50 mm
Dimension B	200 mm
Dimension L	3000 mm
Fastening type	On top
Height	13 mm
Length	3000 mm
Maintain electrical functions	no

Material	Steel
Plate thickness	3,3 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	200 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DBKR 100 FS	3000 mm	100 mm	3.3 mm	6049119	m	3 m
DBKR 200 FS	3000 mm	200 mm	3.3 mm	6049121	m	3 m
DBKR 300 FS	3000 mm	300 mm	3.3 mm	6049123	m	3 m
DBKR 400 FS	3000 mm	400 mm	3.3 mm	6049125	m	3 m
DBKR 500 FS	3000 mm	500 mm	3.3 mm	6049127	m	3 m
DBKR 600 FS	3000 mm	600 mm	3.3 mm	6049129	m	3 m
