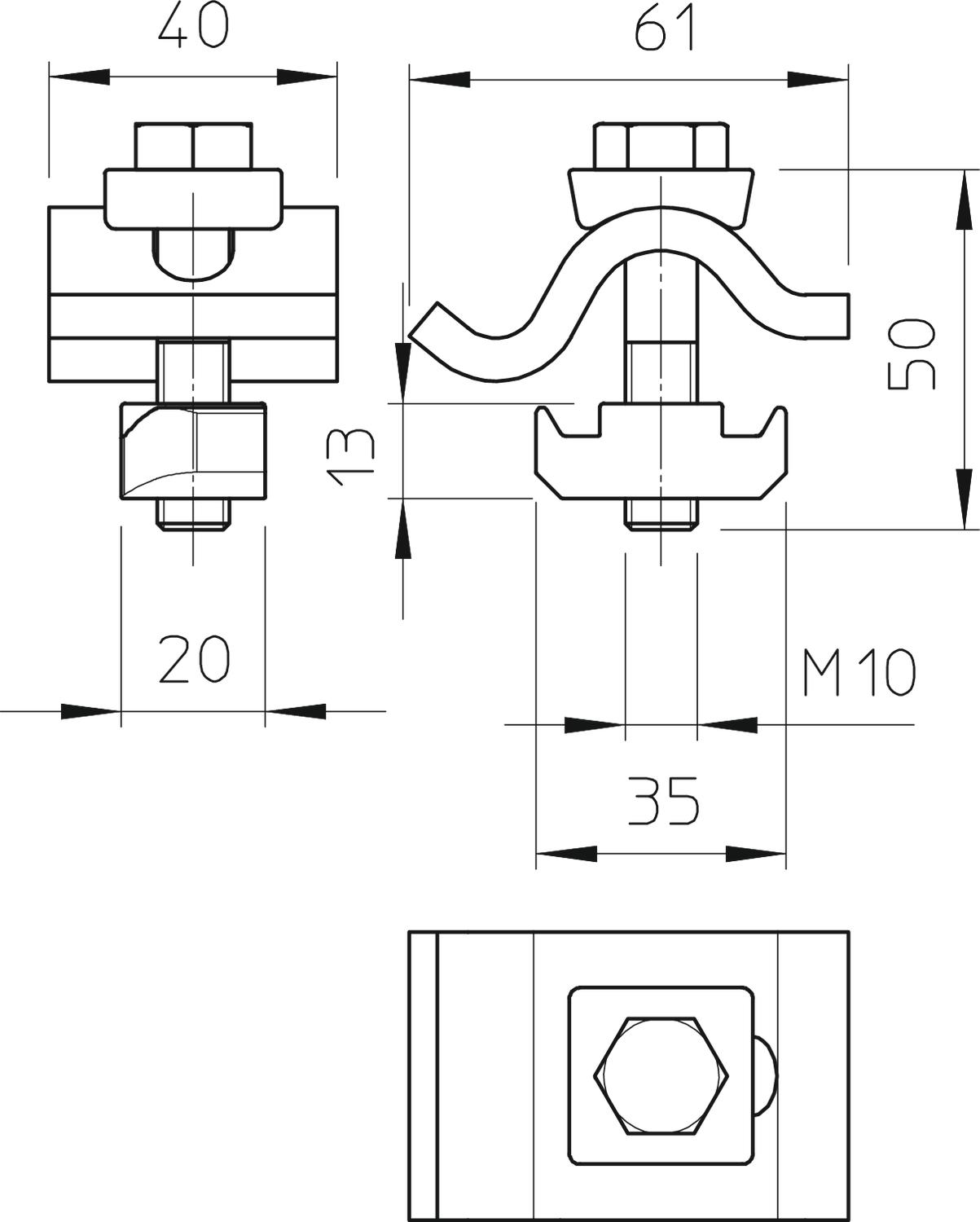

Chuck jaw, light duty TKH FT
Item no. 6355812 | EAN 4012196579259
- Product description
-
Product descriptionLight-duty chuck jaw with slide nut for fixing profile rails to steel girder flanges.
-
- Technical data
-
Technical data
Bolt M10 x 25 Colour zinc Dimension M10x50 F in kN 10 kN Height 25 mm Material Steel Surface Hot-dip galvanised Thread metric 10 - All types
- Downloads
-
Data sheet TKH-L-25 FT / 6355812 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity TKH-L-25 FT / 6355812 , 0.10MB , pdfREACH Declaration of conformity TKH-L-25 FT / 6355812 , 0.12MB , pdfRoHS Declaration of conformity TKH-L-25 FT / 6355812 , 0.13MB , pdfMounting instructions Mounting instructions, clamp fastening , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
