Chuck jaw, light-duty TKS A2 36 | 10

morepic-1

morepic-2

Chuck jaw, light-duty TKS A2

Item no. 6355834 | EAN 4012196039593

Item no. / Types	6355834 / TKS-L36 M8 A2

Height	36 mm

F in kN	10 kN

Product description

Product description

Chuck jaw with hexagonal nut for direct fastening of structures to steel girders.

Technical data

Technical data

Bolt	M8 x 80
Colour	stainless steel
Dimension	M8x80
F in kN	10 kN

Height	36 mm
Material	Stainless steel
Thread metric	8

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
TKS-L36 M8 A2	36 mm	10 kN	6355834	piece	50 piece

Downloads

Data sheet TKS-L36 M8 A2 / 6355834 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity TKS-L36 M8 A2 / 6355834 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

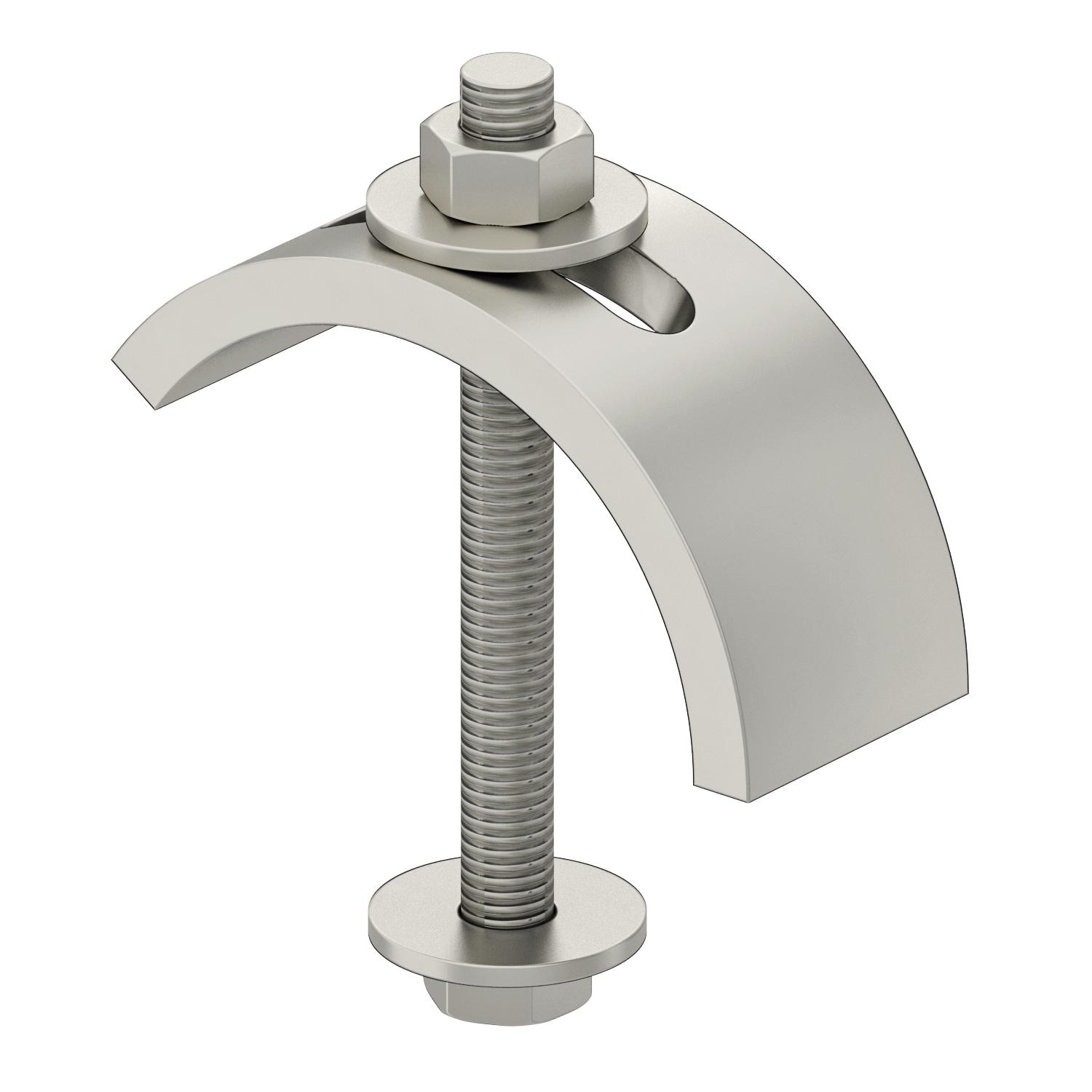

Product graphic TKS-L36 M8 A2 / 6355834, 77.50 kB, jpg

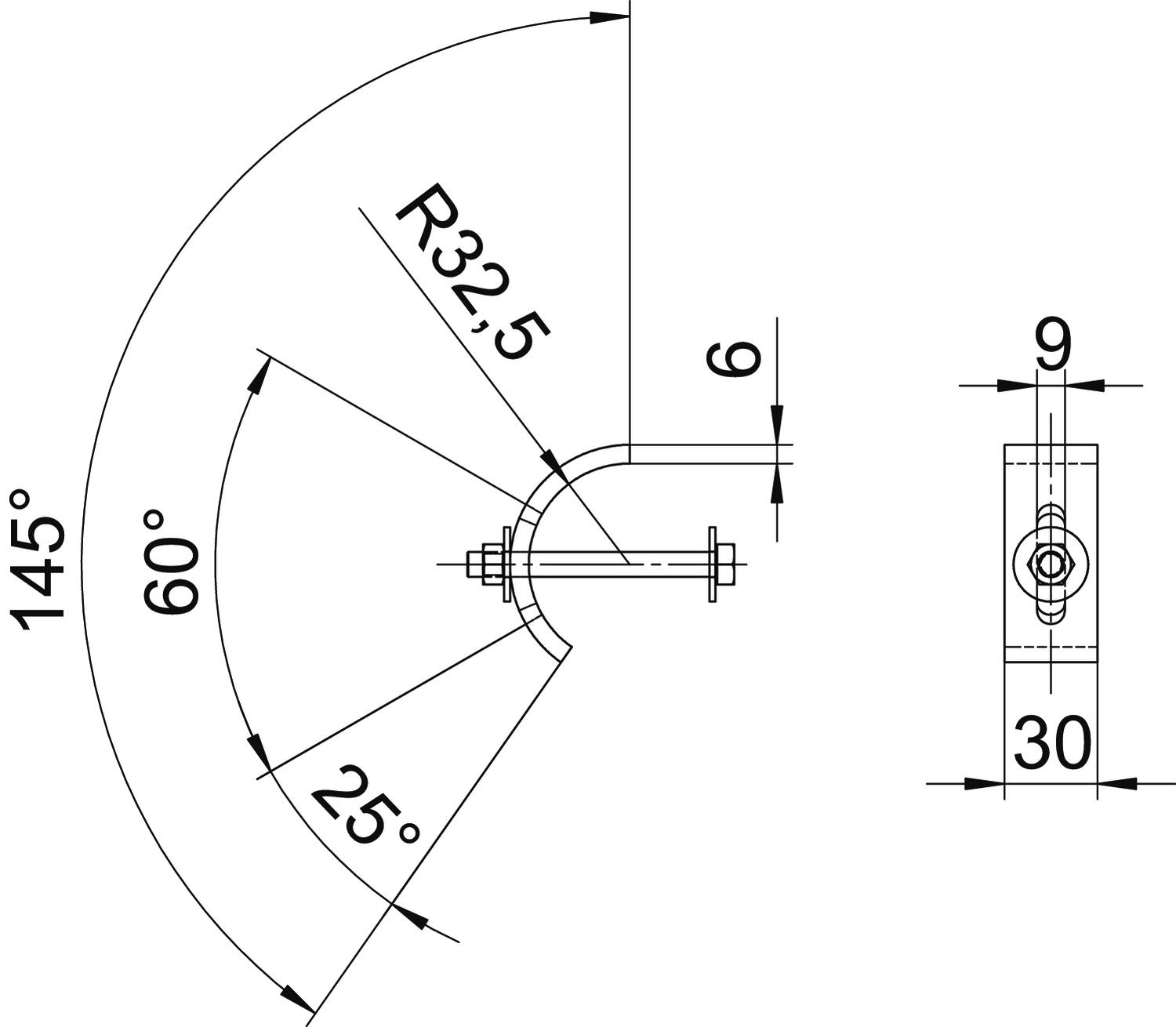

Scale drawing TKS-L36 M8 A2 / 6355834, 81.05 kB, jpg

No invitation to tender text is available for this product.
