Chuck jaw, light-duty TKS A4 36 | 10

morepic-1

morepic-2

Chuck jaw, light-duty TKS A4

Item no. 6355837 | EAN 4012196045211

Item no. / Types	6355837 / TKS-L36 M12 A4

Height	36 mm

F in kN	10 kN

Product description

Product description

Chuck jaw with hexagonal nut for direct fastening of structures to steel girders.

Technical data

Technical data

Bolt	M12 x 80
Dimension	M12x80
F in kN	10 kN

Material	Stainless steel
Thread metric	12

Dimensions

Height	36 mm

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
TKS-L36 M12 A4	36 mm	10 kN	6355837	piece	1 piece

Downloads

Data sheet TKS-L36 M12 A4 / 6355837 , 0.23MB , pdf

Declaration of conformity TKS-L36 M12 A4 / 6355837 , 0.17MB , pdf

Sustainability report Sustainability report, cable support systems , 2.00MB , pdf

Download

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

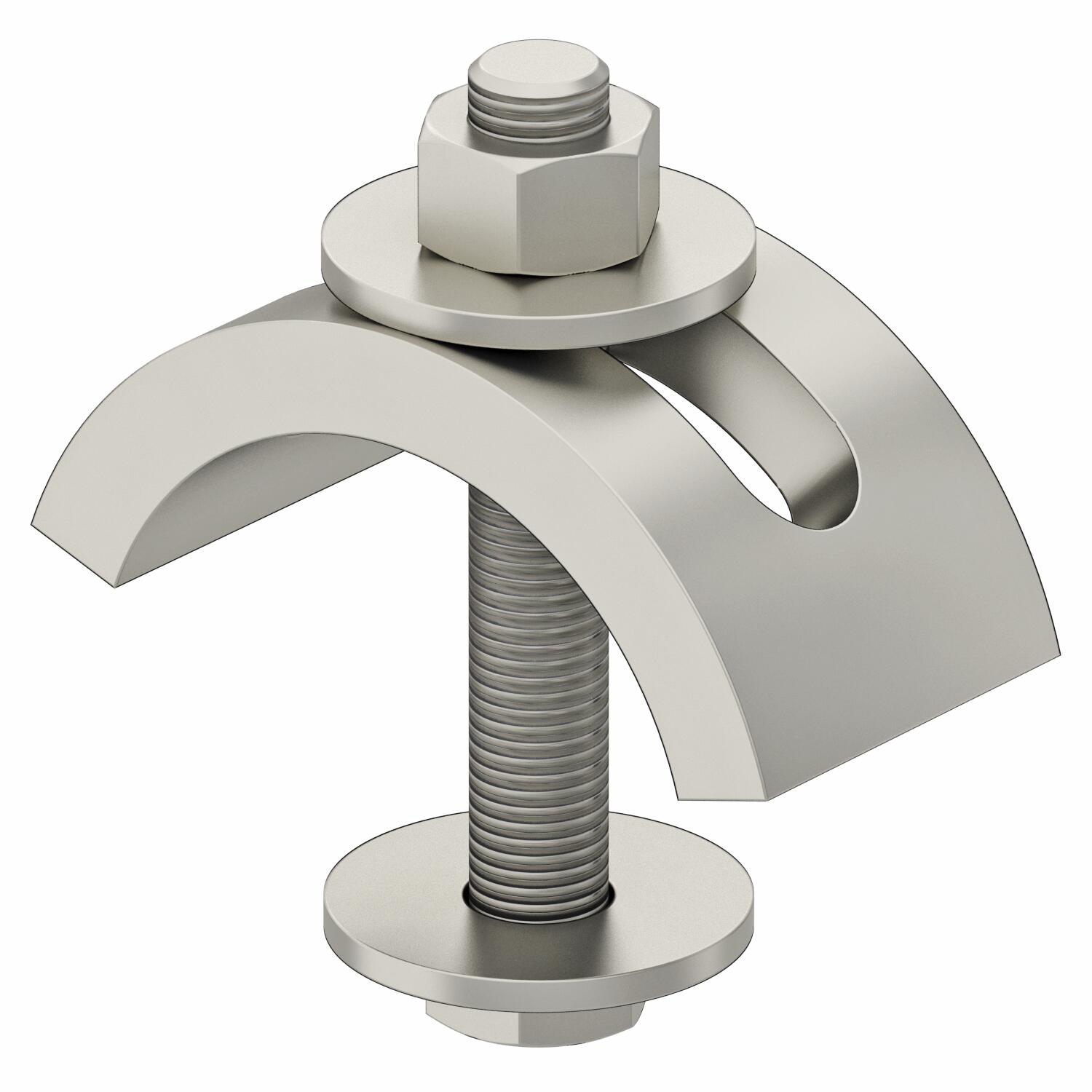

Product graphic TKS-L36 M12 A4 / 6355837, 93.44 kB, jpg

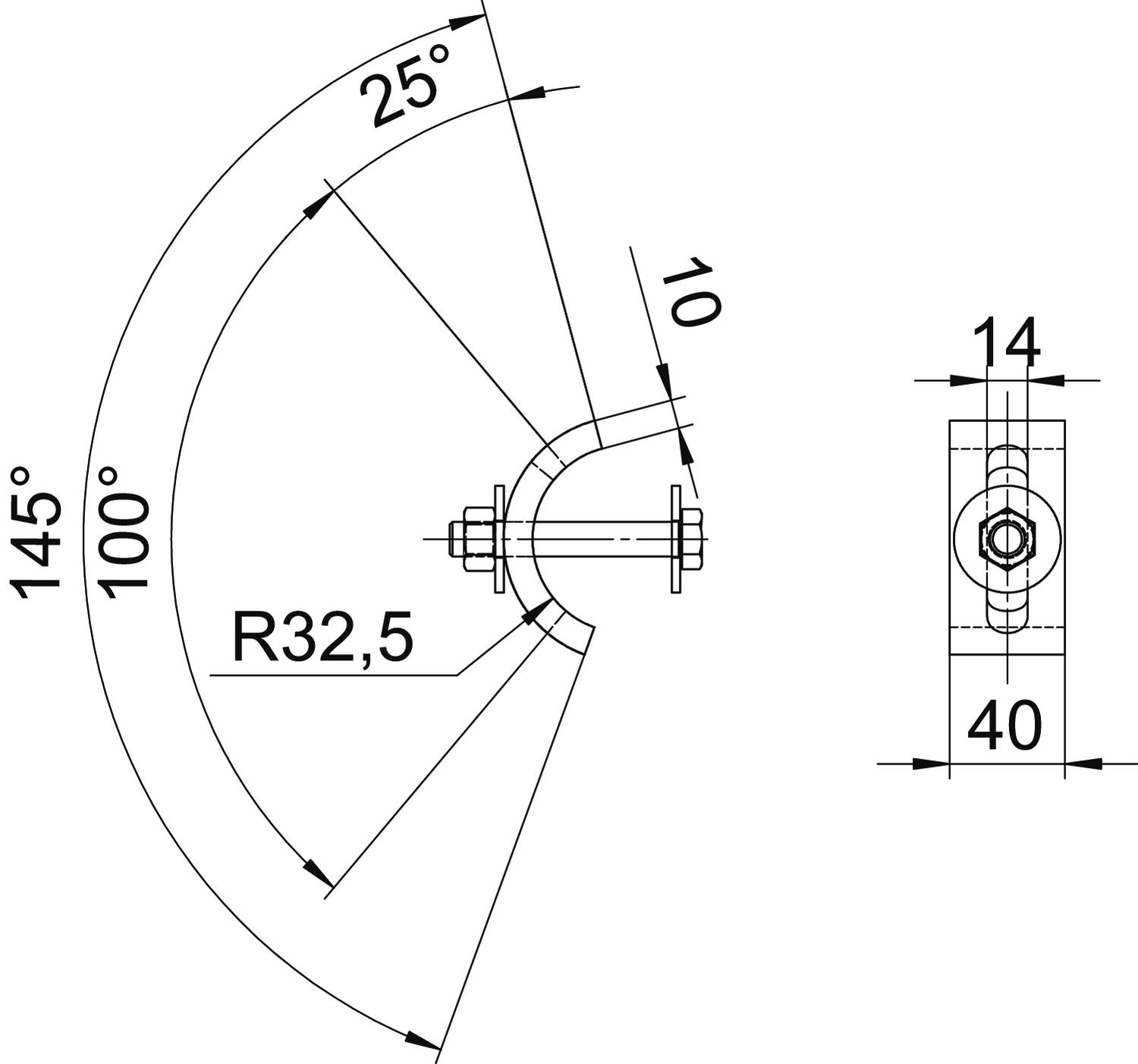

Scale drawing TKS-L36 M12 A4 / 6355837, 87.16 kB, jpg

No invitation to tender text is available for this product.
