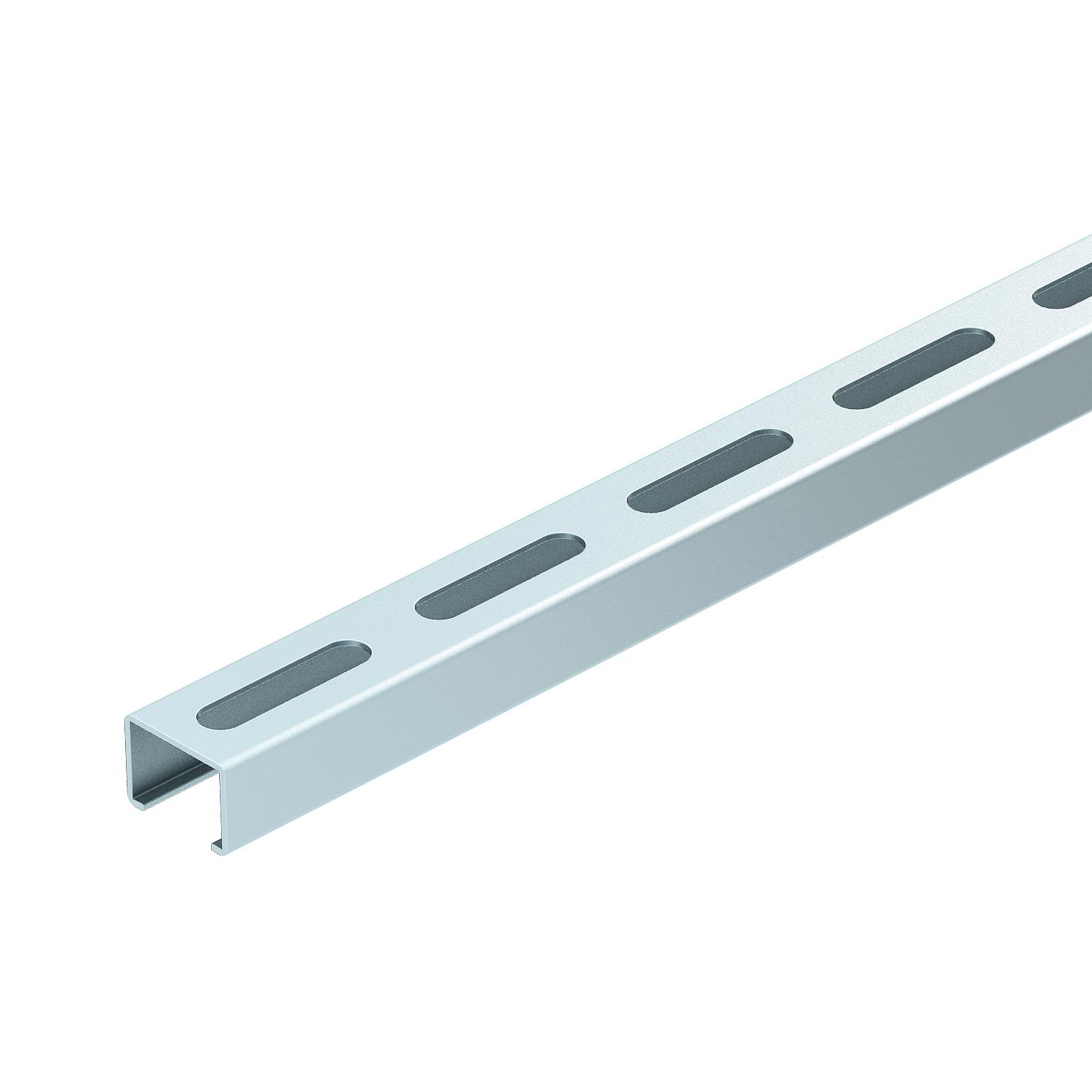

CL2518 profile rail, slot 17 mm, FS, perforated
Item no. 1111640 | EAN 4012196255764
- Product description
-
Product descriptionCentral C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
-
- Technical data
-
Technical data

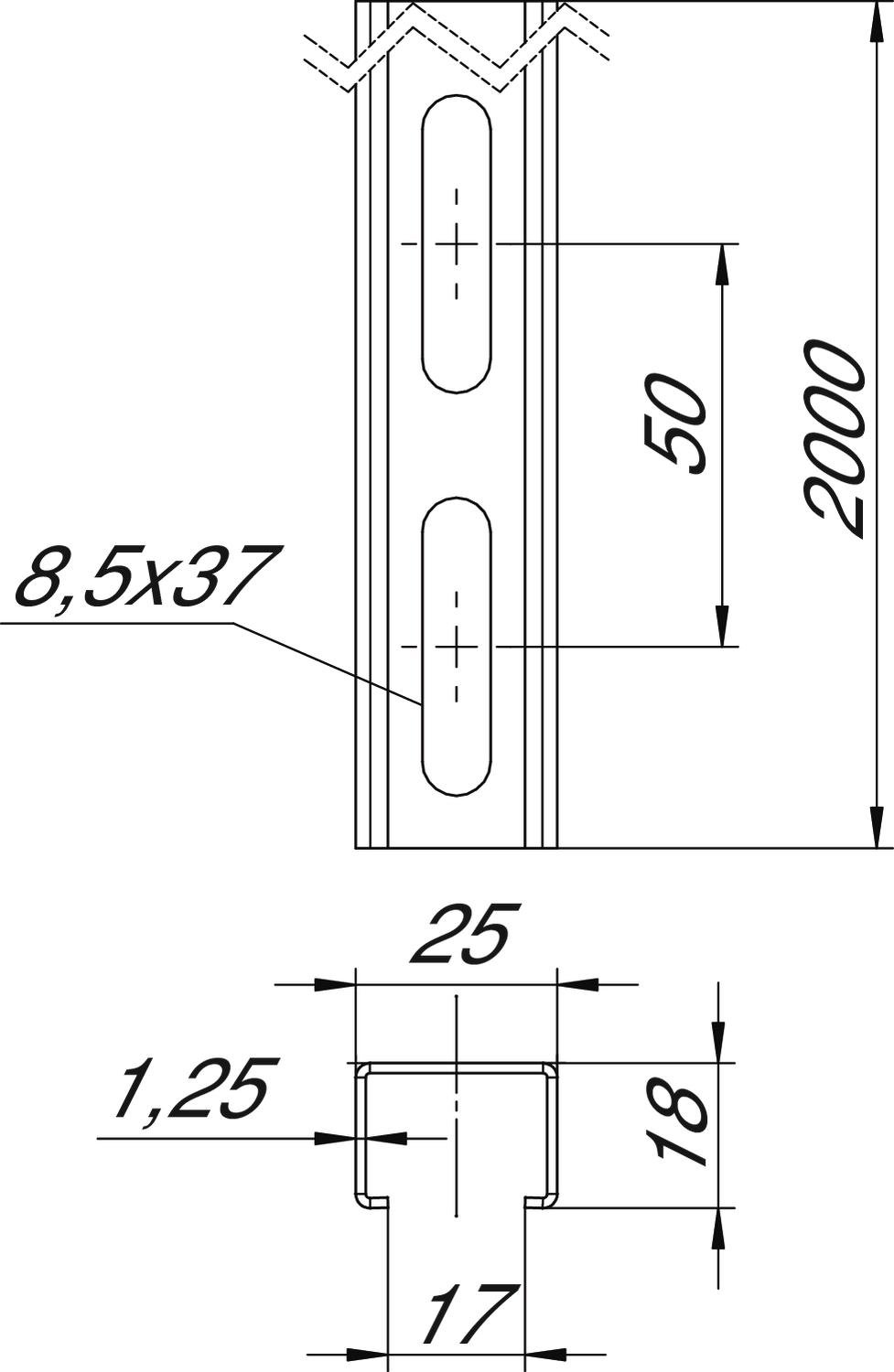

CO2 Footprint (GWP) Cradle-to-Gate 1,3803 kg CO2e / 1 Meter Dimension 2000x25x18 Dimension L 2000 mm Height 18 mm Hole shape (ETIM) Long slot Length 2000 mm Maintain electrical functions no Material Steel Material thickness 1,25 mm Profile shape C profile Slot width 17 mm Static value A 0,67 cm² Static value ly 0,26 cm⁴ Static value lz 0,78 cm⁴ Static value Wy 0,21 cm³ Static value Wz 0,75 cm³ Surface Strip galvanized Type of perforation Perforated back Version for Single profile Width 25 mm With perforation yes With toothing no - All types
- Downloads
-
Data sheet C2518 / 1111640 , 0.20MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity C2518 / 1111640 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity C2518 / 1111640 , 0.09MB , pdf
