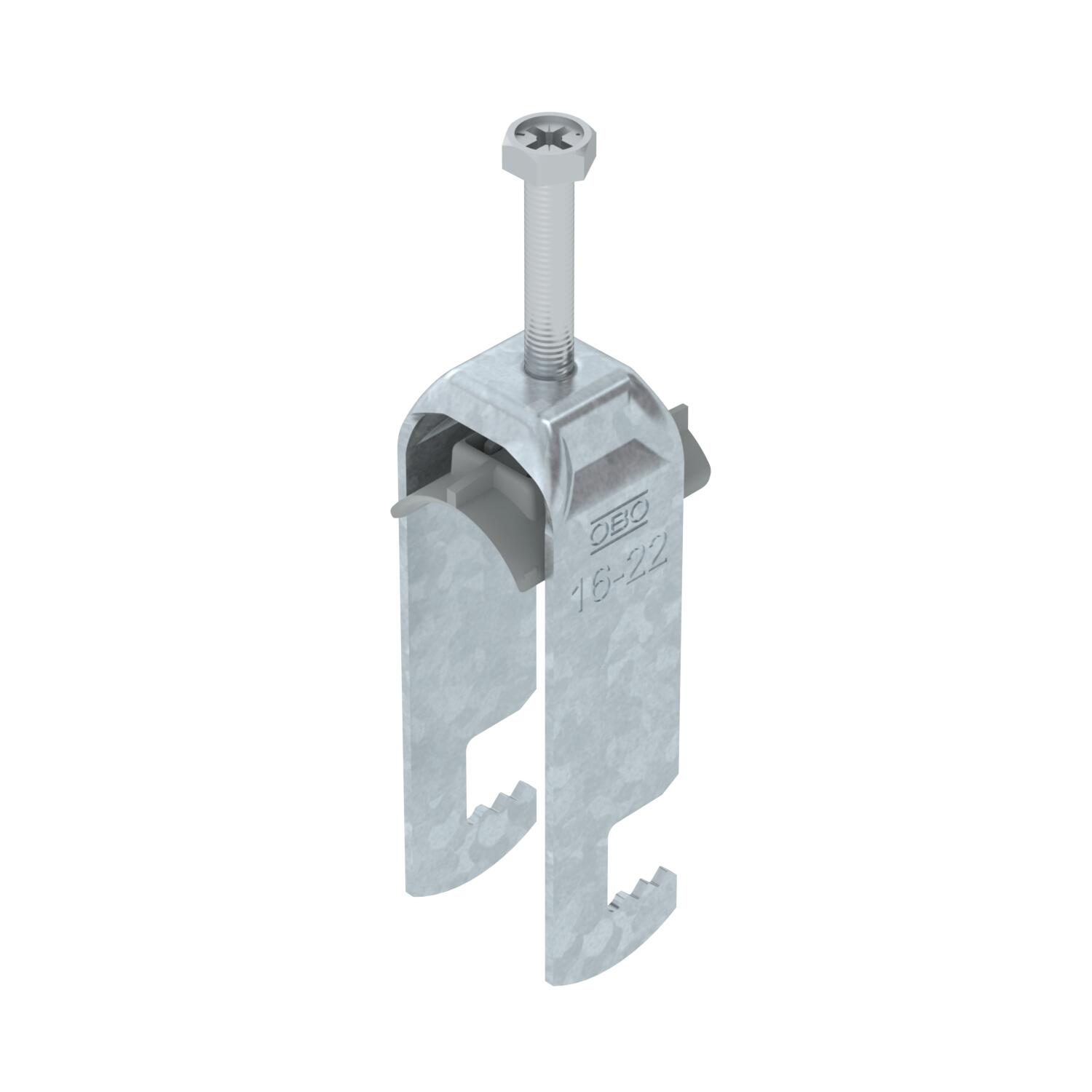

Clamp clip 2056, F-foot, 2-fold, plastic pressure sleeve, FT 16 | 22 | 3

Clamp clip 2056, F-foot, 2-fold, plastic pressure sleeve, FT

Item no. 1187615 | EAN 4012196854202

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Back to overview

Product description

Product description

Clamp clip with F-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 2 single cables on flat bars. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	22 mm
Clamping range D, min.	16 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,1538 kg CO₂e / 1 Piece
Dimension	16-22mm
Dimension A	22,5 mm
Dimension B	27 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	85 mm
Dimension L	47 mm
Dimension t	1,5 mm
For pipe diameter, max.	22 mm
For pipe diameter, min.	16 mm
Halogen-free	yes
Height	85 mm
Length	22,5 mm

Length of external dimensions	34 mm
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	2
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	27 mm
With counter-trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F2-K-12 FT	8 mm	12 mm	3 Nm	1187603	piece	50 piece
BS-F2-K-16 FT	12 mm	16 mm	3 Nm	1187609	piece	50 piece
BS-F2-K-22 FT	16 mm	22 mm	3 Nm	1187615	piece	50 piece
BS-F2-K-28 FT	22 mm	28 mm	3 Nm	1187621	piece	50 piece
BS-F2-K-34 FT	28 mm	34 mm	3 Nm	1187627	piece	50 piece
BS-F2-K-40 FT	34 mm	40 mm	3 Nm	1187633	piece	50 piece
BS-F2-K-46 FT	40 mm	46 mm	5 Nm	1187639	piece	50 piece
BS-F2-K-52 FT	46 mm	52 mm	5 Nm	1187645	piece	50 piece
