Clamp clip 2056 H-foot 2-fold, metal pressure sleeve, FT 22 | 28 | 3

Clamp clip 2056 H-foot 2-fold, metal pressure sleeve, FT

Item no. 1186023 | EAN 4012196848621

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

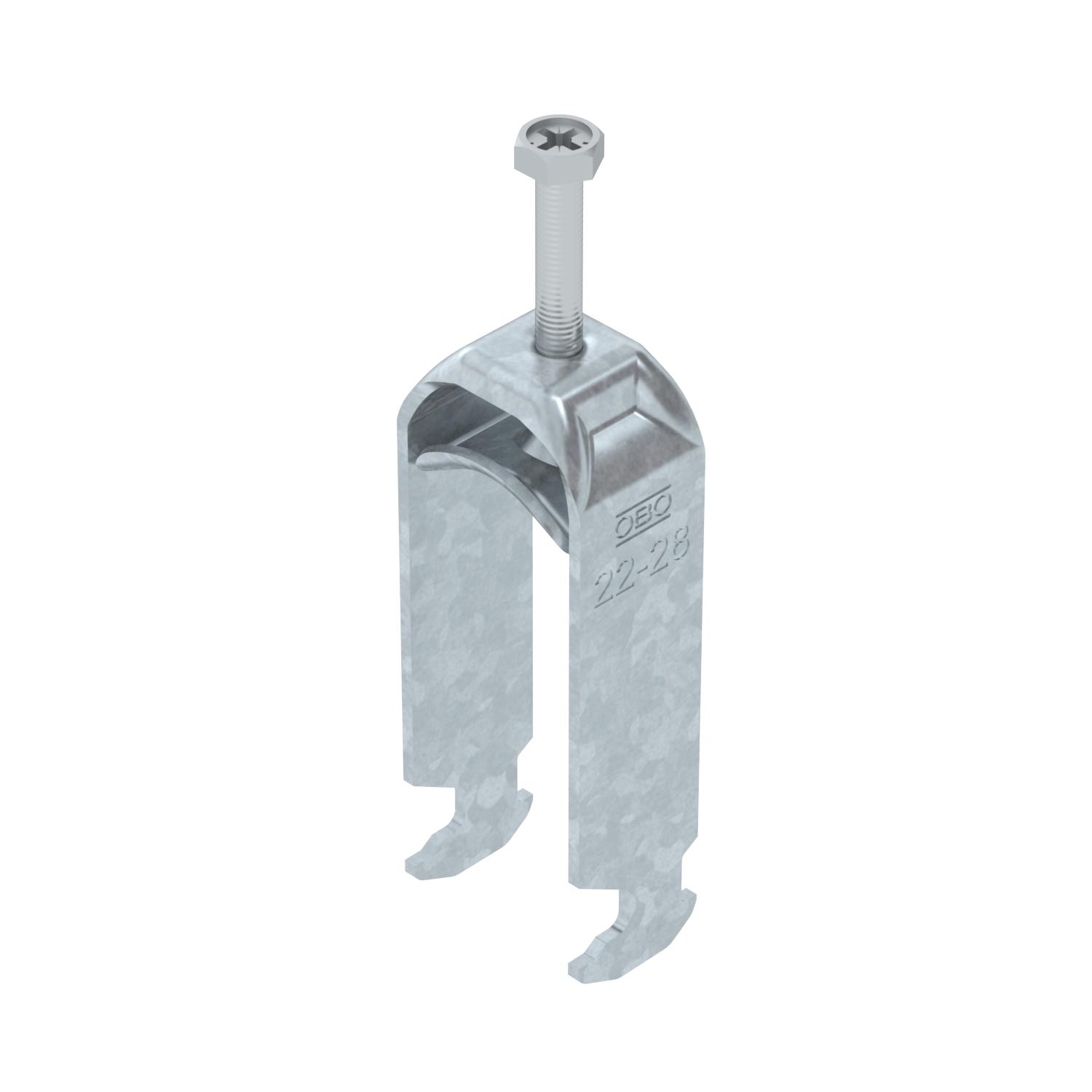

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.

Technical data

Technical data

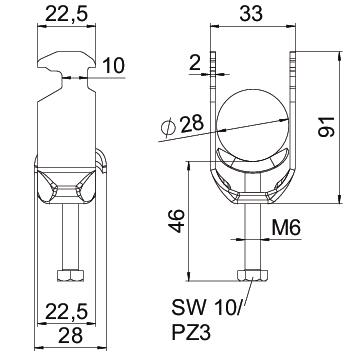

Clamping range D, max.	28 mm
Clamping range D, min.	22 mm
Dimension	22-28mm
Dimension A	22,5 mm
Dimension B	33 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	91 mm
Dimension L	34 mm
Dimension t	2 mm
For pipe diameter, max.	28 mm
For pipe diameter, min.	22 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Height	91 mm
Length	22,5 mm

Length of external dimensions	28 mm
Maintain electrical functions	yes
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	2
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	33 mm
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H2-M-12 FT	8 mm	12 mm	3 Nm	1186003	piece	50 piece
BS-H2-M-16 FT	12 mm	16 mm	3 Nm	1186010	piece	50 piece
BS-H2-M-22 FT	16 mm	22 mm	3 Nm	1186017	piece	50 piece
BS-H2-M-28 FT	22 mm	28 mm	3 Nm	1186023	piece	50 piece
BS-H2-M-34 FT	28 mm	34 mm	3 Nm	1186030	piece	50 piece
BS-H2-M-40 FT	34 mm	40 mm	3 Nm	1186037	piece	50 piece
BS-H2-M-46 FT	40 mm	46 mm	5 Nm	1186043	piece	50 piece
BS-H2-M-52 FT	46 mm	52 mm	5 Nm	1186050	piece	50 piece
BS-H2-M-58 FT	52 mm	58 mm	5 Nm	1186057	piece	50 piece
BS-H2-M-64 FT	58 mm	64 mm	5 Nm	1186063	piece	50 piece
