- Product description
-
Product description

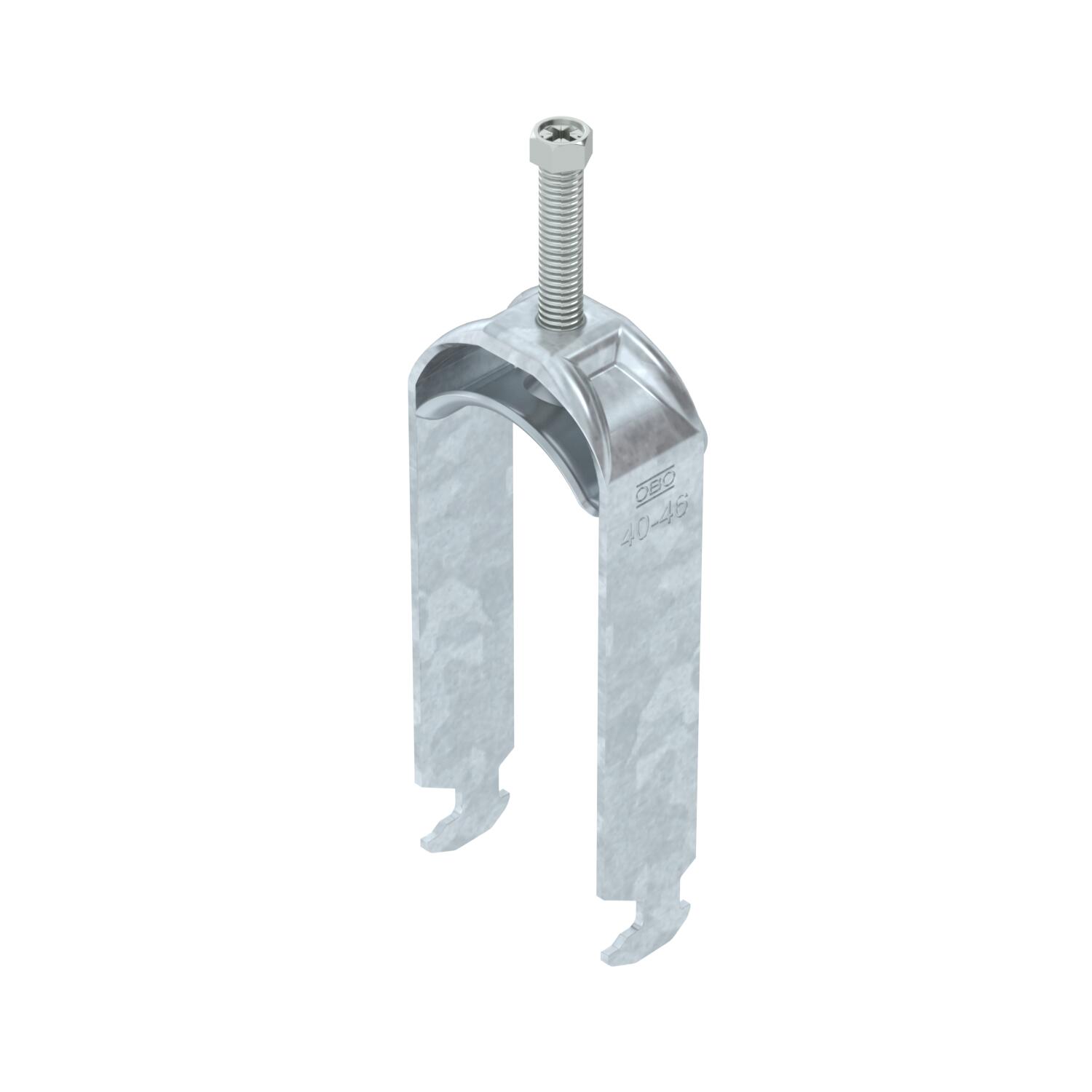

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data
Clamping range D, max. 46 mm Clamping range D, min. 40 mm Dimension 40-46mm For pipe diameter, max. 46 mm For pipe diameter, min. 40 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Length of external dimensions 33 mm Maintain electrical functions yes Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 5 Nm Mounting type Profile rail Number of cables/pipes 2 Plate thickness 2 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M8 With counter-trough no With metal trough yes With plastic trough no Dimensions

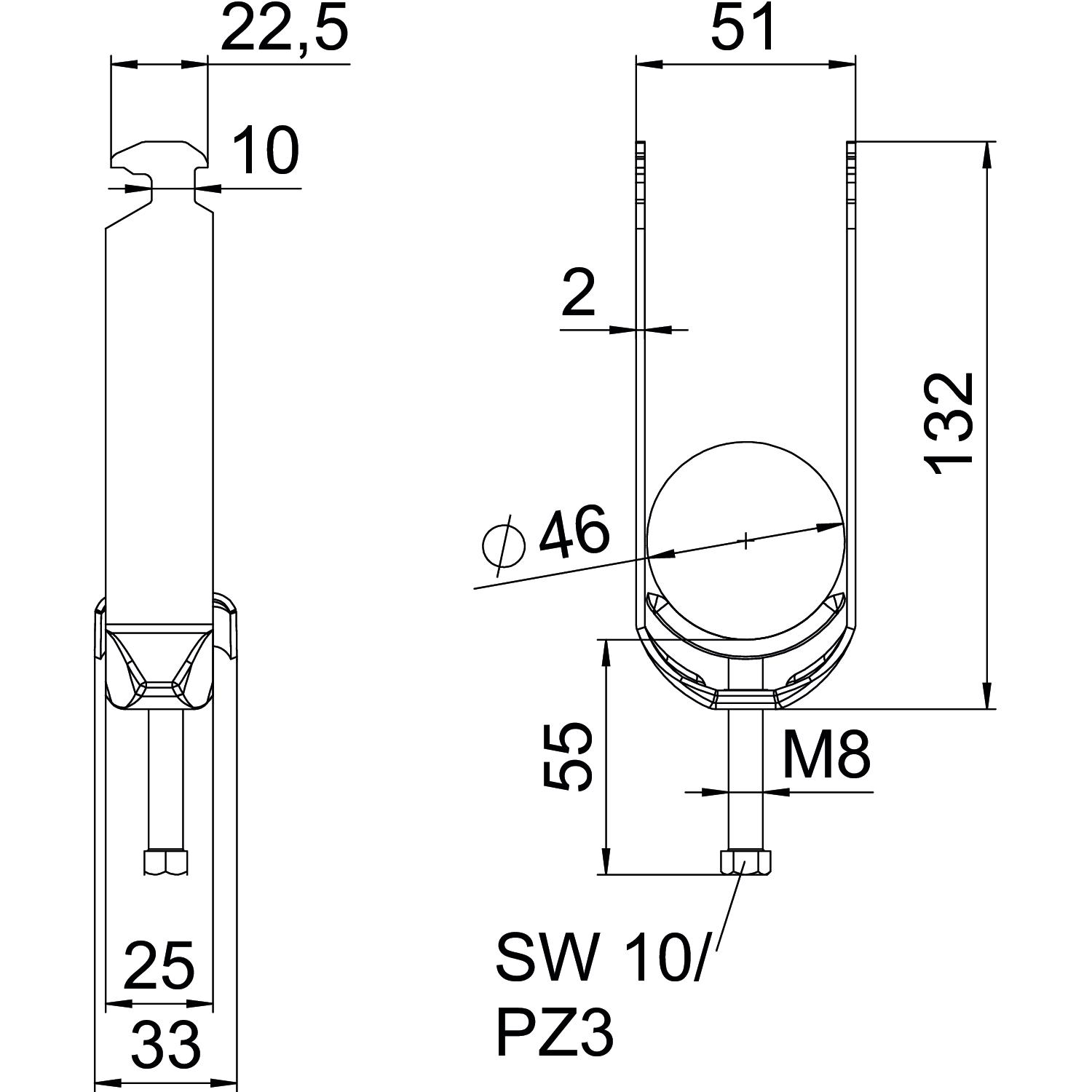

Dimension A 25 mm Dimension B 51 mm Dimension C 33 mm Dimension G (mm) M8 Dimension H 132 mm Dimension L 55 mm Dimension t 2 mm Height 132 mm Length 25 mm Width 51 mm - All types
-
All types
- Downloads
-
Data sheet BS-H2-M-46 FT / 1186043 , 0.31MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity BS-H2-M-46 FT / 1186043 , 0.15MB , pdfMounting instructions Bügelschelle H-Fuß Metall , 3.04MB , pdf
