- Product description
-
Product description

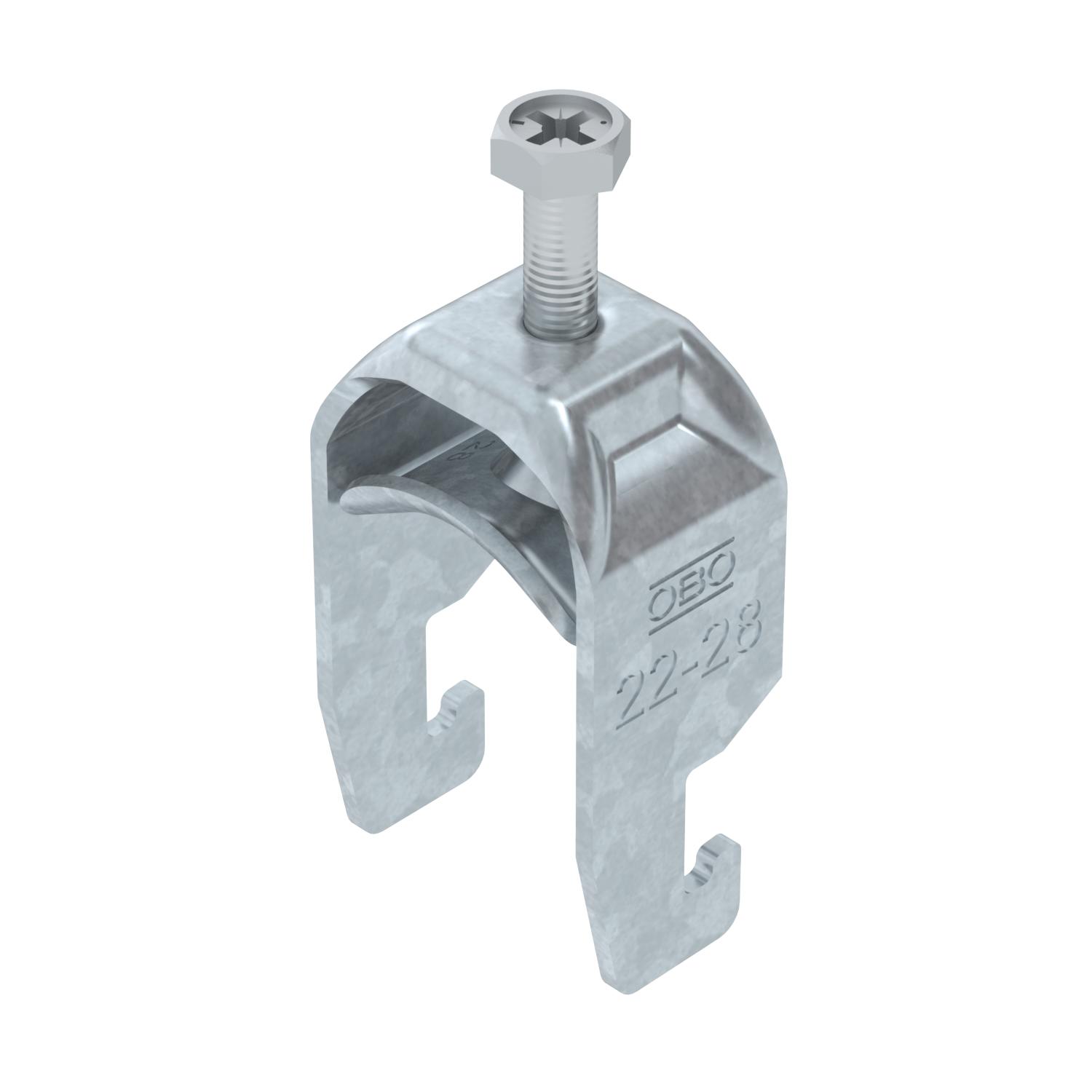

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data
Clamping range D, max. 28 mm Clamping range D, min. 22 mm Dimension 22-28mm For pipe diameter, max. 28 mm For pipe diameter, min. 22 mm for rail with slot width (with interval), max. 22 mm for rail with slot width (with interval), min. 18 mm Halogen-free yes Length of external dimensions 28 mm Maintain electrical functions yes Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Plate thickness 2 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M6 With counter-trough no With metal trough yes Dimensions

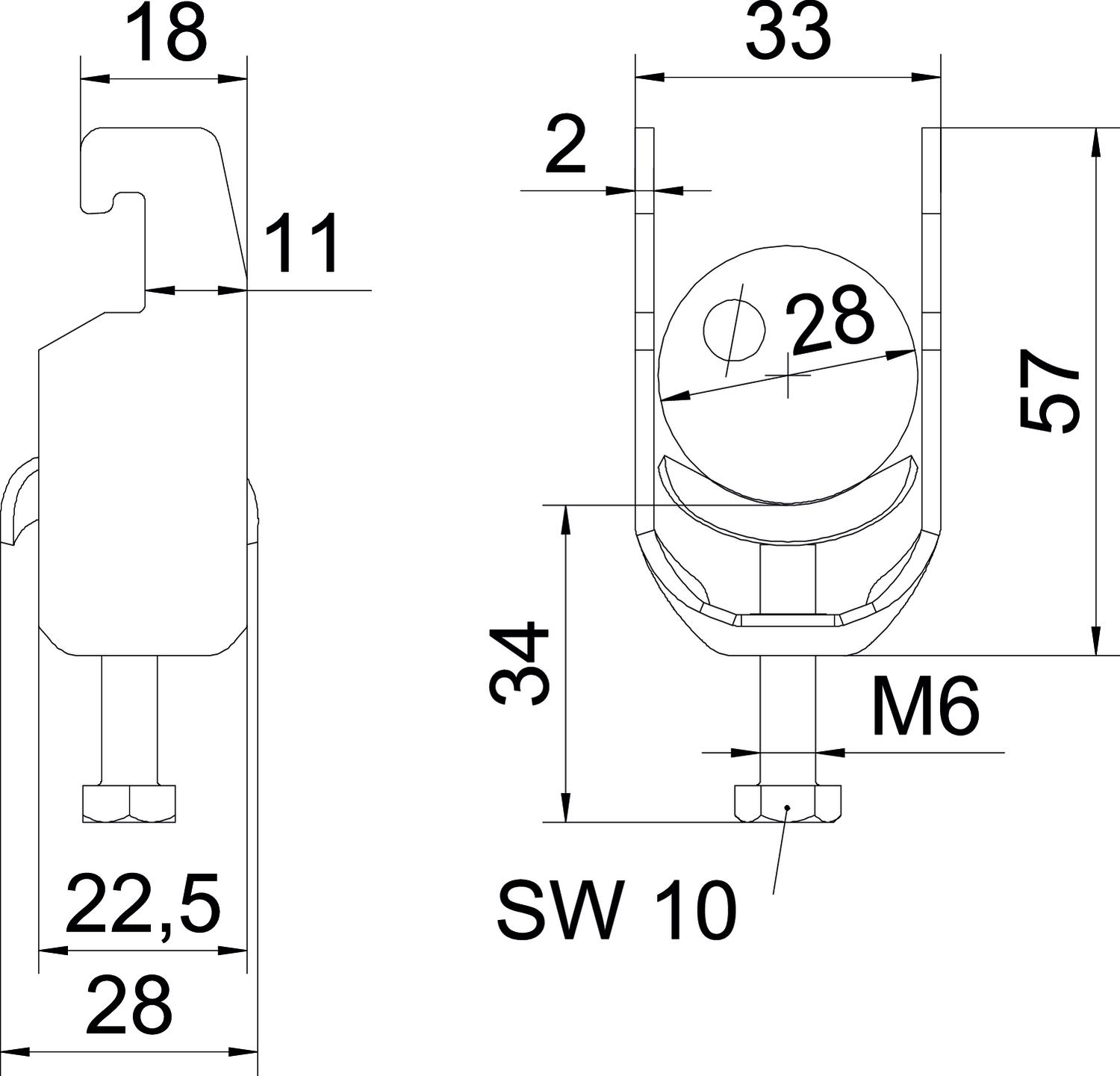

Dimension A 22,5 mm Dimension B 33 mm Dimension C 28 mm Dimension G (mm) M6 Dimension H 57 mm Dimension L 34 mm Dimension t 2 mm Height 57 mm Length 22,5 mm Width 33 mm - All types
-
All types
- Downloads
-
Data sheet BS-U1-M-28 FT / 1186522 , 0.35MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity BS-U1-M-28 FT / 1186522 , 0.15MB , pdfREACH Declaration of conformity BS-U1-M-28 FT / 1186522 , 0.12MB , pdfRoHS Declaration of conformity BS-U1-M-28 FT / 1186522 , 0.12MB , pdfSurveyor's comments Funktionserhalt von Steigetrassen hängende Montage 3,5m bis 7m , 3.97MB , pdfMounting instructions Bügelschelle U-Fuß Metall , 2.86MB , pdf
