Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT 46 | 52 | 5

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186549 | EAN 4012196850082

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

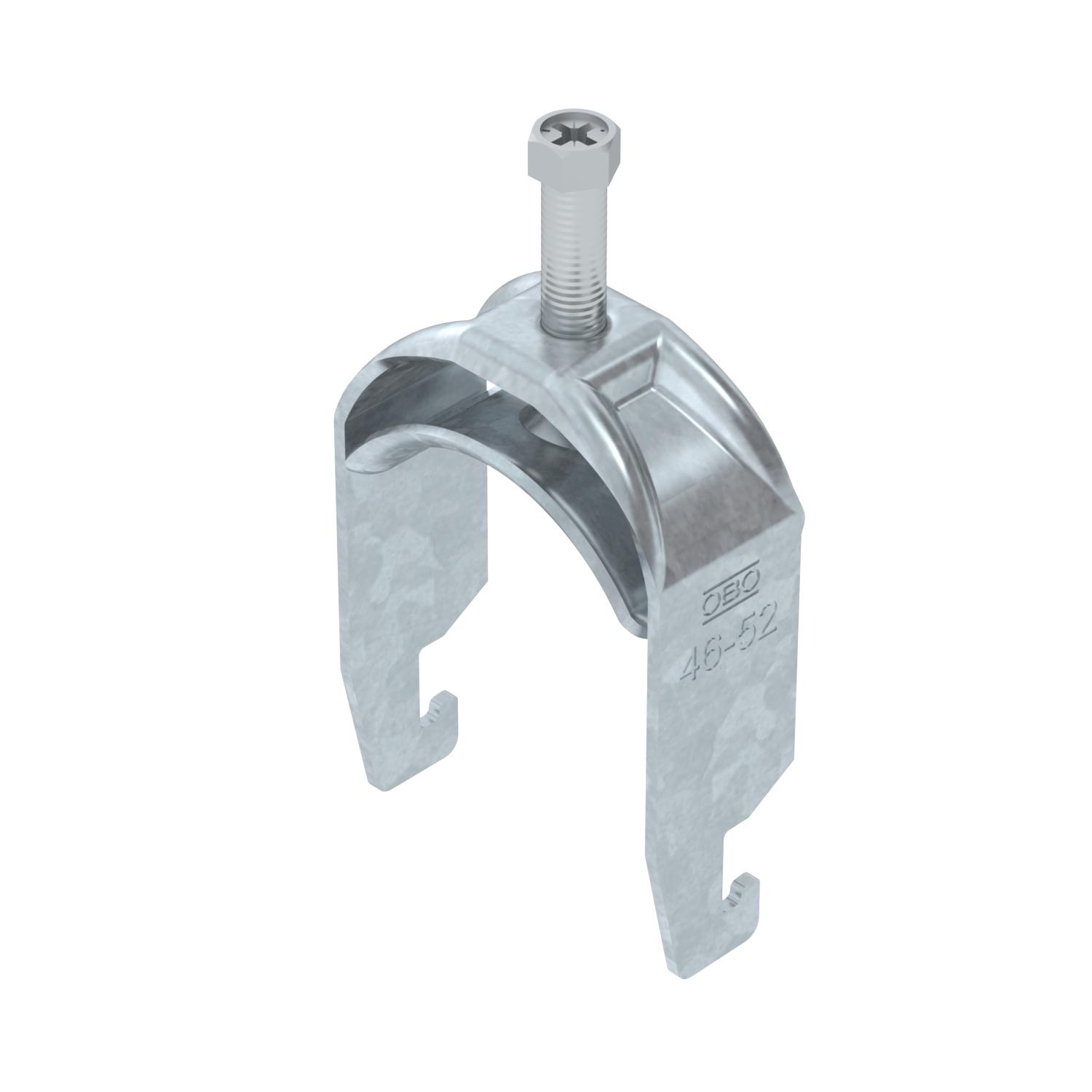

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	52 mm
Clamping range D, min.	46 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,2324 kg CO₂e / 1 Piece
Dimension	46-52mm

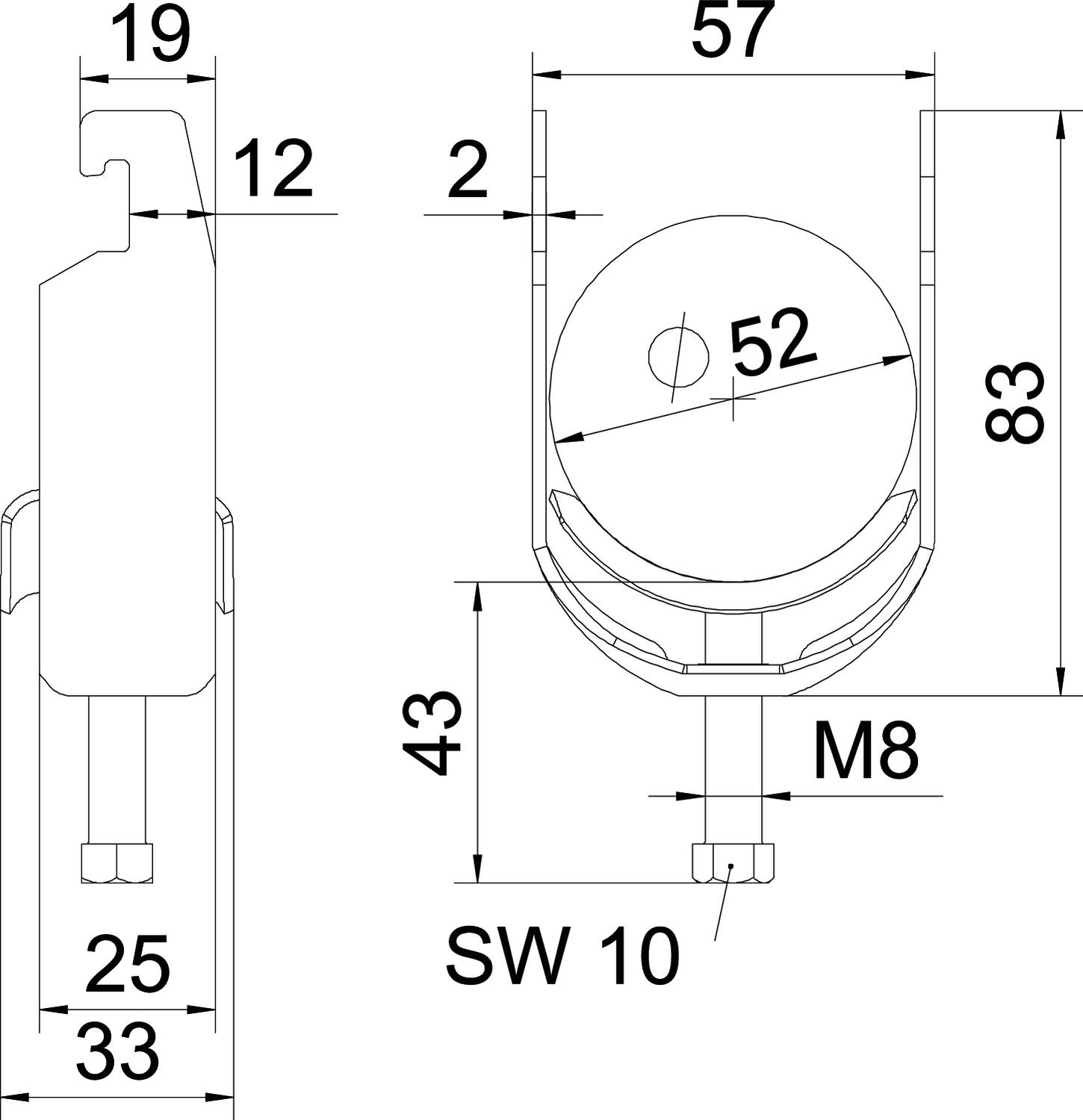

Dimension A	25 mm
Dimension B	57 mm
Dimension C	33 mm
Dimension G (mm)	M8
Dimension H	83 mm
Dimension L	43 mm
Dimension t	2 mm
For pipe diameter, max.	52 mm
For pipe diameter, min.	46 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Height	83 mm

Length	25 mm
Length of external dimensions	33 mm
Maintain electrical functions	yes
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
Width	57 mm
With counter-trough	no
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-M-12 FT	8 mm	12 mm	3 Nm	1186502	piece	100 piece
BS-U1-M-16 FT	12 mm	16 mm	3 Nm	1186509	piece	100 piece
BS-U1-M-22 FT	16 mm	22 mm	3 Nm	1186516	piece	100 piece
BS-U1-M-28 FT	22 mm	28 mm	3 Nm	1186522	piece	100 piece
BS-U1-M-34 FT	28 mm	34 mm	3 Nm	1186529	piece	100 piece
BS-U1-M-40 FT	34 mm	40 mm	3 Nm	1186536	piece	100 piece
BS-U1-M-46 FT	40 mm	46 mm	5 Nm	1186542	piece	100 piece
BS-U1-M-52 FT	46 mm	52 mm	5 Nm	1186549	piece	100 piece
BS-U1-M-58 FT	52 mm	58 mm	5 Nm	1186556	piece	100 piece
BS-U1-M-64 FT	58 mm	64 mm	5 Nm	1186562	piece	100 piece
BS-U1-M-70 FT	64 mm	70 mm	5 Nm	1186569	piece	50 piece
BS-U1-M-76 FT	70 mm	76 mm	5 Nm	1186576	piece	25 piece
BS-U1-M-82 FT	76 mm	82 mm	5 Nm	1186582	piece	25 piece
BS-U1-M-90 FT	82 mm	90 mm	5 Nm	1186589	piece	25 piece
BS-U1-M-100 FT	90 mm	100 mm	5 Nm	1186597	piece	25 piece
