Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, A2 52 | 58 | 5

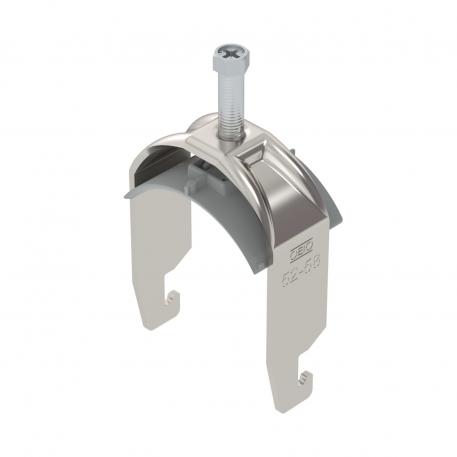

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, A2

Item no. 1186856 | EAN 4012196851621

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

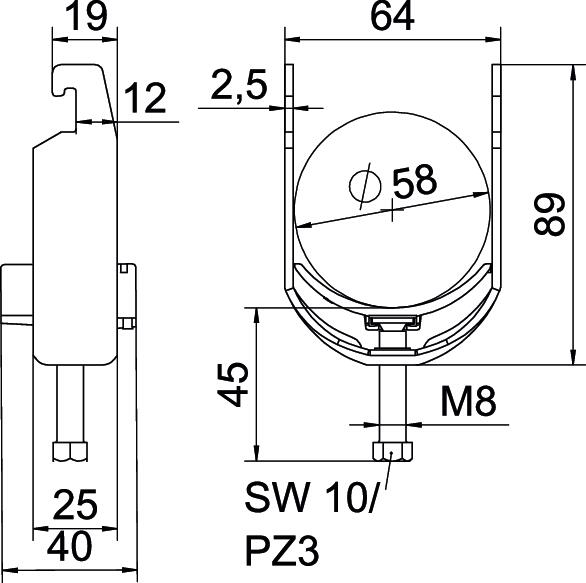

Clamping range D, max.	58 mm
Clamping range D, min.	52 mm
Dimension	52-58mm
Dimension A	25 mm
Dimension B	64 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	89 mm
Dimension L	45 mm
Dimension t	2,5 mm
For pipe diameter, max.	58 mm
For pipe diameter, min.	52 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Height	89 mm
Length	25 mm

Length of external dimensions	40 mm
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2,5 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M8
Width	64 mm
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-K-12 A2	8 mm	12 mm	3 Nm	1186802	piece	50 piece
BS-U1-K-16 A2	12 mm	16 mm	3 Nm	1186809	piece	50 piece
BS-U1-K-22 A2	16 mm	22 mm	3 Nm	1186816	piece	50 piece
BS-U1-K-28 A2	22 mm	28 mm	3 Nm	1186822	piece	50 piece
BS-U1-K-34 A2	28 mm	34 mm	3 Nm	1186829	piece	50 piece
BS-U1-K-40 A2	34 mm	40 mm	3 Nm	1186836	piece	25 piece
BS-U1-K-46 A2	40 mm	46 mm	5 Nm	1186842	piece	25 piece
BS-U1-K-52 A2	46 mm	52 mm	5 Nm	1186849	piece	25 piece
BS-U1-K-58 A2	52 mm	58 mm	5 Nm	1186856	piece	25 piece
BS-U1-K-64 A2	58 mm	64 mm	5 Nm	1186862	piece	15 piece
BS-U1-K-70 A2	64 mm	70 mm	5 Nm	1186869	piece	15 piece
BS-U1-K-76 A2	70 mm	76 mm	5 Nm	1186876	piece	10 piece
