Clamp clip 2056 W-foot, 1-fold, plastic pressure sleeve, AI 16 | 22 | 2

Clamp clip 2056 W-foot, 1-fold, plastic pressure sleeve, AI

Item no. 1187914 | EAN 4012196855049

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Back to overview

Product description

Product description

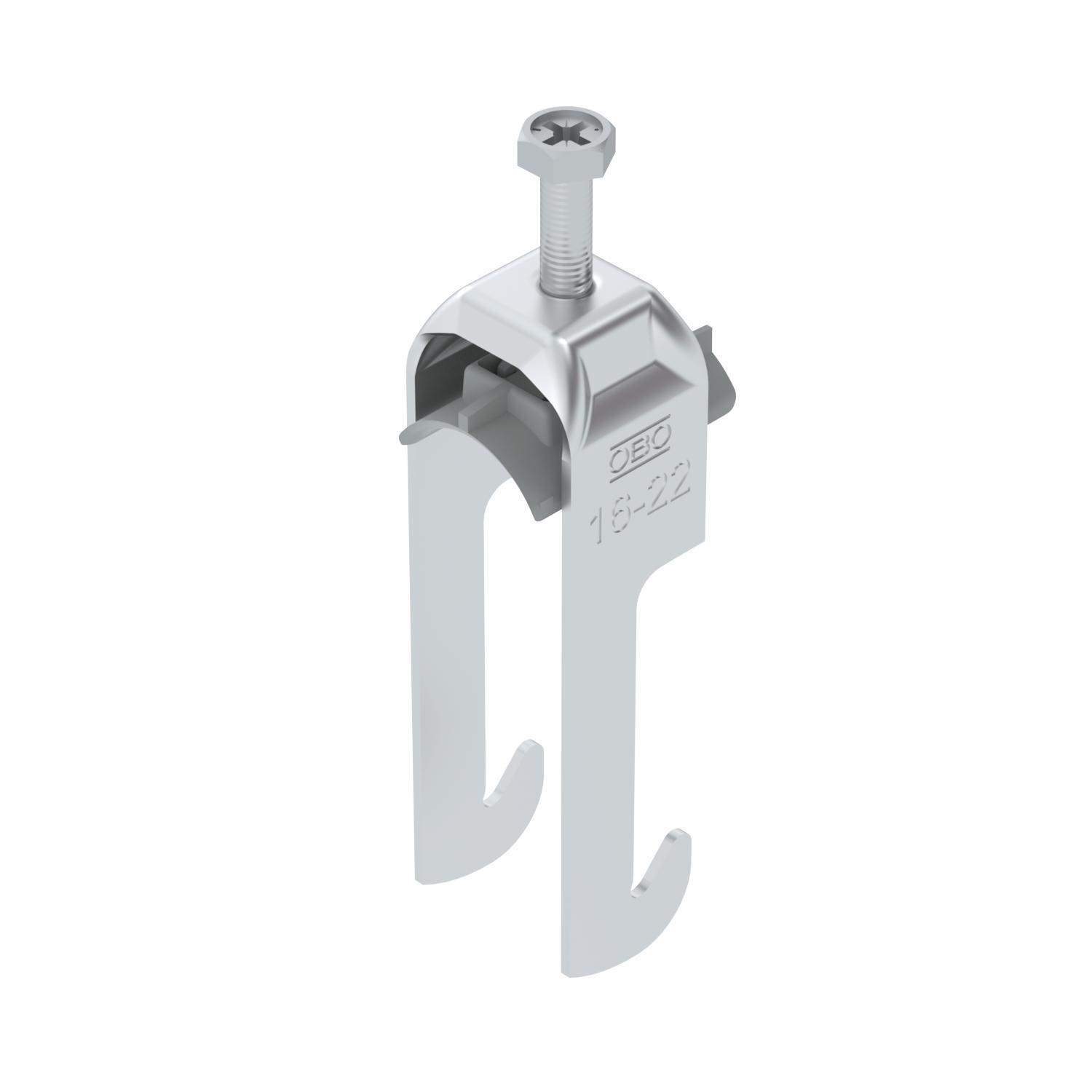

Clamp clip with W-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on angle irons < 40 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	22 mm
Clamping range D, min.	16 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,29 kg CO₂e / 1 Piece
Dimension	16-22mm

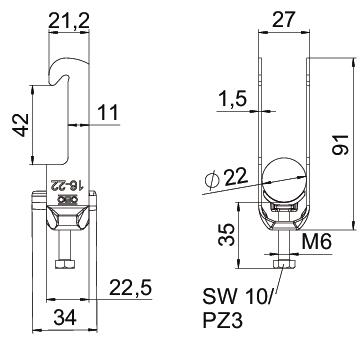

Dimension A	22,5 mm
Dimension B	27 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	91 mm
Dimension L	35 mm
Dimension t	1,5 mm
For pipe diameter, max.	22 mm
For pipe diameter, min.	16 mm
Halogen-free	yes
Height	91 mm
Length	22,5 mm

Length of external dimensions	34 mm
Material	Aluminium
Material addition	Aluminium
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	2 Nm
Mounting type	Angle profile
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface addition	Untreated
Thread	M6
Width	27 mm
With counter-trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-W1-K-12 ALU	8 mm	12 mm	3 Nm	1187902	piece	100 piece
BS-W1-K-16 ALU	12 mm	16 mm	3 Nm	1187908	piece	100 piece
BS-W1-K-22 ALU	16 mm	22 mm	2 Nm	1187914	piece	50 piece
BS-W1-K-28 ALU	22 mm	28 mm	2 Nm	1187920	piece	50 piece
BS-W1-K-34 ALU	28 mm	34 mm	2 Nm	1187926	piece	50 piece
BS-W1-K-40 ALU	34 mm	40 mm	2 Nm	1187932	piece	50 piece
BS-W1-K-46 ALU	40 mm	46 mm	2 Nm	1187938	piece	50 piece
BS-W1-K-52 ALU	46 mm	52 mm	2 Nm	1187944	piece	50 piece
BS-W1-K-58 ALU	52 mm	58 mm	2 Nm	1187950	piece	50 piece
BS-W1-K-64 ALU	58 mm	64 mm	2 Nm	1187956	piece	50 piece
