Clamp spring for stranded cables
Item no. 6049273 | EAN 4012196702725
- Product description
-
Product descriptionFunctional equipotential bonding of the cable support system can be created with the clamp spring.
The clamp spring is clamped onto the edge of the cable tray and then the conductor cable is clamped into the intended support of the clamp spring.
The clamp spring can accept conductor cables of between 10 and 35 mm² and should be mounted every 1,500 mm.
-
- Technical data
-
Technical data

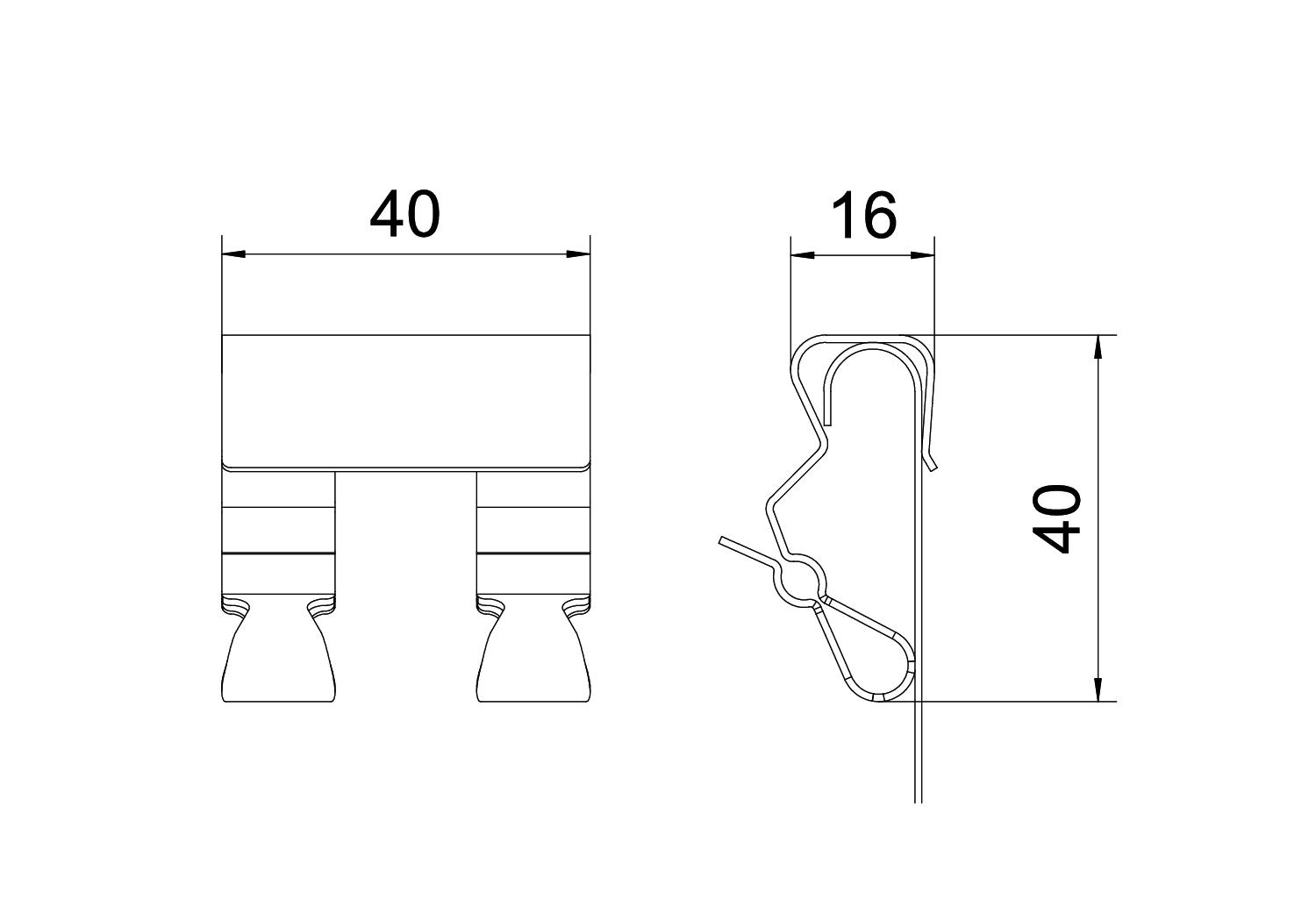

Accessories yes Colour zinc Cross-section 35 mm² Dimension 10-35mm² Height 40 mm Length 40 mm Material Steel Material thickness 0,8 mm Spare part no Suitable for Round conductor Surface Electrogalvanized Type of accessory Miscellaneous Width 16 mm - All types
- Downloads
-
Data sheet KFL G / 6049273 , 0.16MB , pdfEU declaration of conformity KFL G / 6049273 , 0.10MB , pdfREACH Declaration of conformity KFL G / 6049273 , 0.12MB , pdfRoHS Declaration of conformity KFL G / 6049273 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
