Clamping angle KL
Item no. 6354106 | EAN 4012196194292
- Product description
-

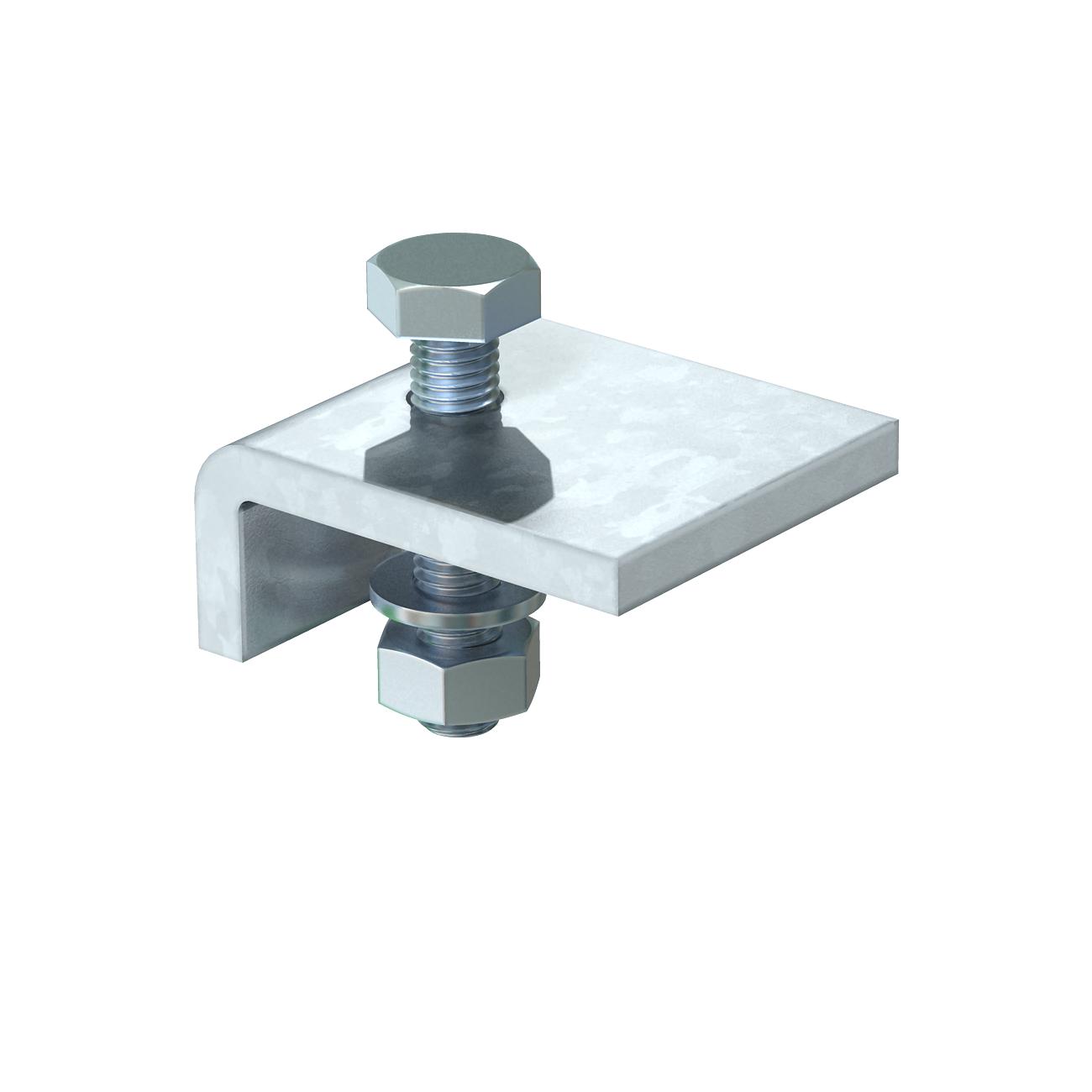

Product descriptionClamping angle, type KL1, to fasten light support structures to steel girder flanges.
-
- Technical data
-
Technical data

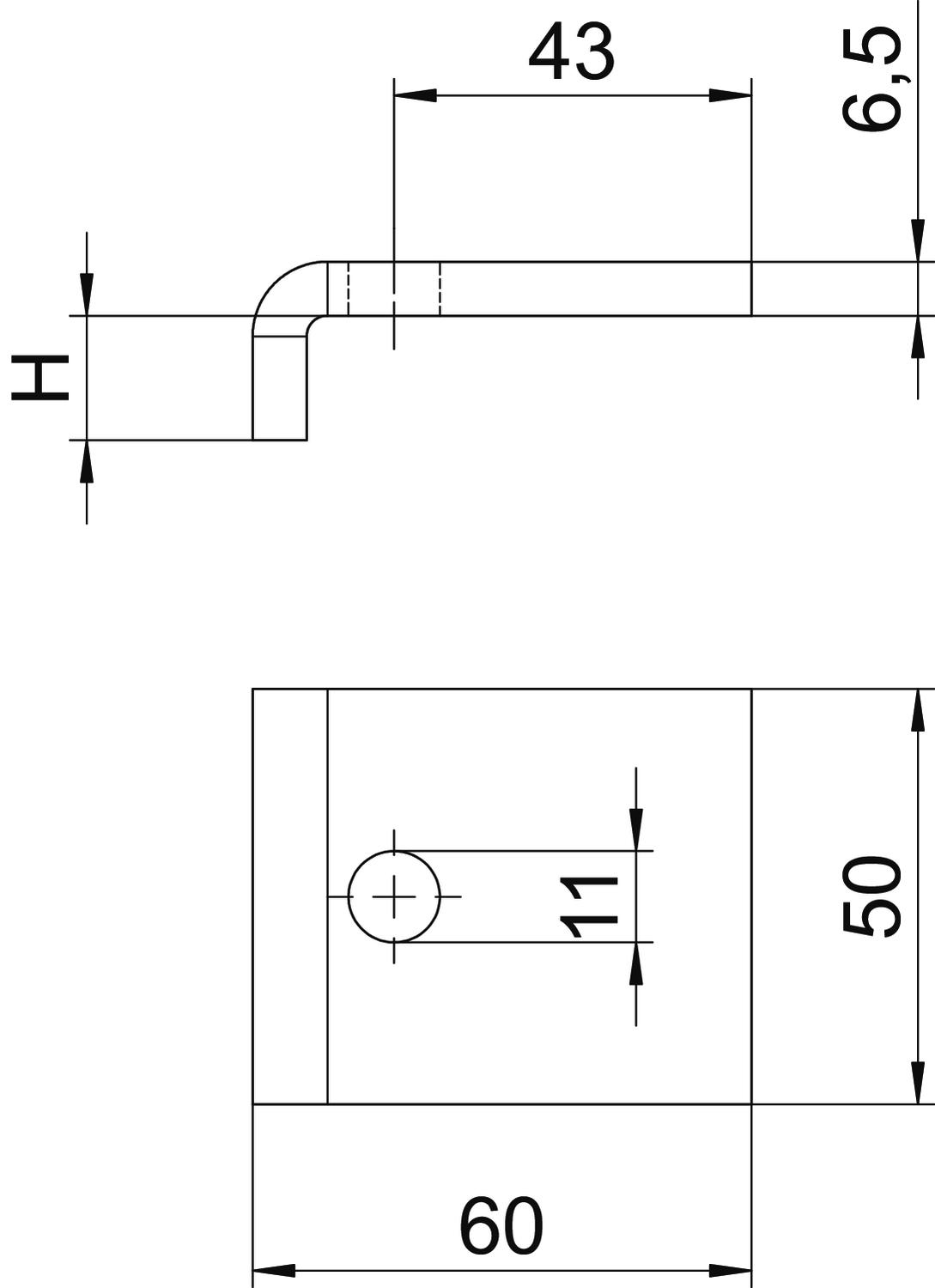

Bolt M10 x 40 Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 0,3328 kg CO₂e / 1 Piece Dimension 60x50 Height 10 mm Material Steel Surface Hot-dip galvanised Thread metric 10 - All types
- Downloads
-
Data sheet KL1 10 S FT / 6354106 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity KL1 10 S FT / 6354106 , 0.10MB , pdfREACH Declaration of conformity KL1 10 S FT / 6354106 , 0.12MB , pdfRoHS Declaration of conformity KL1 10 S FT / 6354106 , 0.12MB , pdfMounting instructions Mounting instructions, clamp fastening , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
