Clamping angle KWH FT 5 | 5.7
morepic-1 morepic-2 video-1

Clamping angle KWH FT

Item no. 6355021 | EAN 4012196194476

5.7 kN
Product description

Product description

Clamping angle, with hook-head bolt, type KWH, for fastening in the mounting rail, type MS5030.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bolt M12 x 40
Dimension 60x50
F in kN 5,7 kN
Material Steel
Surface Hot-dip galvanised
Thread metric 12

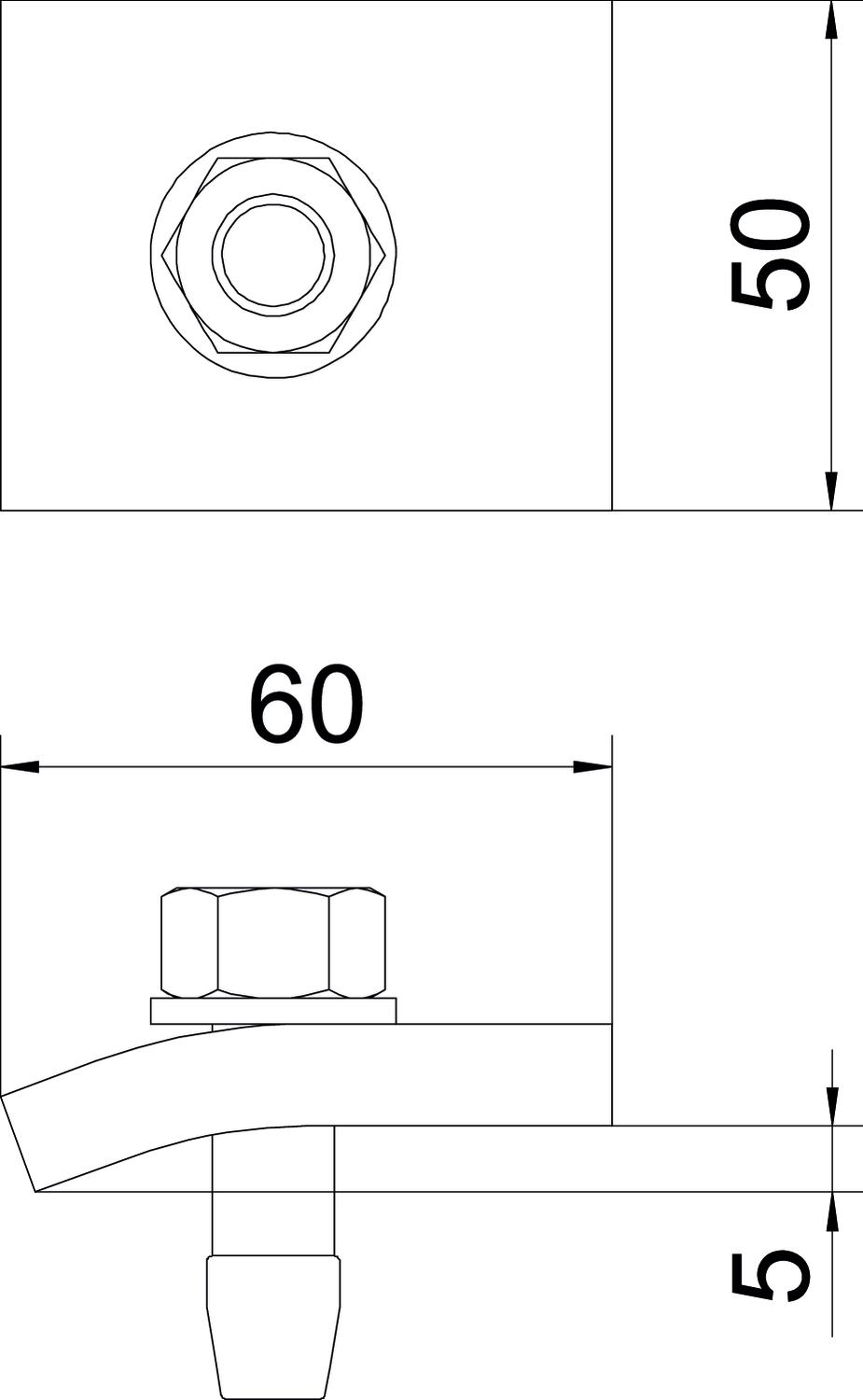

Dimensions

Height 5 mm
All types

All types

Types Height F in kN Item no. Quantity SSU
KWH 5 FT 5 mm 5.7 kN 6355021
10 Pair
KWH 10 FT 10 mm 5.7 kN 6355048
10 Pair

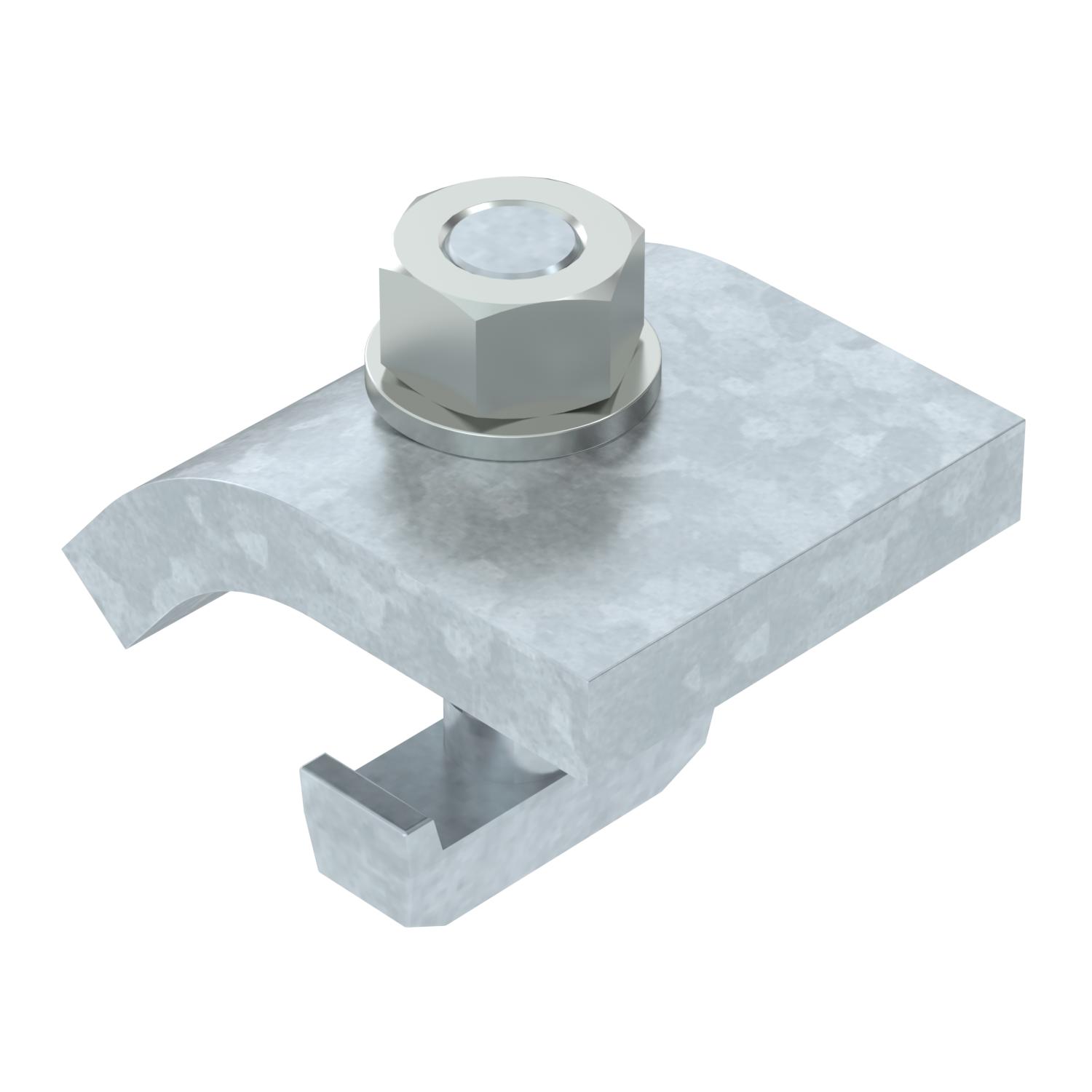

KWH 15 FT 15 mm 5.7 kN 6355056
10 Pair

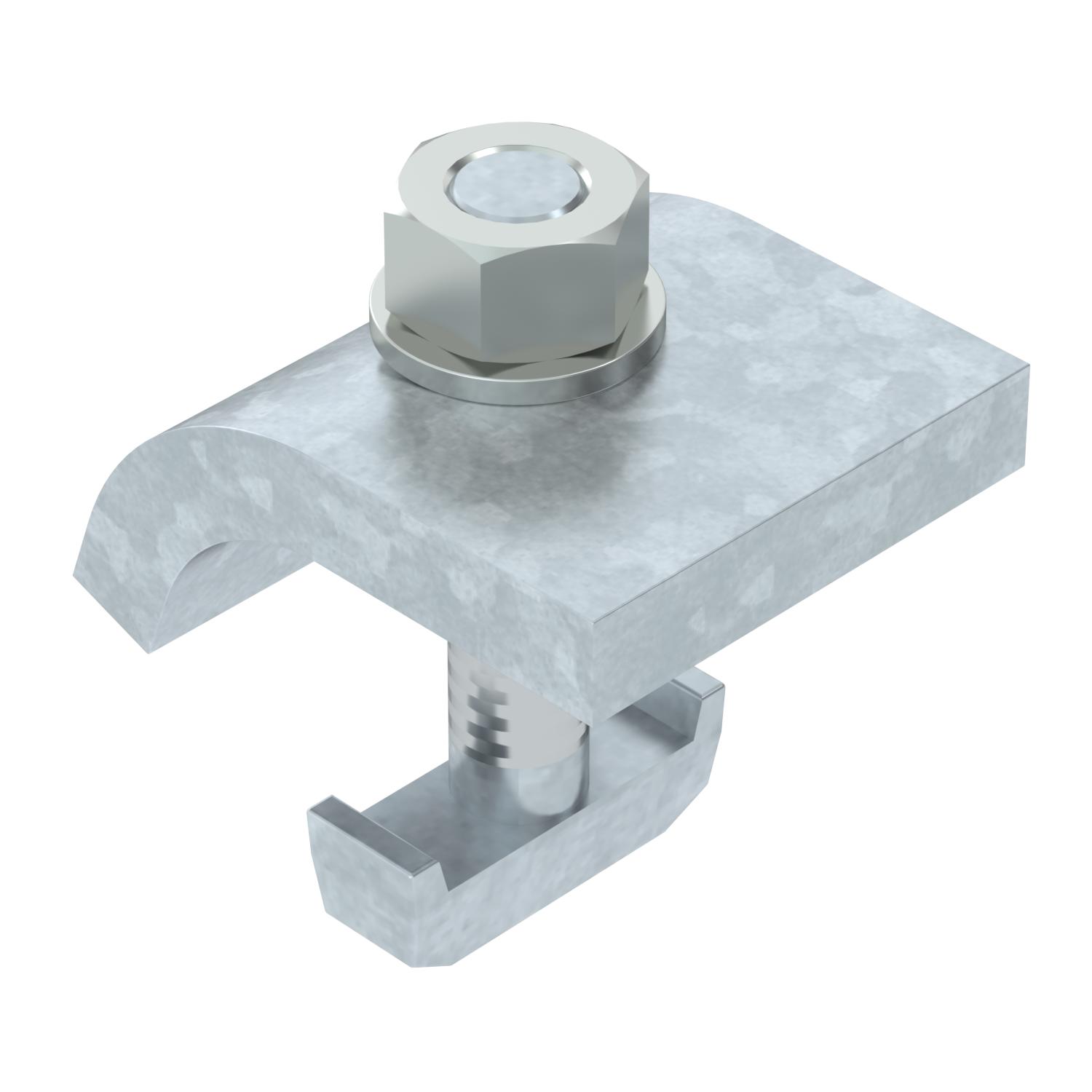

KWH 20 FT 20 mm 5.7 kN 6355064
10 Pair
KWH 25 FT 25 mm 5.7 kN 6355072
10 Pair
