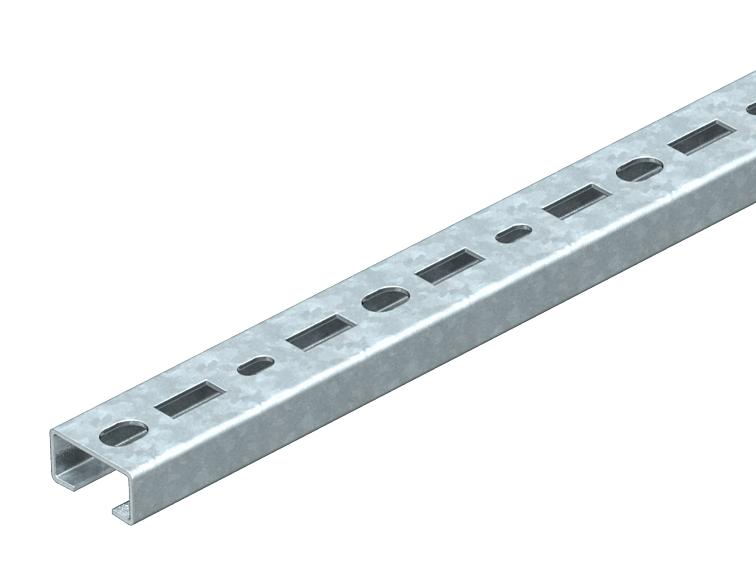

CM3015 profile rail, slot 16 mm, FT, perforated
Item no. 1109820 | EAN 4012195037217
- Product description
-
Product descriptionProfile rail, perforated, slot width 16 mm.
-
- Technical data
-
Technical data

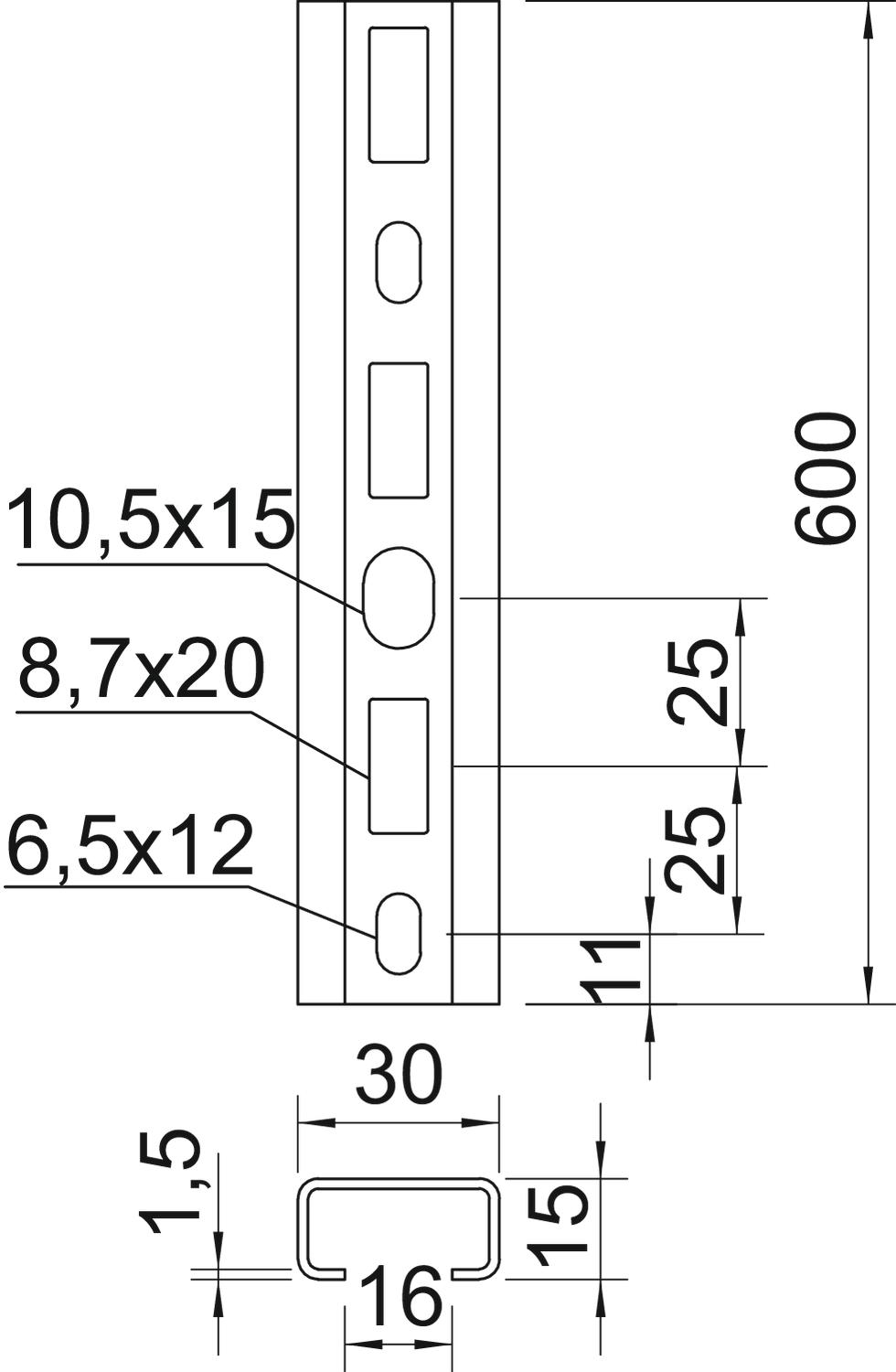

Breakable no CO₂ Footprint (GWP) Cradle-to-Gate 1,0054 kg CO₂e / 1 Piece Dimension 600x30x15 Dimension L 600 mm Drill hole spacing, centre 25 mm Height 15 mm Length 600 mm Maintain electrical functions no Material Steel Material thickness 1,5 mm Profile shape C profile Slot width 16 mm Static value A 0,8 cm² Static value ly 0,24 cm Static value lz 1,22 cm Static value Wy 0,29 cm² Static value Wz 0,81 cm² Surface Hot-dip galvanised Type of perforation Perforated back Version for Single profile Width 30 mm With perforation yes With toothing no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Slide nut ZL
ACMSN M8 ZL 1147060 100 piece
Hammer-head bolt ZL
ACMHB M8x30 ZL 1148060 50 piece - Downloads
-
