Collision guard for industrial pole

Item no. 6290422 | EAN 4012196191505

Item no. / Types	6290422 / ISS160160AS WA

Length	250 mm

Width	166 mm

Product description

Product description

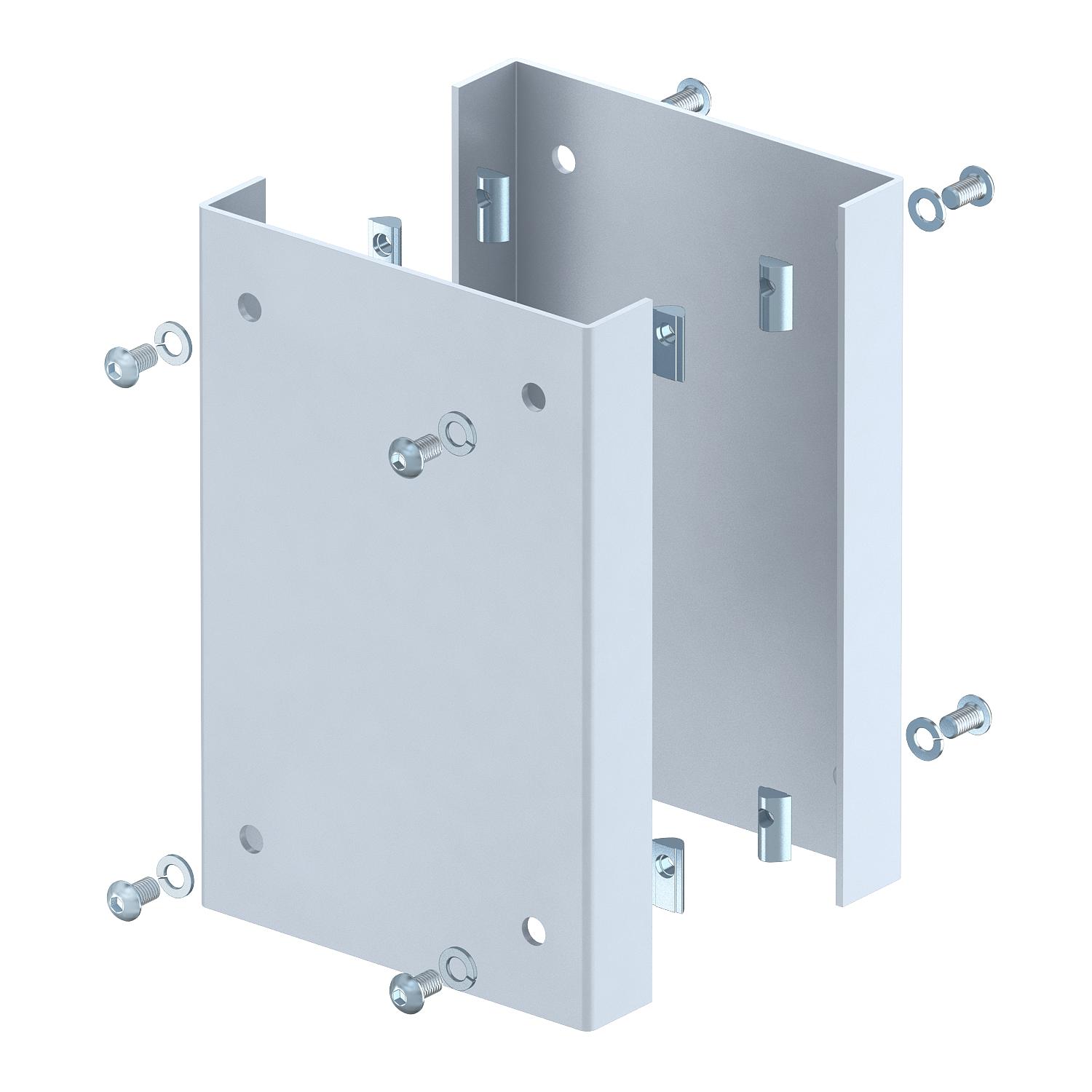

Collision guard as mechanical protection of the ISS industrial pole in the bottom area. The scope of delivery comprises of two U-shaped protection profiles made from 3 mm sheet steel and eight fastening screws with slot nuts to install on the pole profile.

Technical data

Technical data

Colour	White aluminium; RAL 9006
Dimension	250x166x33mm
Halogen-free	yes
Height	33 mm
Length	250 mm
Material	Steel

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-25 °C
Protection rating	IP30
Protection rating IK code	IK10
Type of accessory	Arrival protection
Width	166 mm

All types

All types

Types	Length	Width	Item no.	Quantity	SSU
ISS160160AS WA	250 mm	166 mm	6290422	piece	1 piece

Downloads

Data sheet ISS160160AS WA / 6290422 , 0.19MB , pdf

Brochure Service pole for industrial application , 2.00MB , pdf

Catalogue Installation systems , 28.45MB , pdf

EU declaration of conformity ISS160160AS WA / 6290422 , 0.13MB , pdf

UK Declaration of Conformity ISS160160AS WA / 6290422 , 0.14MB , pdf

Download

Label approval VDE symbol approval, service pole systems , 0.22MB , pdf

Download

Mounting instructions Mounting instructions, ISS160160 bracket for ISS-I , 4.01MB , pdf

Download

Mounting instructions Mounting instructions, ISS-I , 4.01MB , pdf

Download

Product graphic ISS160160AS WA / 6290422, 74.79 kB, jpg

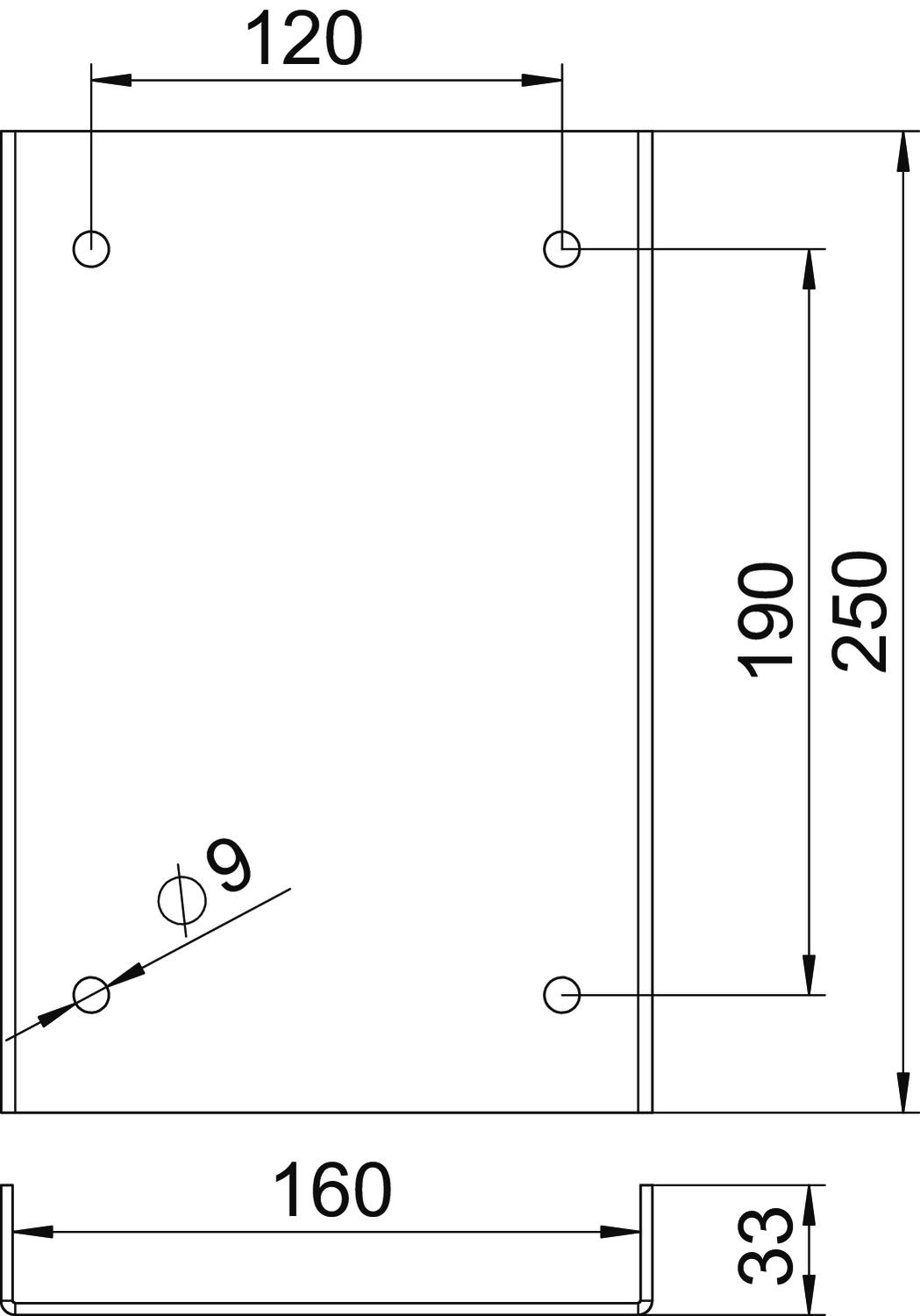

Scale drawing ISS160160AS WA / 6290422, 57.40 kB, jpg

ISS160160AS WA / 6290422

6290422_KSTP1.stp, 66.47 kB
