CombiController V50, plug-in arrester 280 V 1 | 280 | IP20

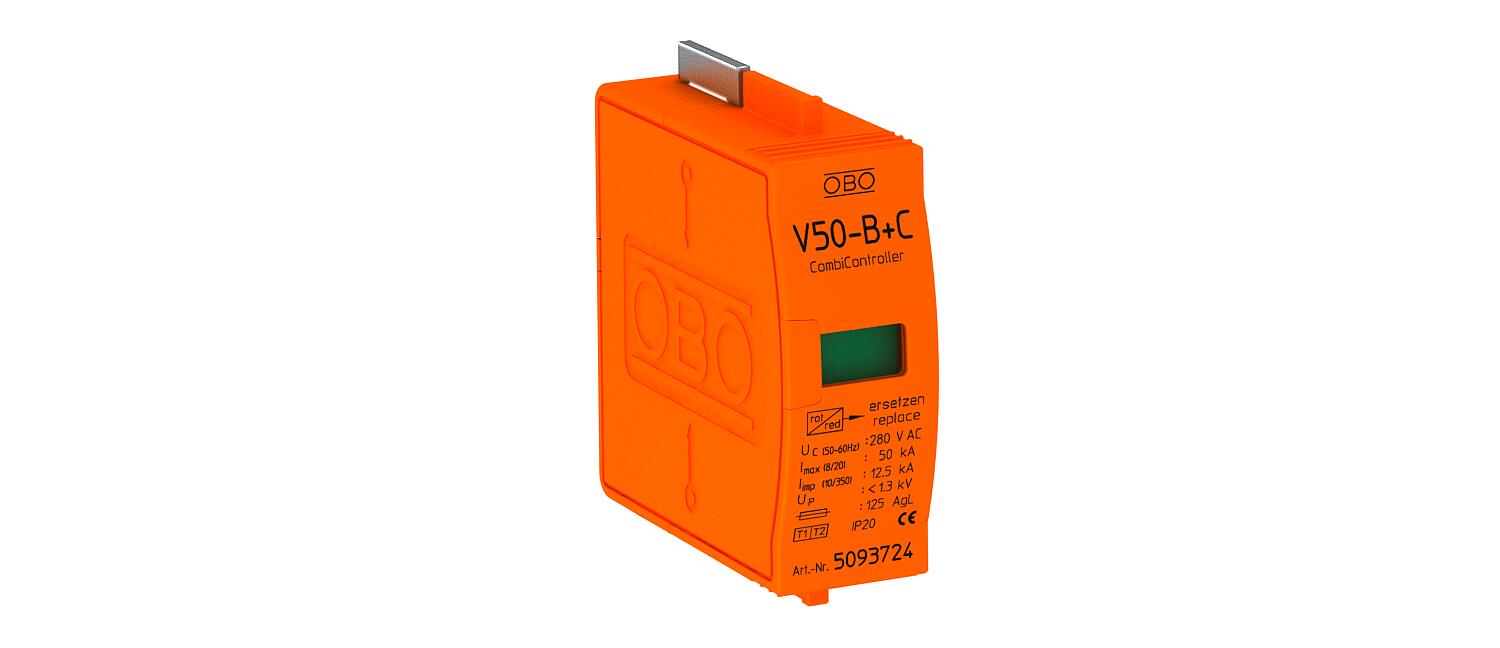

CombiController V50, plug-in arrester 280 V

Item no. 5093724 | EAN 4012195361954

Item no. / Types

Pole version	1

Maximum continuous voltage AC

Protection rating	IP20

Product description

Product description

CombiController upper part– type 1+2 combination arrester

• Plug-in upper part can be fitted into the base without tools or current interruption
• Incl. thermal and dynamic cut-off unit and visual display of defects
• High current conductivity and long service life
Plug-in arrester

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	30 kA
Blow-out	no
Conductor cross-section, flexible (fine-wire), min.	25 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
DC network form	no
Dimension	280V
Installation type	On basic element
Integrated back-up fuse	no
IT network form	no
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	12,5 kA
Lightning surge current (10/350)	12,5 kA
Max. mains-side overcurrent protection	125
Maximum back-up fuse	125 A
Maximum continuous voltage AC	280
Maximum continuous voltage DC	350
Maximum discharge current (8/20 μs)	50 kA
Nominal discharge current (8/20 µs)	30 kA
Nominal discharge current (8/20 µs) [L-N]	30 kA

Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	no
Pole number	1
Pole version	1
Protection level [L-N]	≤1,3
Protection rating	IP20
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
TN network form	no
TN-C network form	no
TN-C-S network form	no
TN-S network form	no
TT network form	no
Version for	1-pole upper part
