- Product description
-

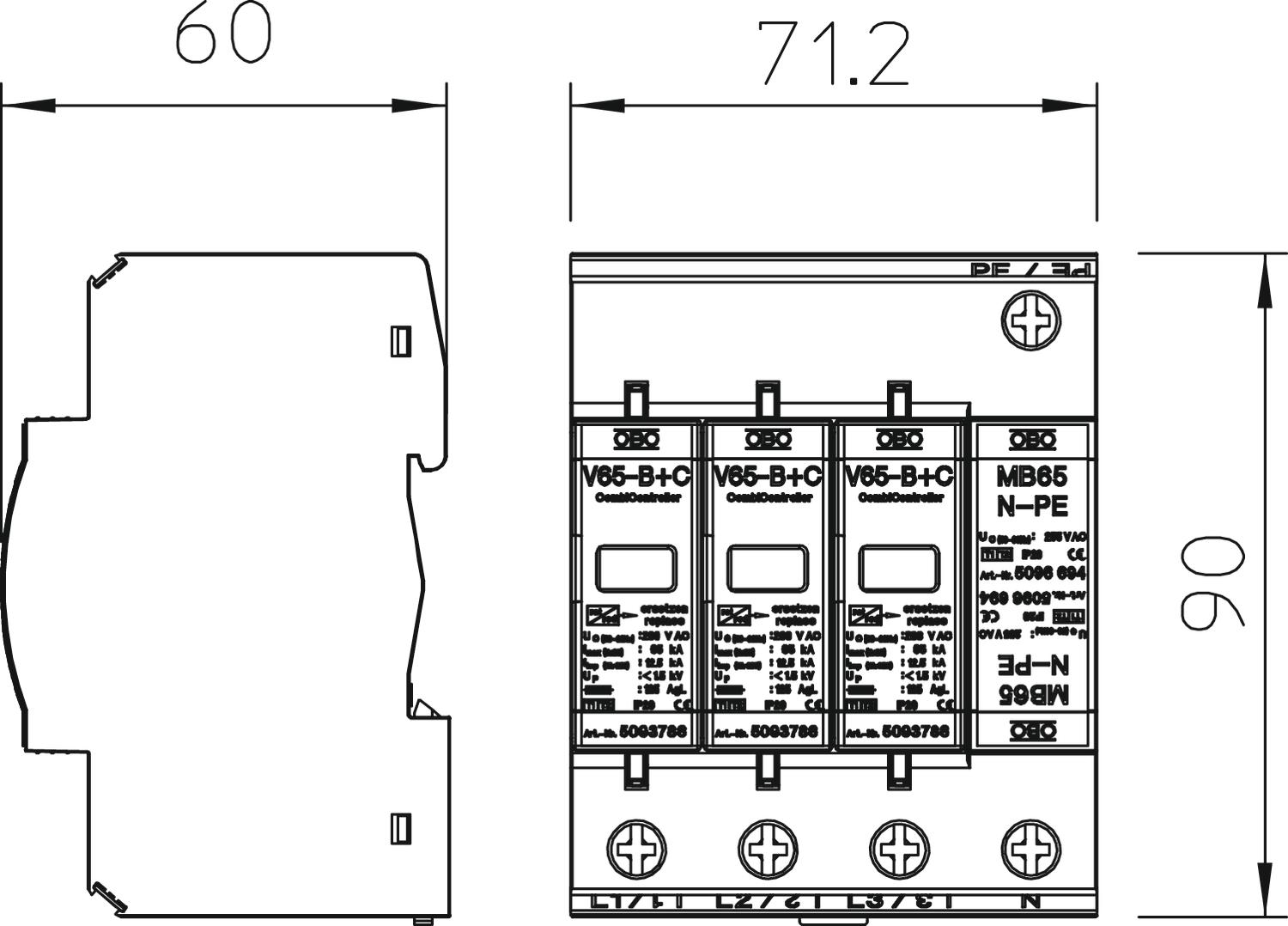

Product descriptionCombination arrester, lightning and surge arrester type 1+2
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity 12.5 kA (10/350) per pole and 65 kA (8/20) in total
• Universally suitable for TN and TT systems
• Complete unit, consisting of upper part and base, pre-mounted and ready for connection
• Plug-in arrester with dynamic cut-off unit
• With visual function display
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in distributor housings
• Labelled connections
Application: Lightning protection equipotential bonding in buildings, even those with external lightning protection of Class III and IV, and in standard distributor housings.
* Complete = Upper part and base
- Technical data
-
Technical data
Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 280V Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 12,5 kA Lightning surge current (10/350) 50 kA Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage (N-PE) 255 V Maximum continuous voltage AC 280 V Maximum discharge current (8/20 μs) 65 kA Maximum discharge current (8/20 μs) [L-N] 65 kA Maximum discharge current (8/20 μs) [N-PE] 65 kA Nominal discharge current (8/20 µs) 20 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal discharge current (8/20 µs) [N-PE] 30 kA Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3+N/PE Protection level [L-N] ≤1,5 Protection rating IP20 Response time <25 ns SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II TN network form yes TN-C-S network form yes TN-S network form yes TT network form yes - All types
- Downloads
-
Data sheet V65-B+C 3+NPE / 5093751 , 0.23MB , pdfCatalogue Überspannungsschutz , 28.42MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdf
