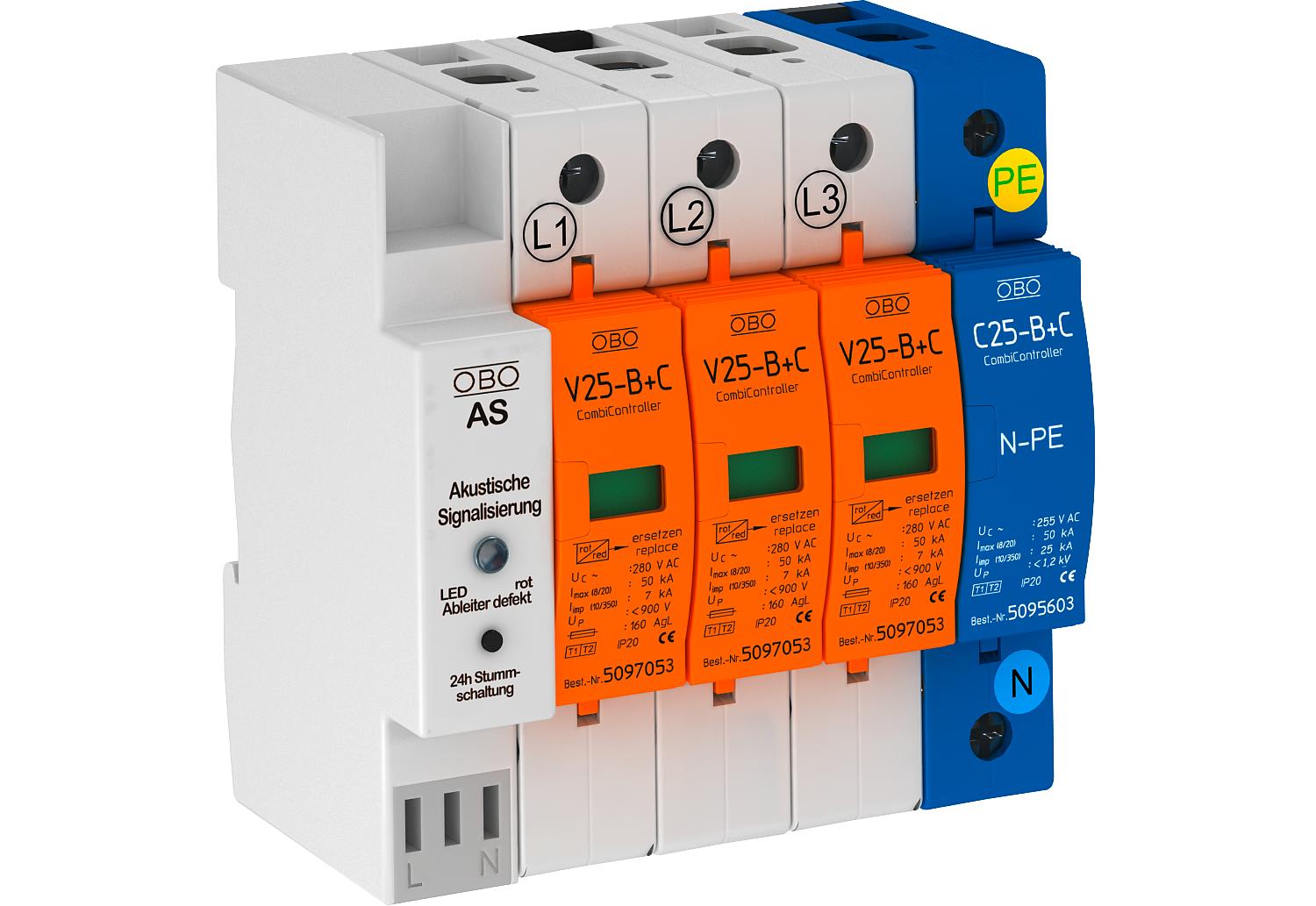

Combination arrester V25, 3-pole + NPE, with acoustic signalling

Item no. 5097432 | EAN 4012195617532

5097432 / V25-B+C 3+NPE+AS
3+N/PE
280 V
IP20
Product description
Product description

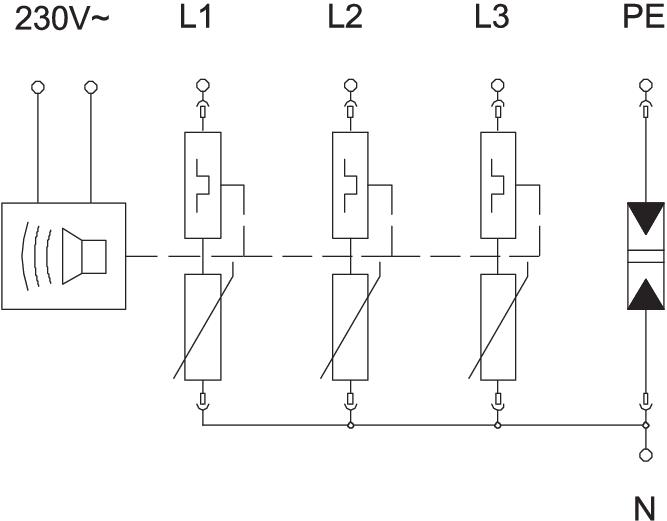

Combination arrester consisting of lightning current and surge arrester type 1+2

• Complete unit consisting of cover and base, pre-mounted and ready for connection
• Suitable for TN-S and TT network systems
• With audible signalling for function monitoring, signal tone can be turned off for 24 h
• Plug-in arrester with dynamic cut-off unit
• With visual function display
• Voltage protection level < 0.9 kV
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in standard distributor housings
• Labelled connections

Application example: Buildings with open-wire power supply or for setting up lightning protection equipotential bonding in residential buildings.
* Complete = Plug-in arrester and base
  • MAGYAR ELEKTROTECHNIKAI ELLENŐRZŐ INTÉZET Budapest, Hungary
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Combination protection device made of type 1 and type 2
  • Transition from LPZ 0 to LPZ 2
  • Acoustic signalling

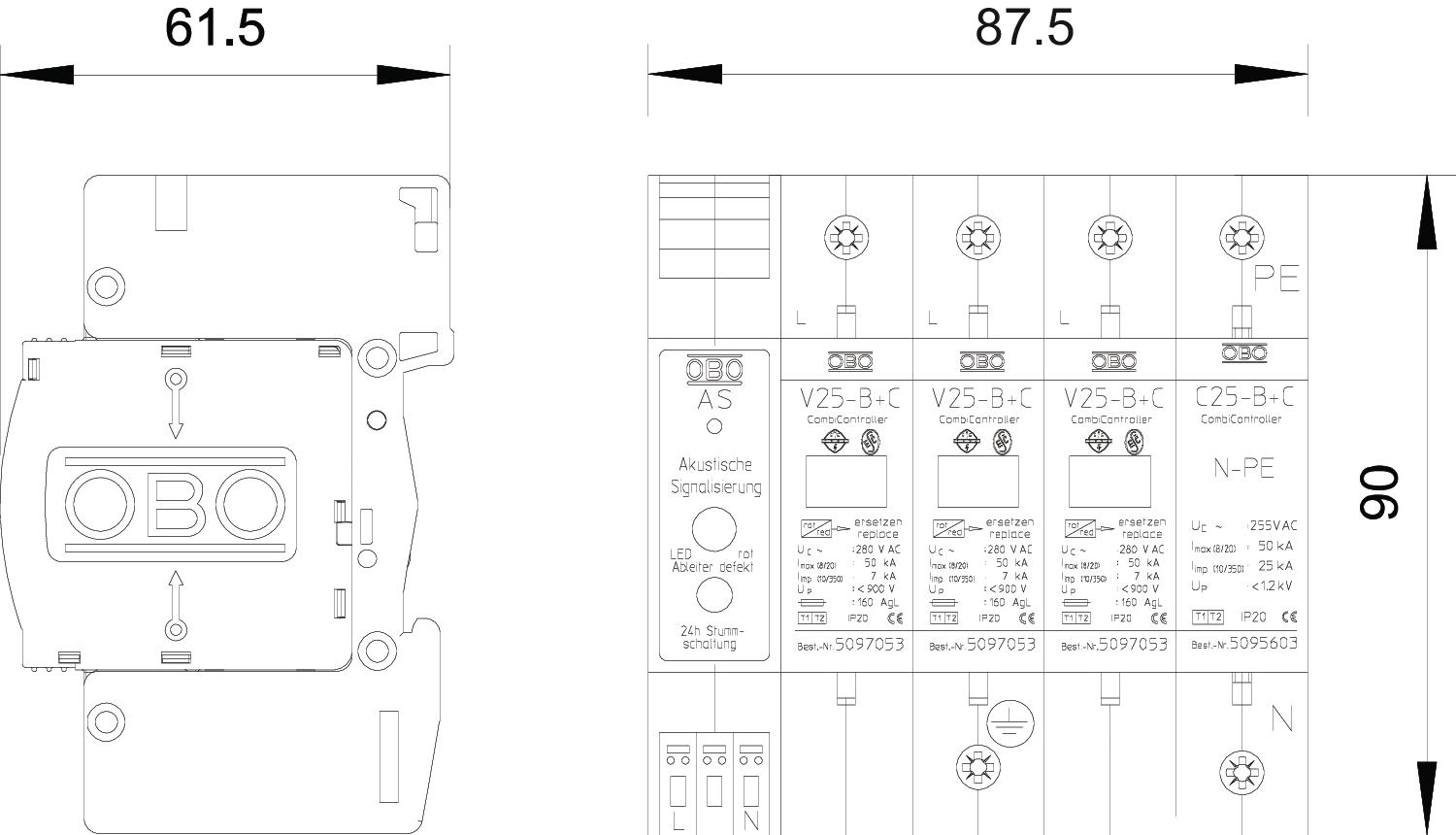

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total] 120 kA
Blow-out no
Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm²
Dimension 280V
Lightning protection zone LPZ 0→2
Lightning surge current (10/350 μs) 7 kA
Lightning surge current (10/350) 25 kA
Max. mains-side overcurrent protection 160
Maximum back-up fuse 160 A
Maximum continuous voltage AC 280 V
Maximum discharge current (8/20 μs) 50 kA
Network form Other
Nominal discharge current (8/20 µs) 30 kA
Nominal discharge current (8/20 µs) [N-PE] 30 kA
Nominal voltage AC (50/60 Hz) 230 V
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole number 3
Pole version 3+N/PE
Protection rating IP20
Remote signalling yes
Response time <25 ns
Signalling on device Optical and acoustic
SPD to EN 61643-11 Type 1+2
SPD to IEC 61643-1 Class I+II
TN network form yes
TN-C-S network form yes
TN-S network form yes
TT network form yes
Version for 3+NPE with AS
All types

All types

Types Pole version Maximum continuous voltage AC Protection rating Item no. Quantity SSU
V25-B+C 3+NPE+AS 3+N/PE 280 V IP20 5097432
1 piece
