Product description
Combination arrester, lightning and surge arrester type 1+2
• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• For TN systems
• Plug-in arrester with dynamic cut-off unit
• With visual function display
• Protection level decoded:705:Value:RAM1; kV
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in standard distributor housings
• Labelled connections
Application example: Buildings with open-wire power supply or for setting up lightning protection equipotential bonding in residential buildings.
* Complete = Plug-in arrester and base
-
- Technical data
-

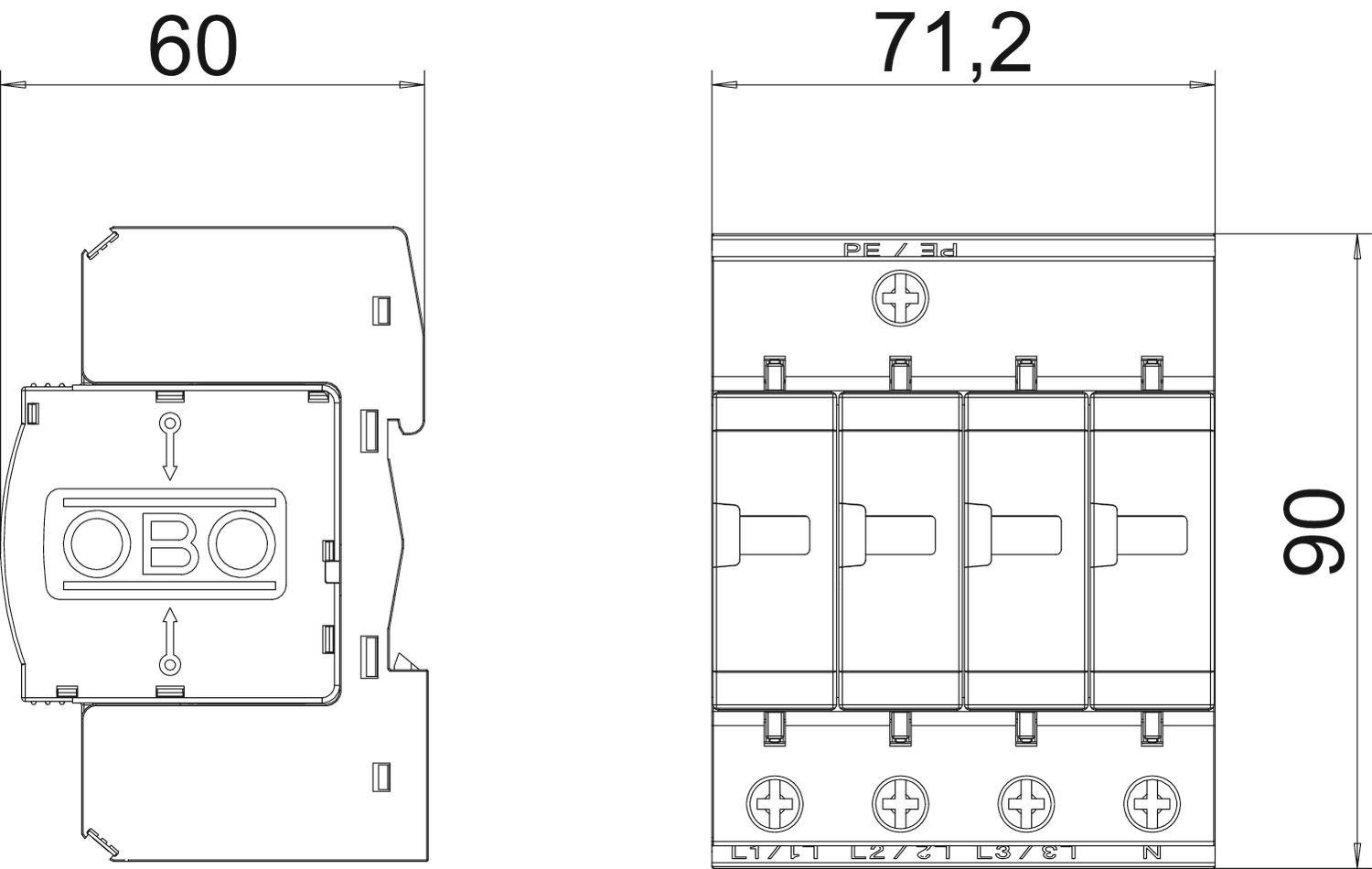

Technical data
Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Dimension 280V Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 7 kA Lightning surge current (10/350) 25 kA Maximum back-up fuse 160 A Maximum continuous voltage AC 280 Maximum continuous voltage DC 200 Maximum discharge current (8/20 μs) 50 kA Network form Other Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [L-N] 30 kA Nominal discharge current (8/20 µs) [N-PE] 30 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 4 Pole version 4 Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Test class, type 2 yes TN network form yes TN-C network form yes TN-C-S network form yes TN-S network form yes Version for 4-pole Connectivity options
Arrester surge current (8/20 µs) [total] 120 kA Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Max. mains-side overcurrent protection 160 - All types
- Downloads
-
Data sheet V25-B+C 4-280 / 5094426 , 0.18MB , pdfDeclaration of conformity V25-B+C 4-280 / 5094426 , 0.04MB , pdfREACH Declaration of conformity V25-B+C 4-280 / 5094426 , 0.12MB , pdfRoHS Declaration of conformity V25-B+C 4-280 / 5094426 , 0.12MB , pdfLabel approval EZU-Zertifikat V25 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdf
