Combination nut DIN 6923 V2A 17.9 | 8 | 13

morepic-1

morepic-2

Combination nut DIN 6923 V2A

Item no. 3156120 | EAN 4012195849643

Item no. / Types

Dimension d

Dimension h

WAF

Product description

Product description

Combination nut with pressed washer in accordance with EN 1661.

Technical data

Technical data

Dimension	M8
Dimension d	17,9 mm
Dimension h	8 mm
Halogen-free	yes
Left thread	no
Material	Stainless steel
Nut version	Nut
Screw system nut	Hexagon head

Self-locking	no
Surface	Bright, treated
Thread	M8
Thread metric	8
Thread type	Metric
WAF	13
With flange	yes

All types

All types

Types	Dimension d	Dimension h	WAF	Item no.	Quantity	SSU
KM M8 A2	17.9 mm	8 mm	13	3156120	piece	100 piece
KM M10 A2	21.8 mm	10 mm	15	3156122	piece	50 piece
KM M12 A2	26 mm	12 mm	18	3156126	piece	50 piece

Downloads

Data sheet KM M8 A2 / 3156120 , 0.21MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Product graphic KM M8 A2 / 3156120, 16.34 kB, jpg

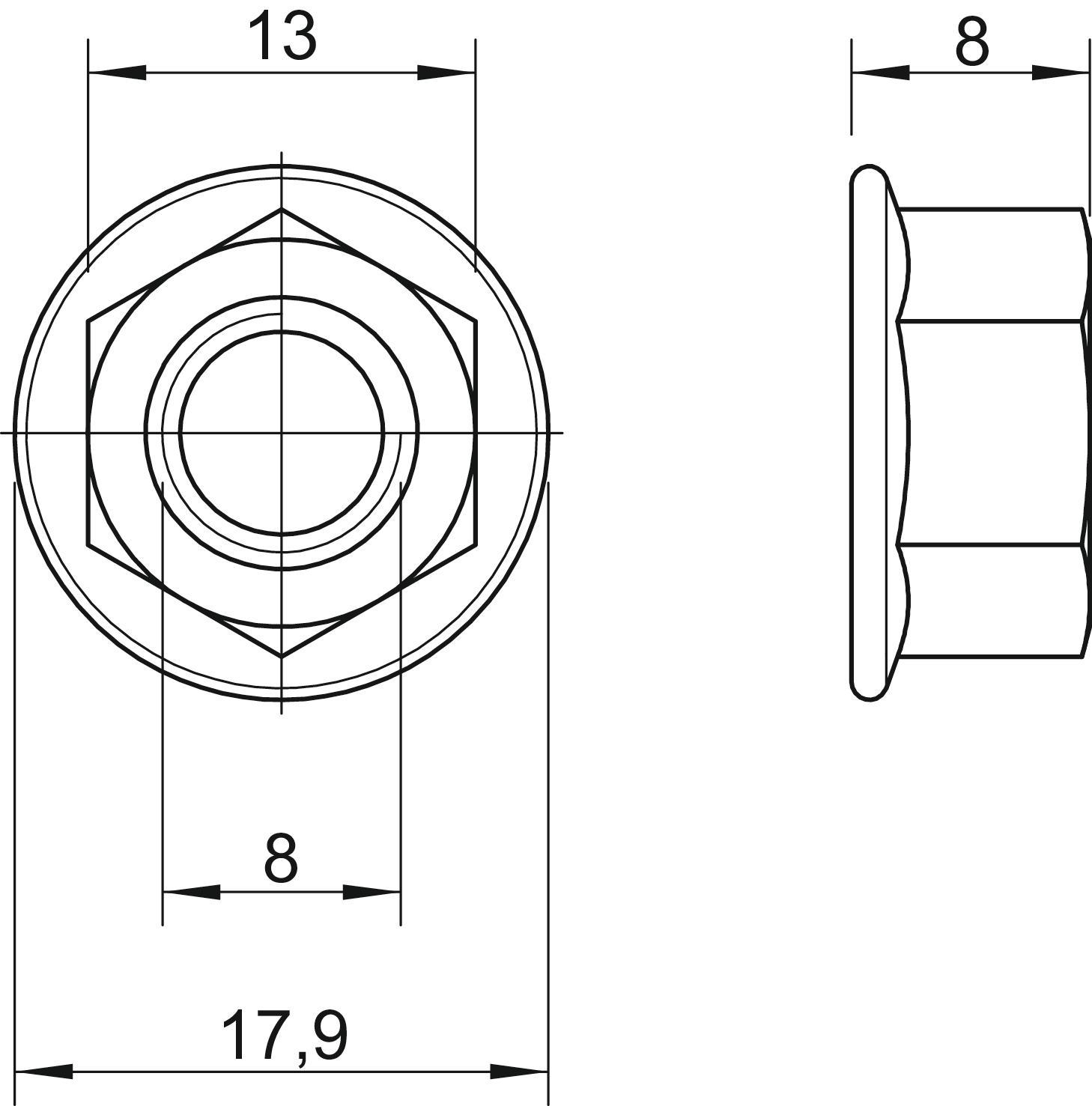

Scale drawing KM M8 A2 / 3156120, 107.06 kB, jpg

KM M8 A2 / 3156120
