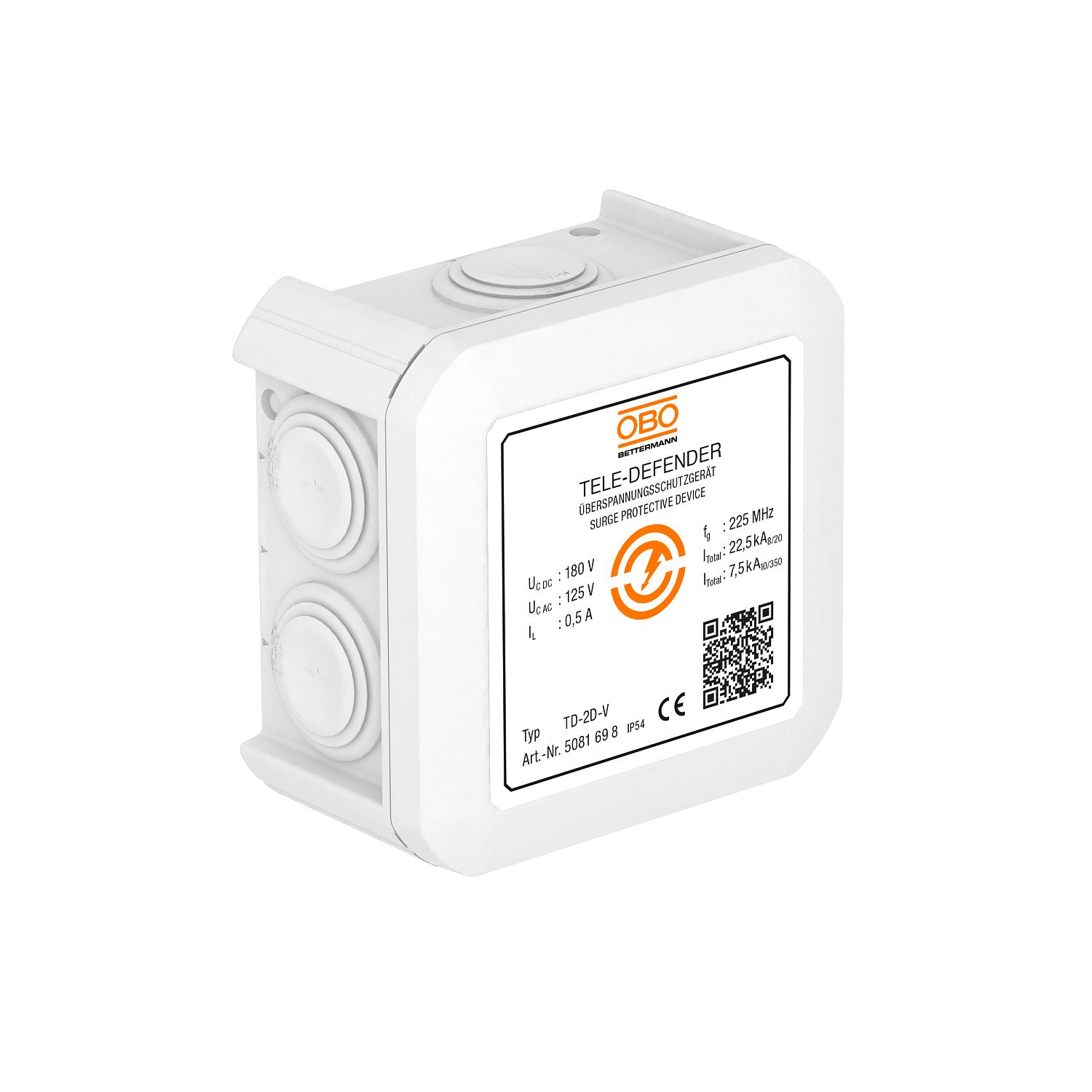

Combination protection device TD-2D-V for VDSL systems

Item no. 5081698 | EAN 4012196427444

5081698 / TD-2D-V
2
125
180
Terminal

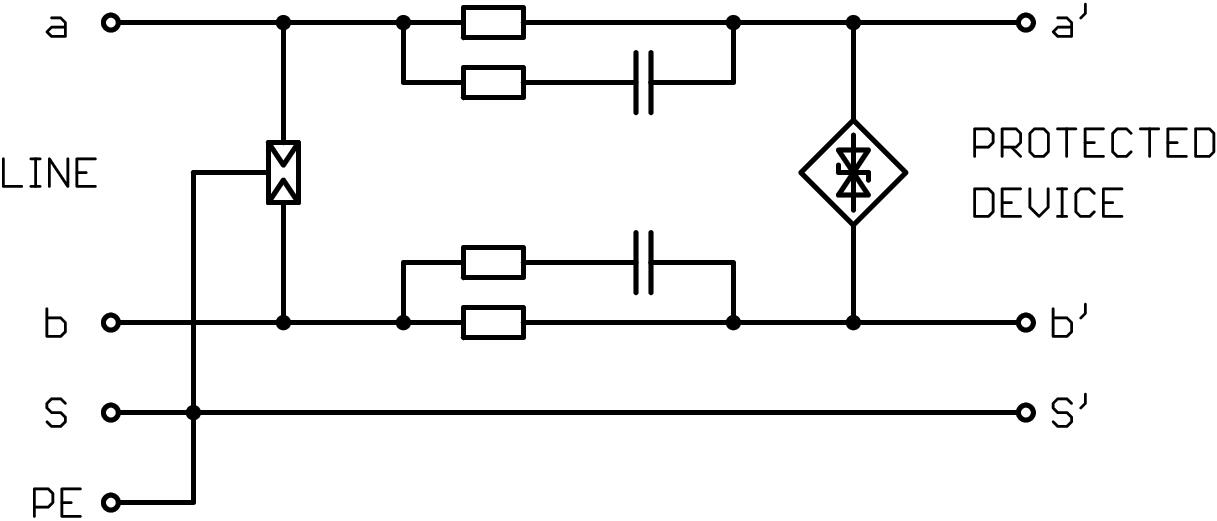

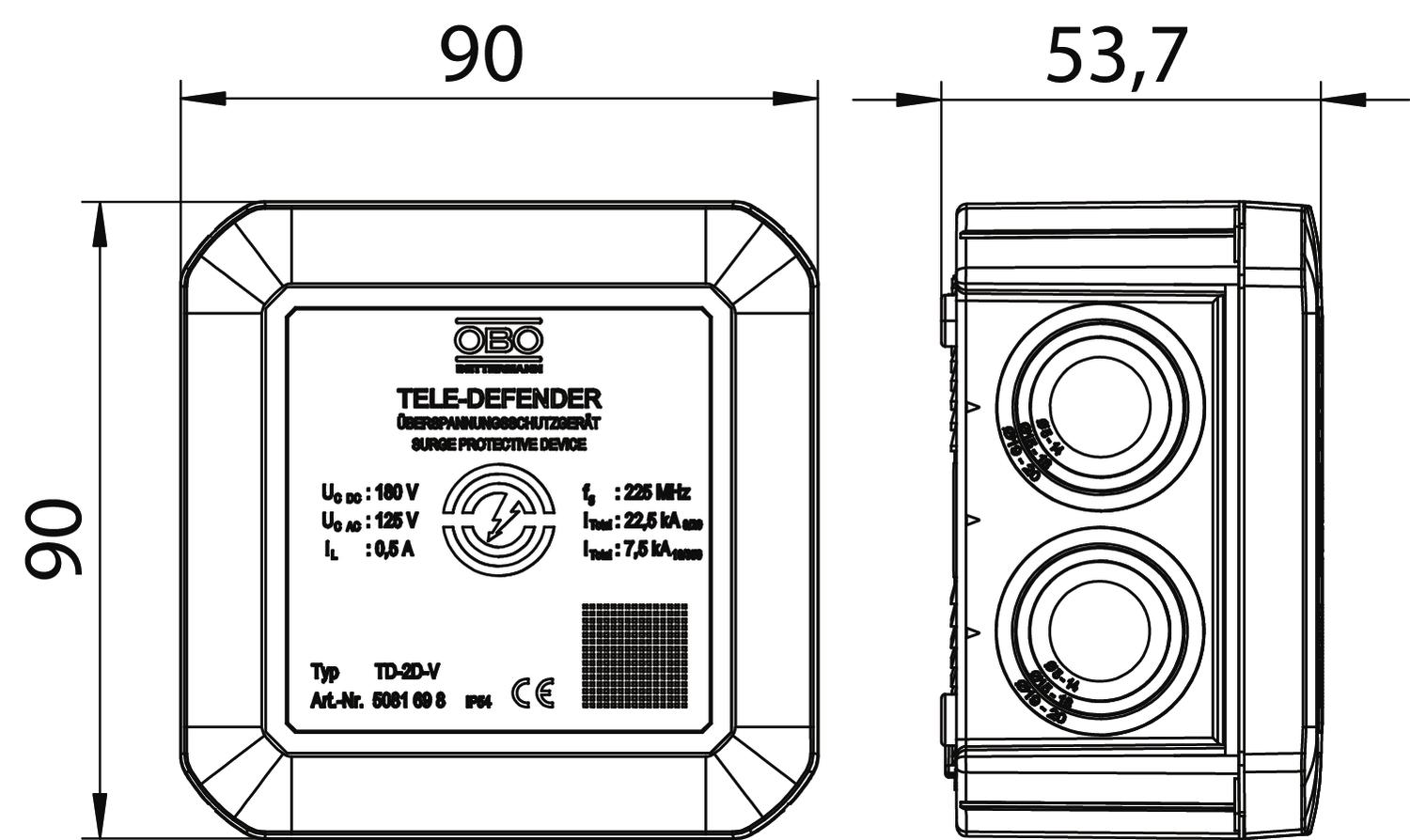

Product description

Product description

Data cable protection device for telecommunications equipment


• Low protection level at a high current load

• "Push-in" clamps for quick installation

• Bandwidth-optimised for secure transmission up to 225 MHz

• Surface mounting


Application: Ideal for all DSL systems, IP connections, ISDN or analogue telecommunications


  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Transition from LPZ 0 to LPZ 3
  • Integrated Service Digital Network, ISDN applications
  • Digital Subscriber Line, DSL applications
  • Analogue telecommunication
  • Installation electrotechnical expertise
Technical data

Technical data

Arrestor monitoring no
Cable type for surge protection devices Telecommunications line
Capacity (wire-earth) <20 pF
Capacity (wire-wire) <10 pF
Colour White
Connection cross-section, flexible, max. 1 mm²
Connection cross-section, flexible, min. 0,14 mm²
Connection cross-section, multi-wire, max. 1 mm²
Connection cross-section, multi-wire, min. 0,14 mm²
Connection cross-section, rigid, max. 1,5 mm²
Connection cross-section, rigid, min. 0,08 mm²
Cut-off frequency 225 MHz
Dimension 180V
Explosion-tested version no
Impulse durability wire-earth C2: 15 kV / 7,5 kA (8/20µs)
Impulse durability wire-wire C2: 15 kV / 7,5 kA (8/20µs)
Insertion loss ≤3 dB
Insulation resistance >10 MΩ
Kategorie Type 1+2+3 / D1+C2+C1
Lightning impulse current 2,5 kA
Lightning protection zone LPZ 0→3
Material Plastic
Maximum continuous voltage AC 125
Maximum continuous voltage DC 180
Nominal load current AC 0,35
Nominal load current DC 0,5 A
Number of poles 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system Terminal
Protection level wire-earth <600 V
Protection level wire-wire <350 V
Protection rating IP54
Screening Direct
Series resistance per wire 2,2 Ω ± 5 %
Shielding connection available yes
Signalling on device Without
SPD to IEC 61643-21 Class I+II+III / D1+C2+C1
Telecommunications contact no
Testing standard IEC 61643-21
Total discharge current (10/350) D1: 7,5
Total discharge current (8/20) 22,5 kA
All types

All types

Types Number of poles Maximum continuous voltage AC Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
TD-2D-V 2 125 180 Terminal 5081698
1 piece
