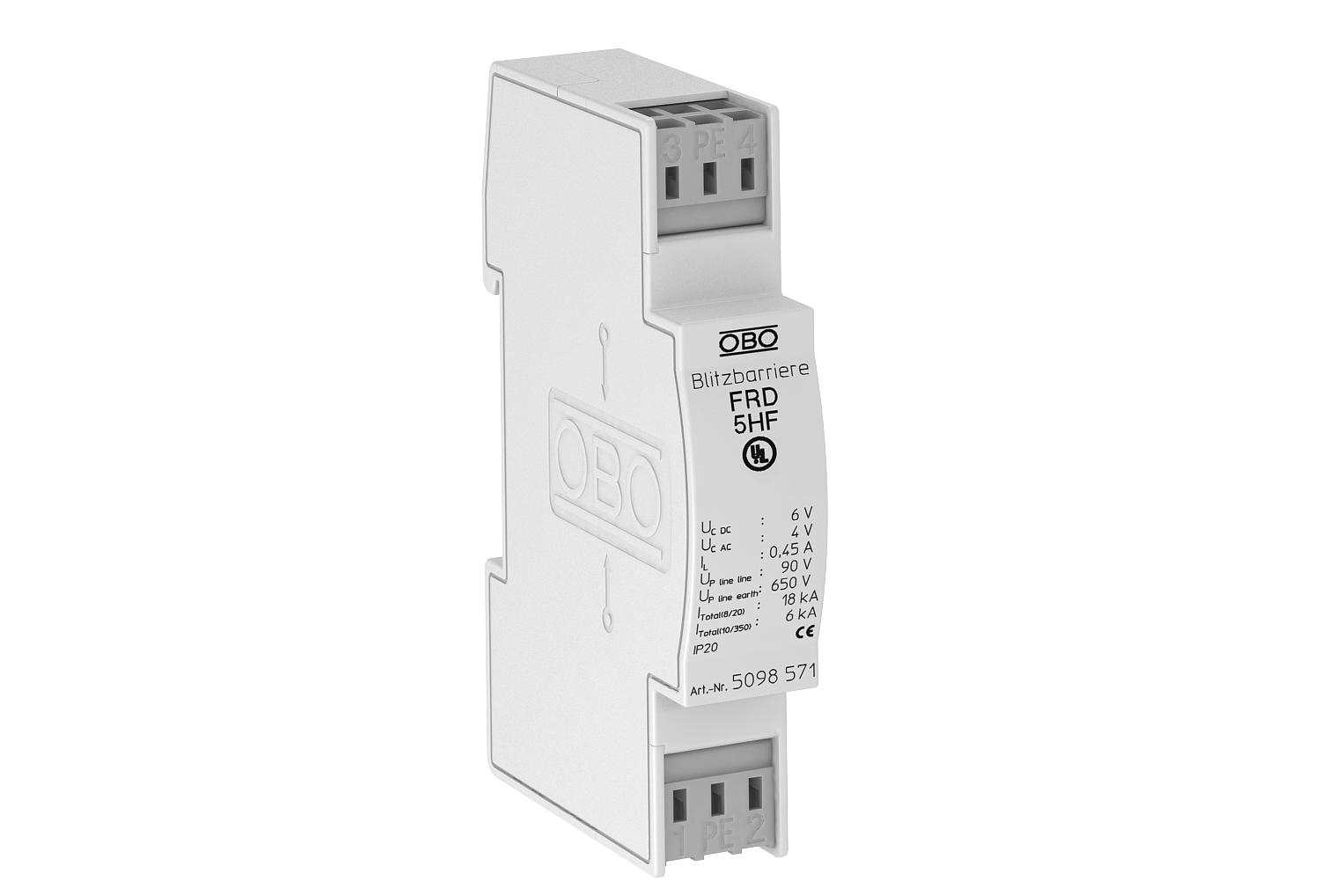

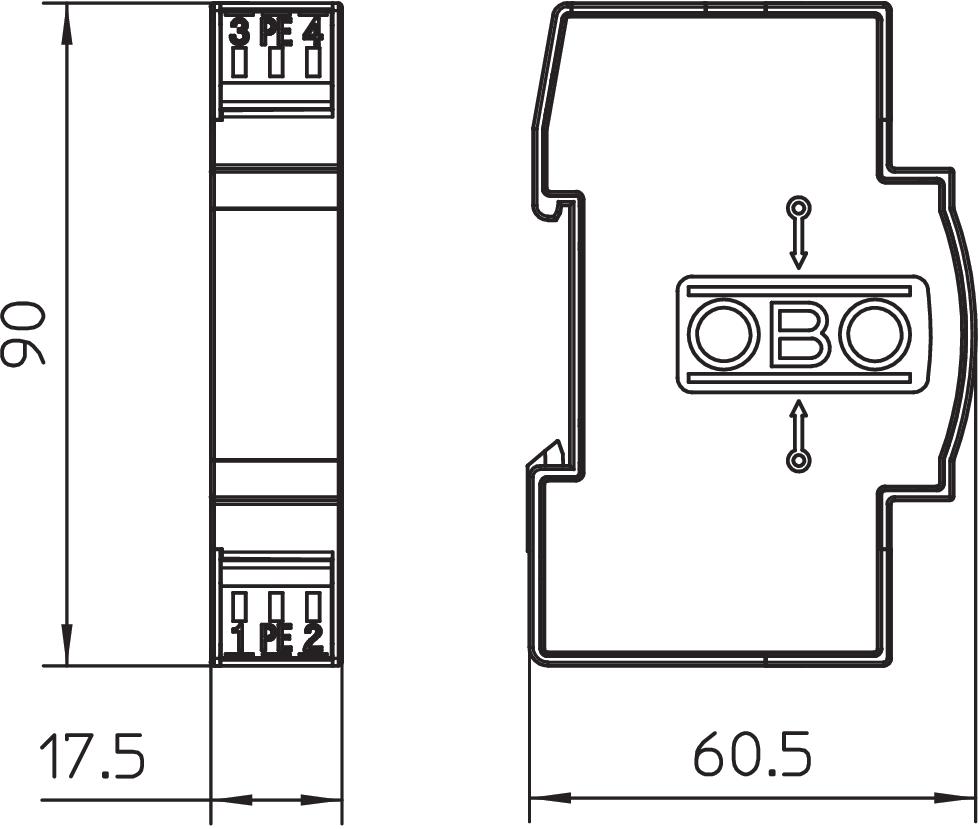

Combination protection for two-core systems with HF applications 5 V

Item no. 5098571 | EAN 4012195578345

2
Terminal
Product description

Product description

Surge protection for use in measuring, control and regulation systems.


• Basic, medium and fine protection

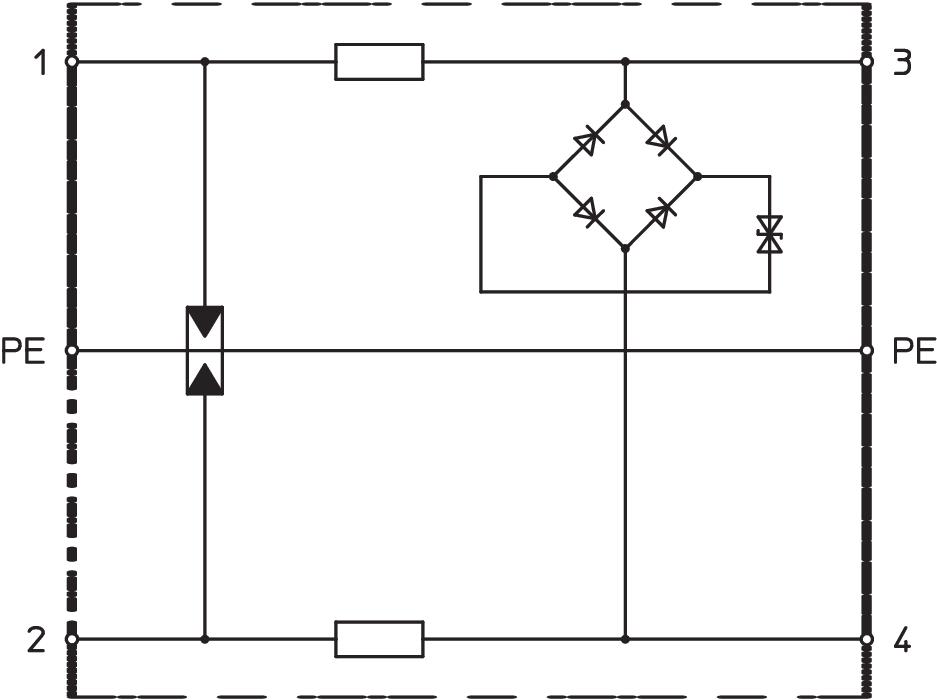

• Two-stage protection circuit with high lightning current carrying capacity

• High transmission frequency up to 100 MHz

• Suitable for all bus systems (e.g. Profibus)

• With installation-friendly, screwless connection terminals

• In space-saving 17.5 mm grid


Application: Multipurpose use on any 35 mm DIN profile rail in every commercially available distribution housing.
  • Underwriters Laboratories Inc., USA
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Transition from LPZ 0 to LPZ 3
  • Measuring, controlling and regulating systems
  • Installation electrotechnical expertise
Technical data

Technical data

Approvals UL
Arrestor monitoring no
Capacity (wire-earth) <40 pF
Capacity (wire-wire) <40 pF
Connection cross-section, flexible, max. 2,5 mm²
Connection cross-section, flexible, min. 0,14 mm²
Connection cross-section, multi-wire, max. 2,5 mm²
Connection cross-section, multi-wire, min. 0,14 mm²
Connection cross-section, rigid, max. 2,5 mm²
Connection cross-section, rigid, min. 0,14 mm²
Cut-off frequency 100 MHz
Dimension 5V AC
Division unit TE (17.5 mm) 1
Earthing via: Terminal
Explosion-tested version no
Impulse durability wire-earth C2: 18 kV / 9 kA (8/20µs)
Impulse durability wire-wire C2: 18 kV / 9 kA (8/20µs)
Insertion loss ≤3 dB
Insulation resistance >10 MΩ
Kategorie Type 1+2+3 / D1+C2+C1
Lightning impulse current 3 kA
Lightning protection zone LPZ 0→3
Maximum continuous voltage AC 4
Maximum continuous voltage DC 6
Nominal discharge current (8/20 µs) 9 kA
Nominal load current AC 0,32
Nominal load current DC 0,45 A
Nominal voltage 5 V
Number of poles 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system Terminal
Protection level wire-earth <650 V
Protection level wire-wire <90 V
Protection rating IP20
Series resistance per wire 2,2 Ω ± 10 %
Shielding connection available no
SPD to IEC 61643-21 Class I+II+III / D1+C2+C1
Telecommunications contact no
Testing standard IEC 61643-21
Total discharge current (10/350) D1: 6
Total discharge current (8/20) 18 kA
All types

All types

Types Number of poles Maximum continuous voltage AC Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
FRD 5 HF 2 4 6 Terminal 5098571
1 piece
FRD 24 HF 2 19 28 Terminal 5098575
1 piece
