Compensation ring – AUS GR 80

morepic-1

Compensation ring – AUS GR 80

Item no. 7400838 | EAN 4012195647713

Product description

Product description

Compensation ring US80

Technical data

Technical data

Dimension	Ø95 H=28
Material	Cast aluminium
Suitable for cavity floor installation	no

Suitable for raised floor installation	no
Suitable for underfloor ducts	yes
Version for	Round

All types

All types

Types		Item no.	Quantity	SSU
AUS GR 80		7400838	piece	1 piece

Downloads

Data sheet AUS GR 80 / 7400838 , 0.11MB , pdf

Catalogue Underfloor systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, underfloor systems , 2.10MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

Declaration of conformity AUS GR 80 / 7400838 , 0.13MB , pdf

Selection aid Quick selection for screed-covered duct system with underfloor box in system size 350-3 , 1.24MB , pdf

Selection aid Quick selection for screed-covered duct system with underfloor box in system size 250-3 , 1.07MB , pdf

Mounting instructions Mounting instructions, GESRM2 , 2.00MB , pdf

Download

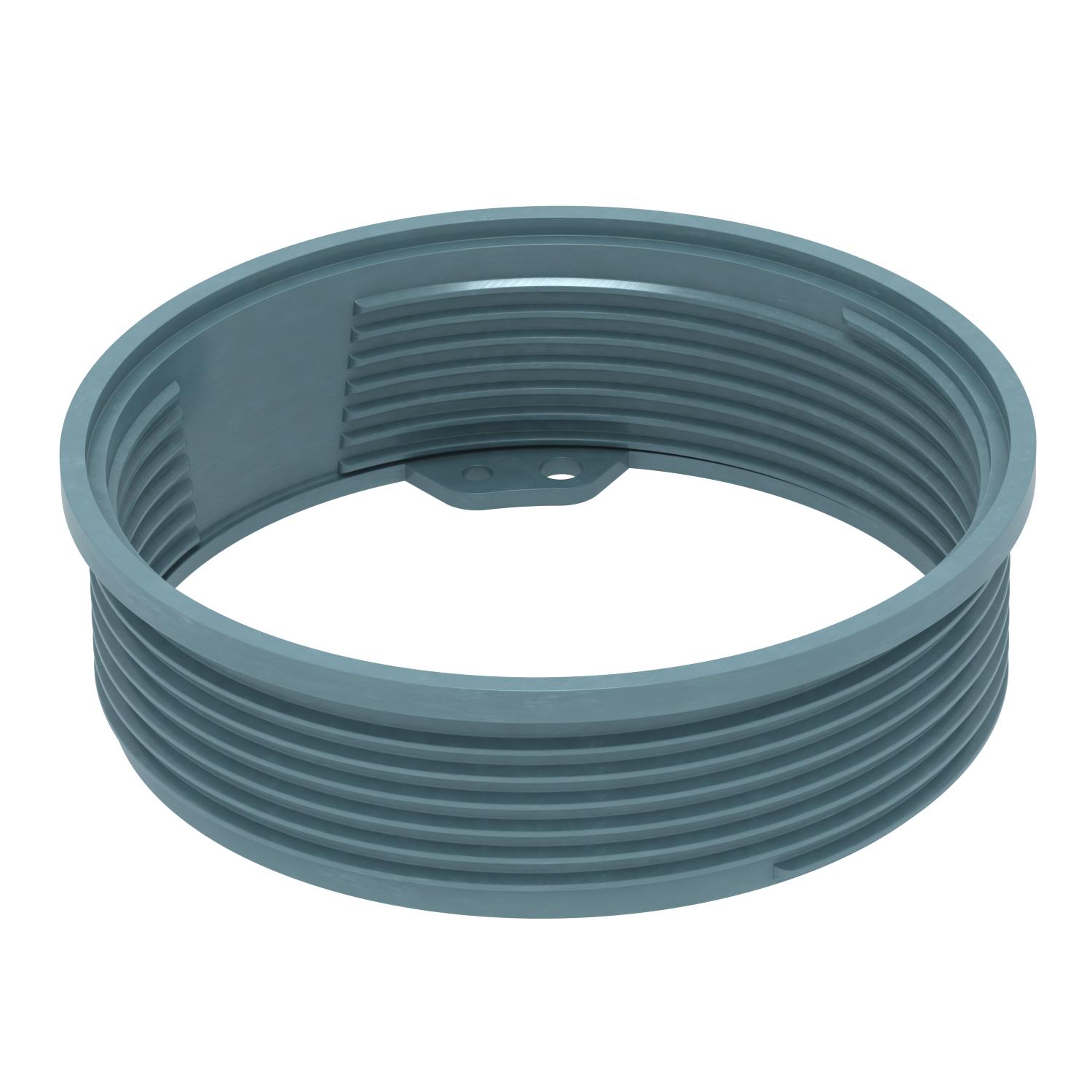

Product graphic AUS GR 80 / 7400838, 100.83 kB, jpg

AUS GR 80 / 7400838
