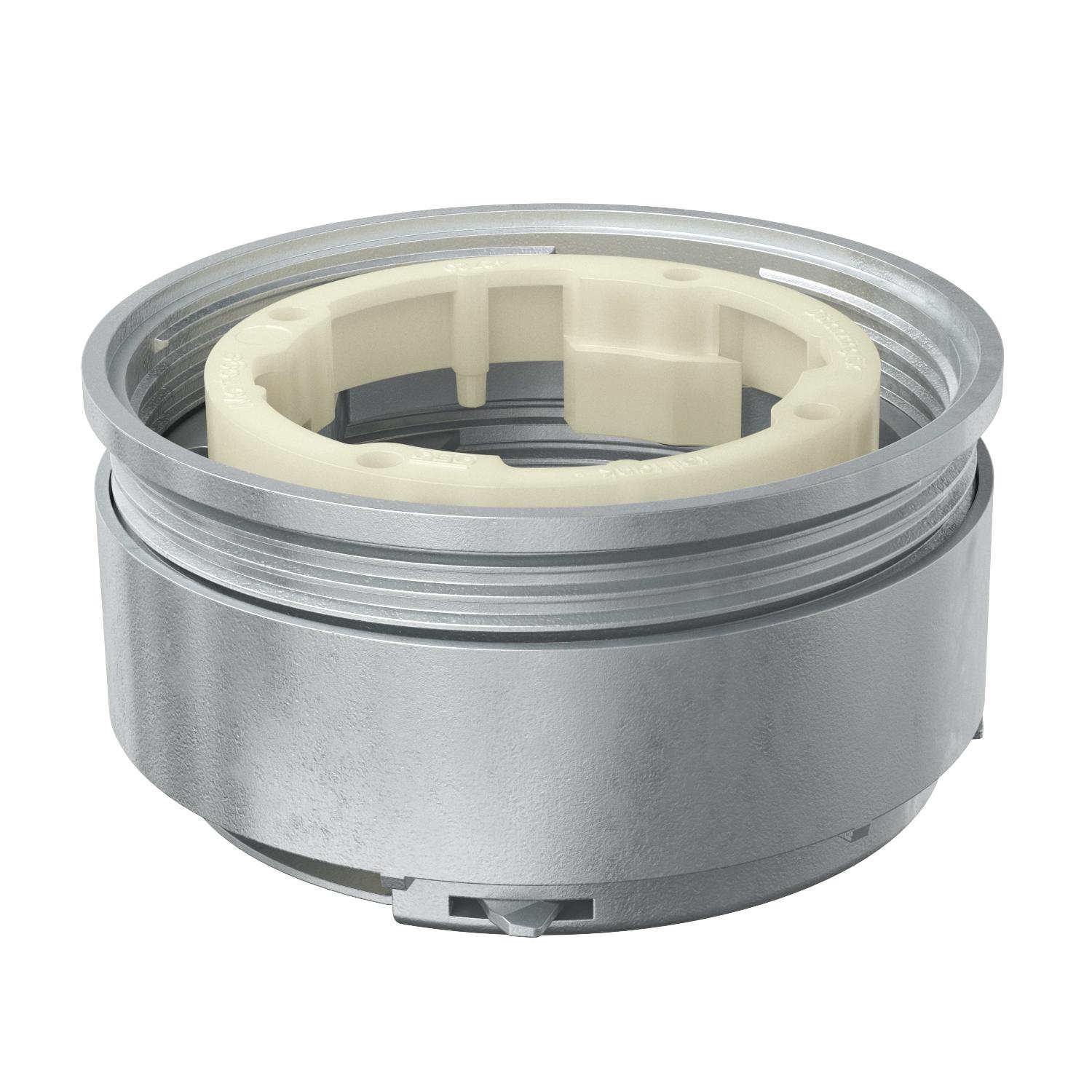

Compensation ring – US80 32-6

Item no. 7408570 | EAN 4012195116387

Product description

Product description

For the installation of an accessory or the set-up of a Telitank for screed-covered ducting drilled at a later date. Screed height over the ducting 32 - 45 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

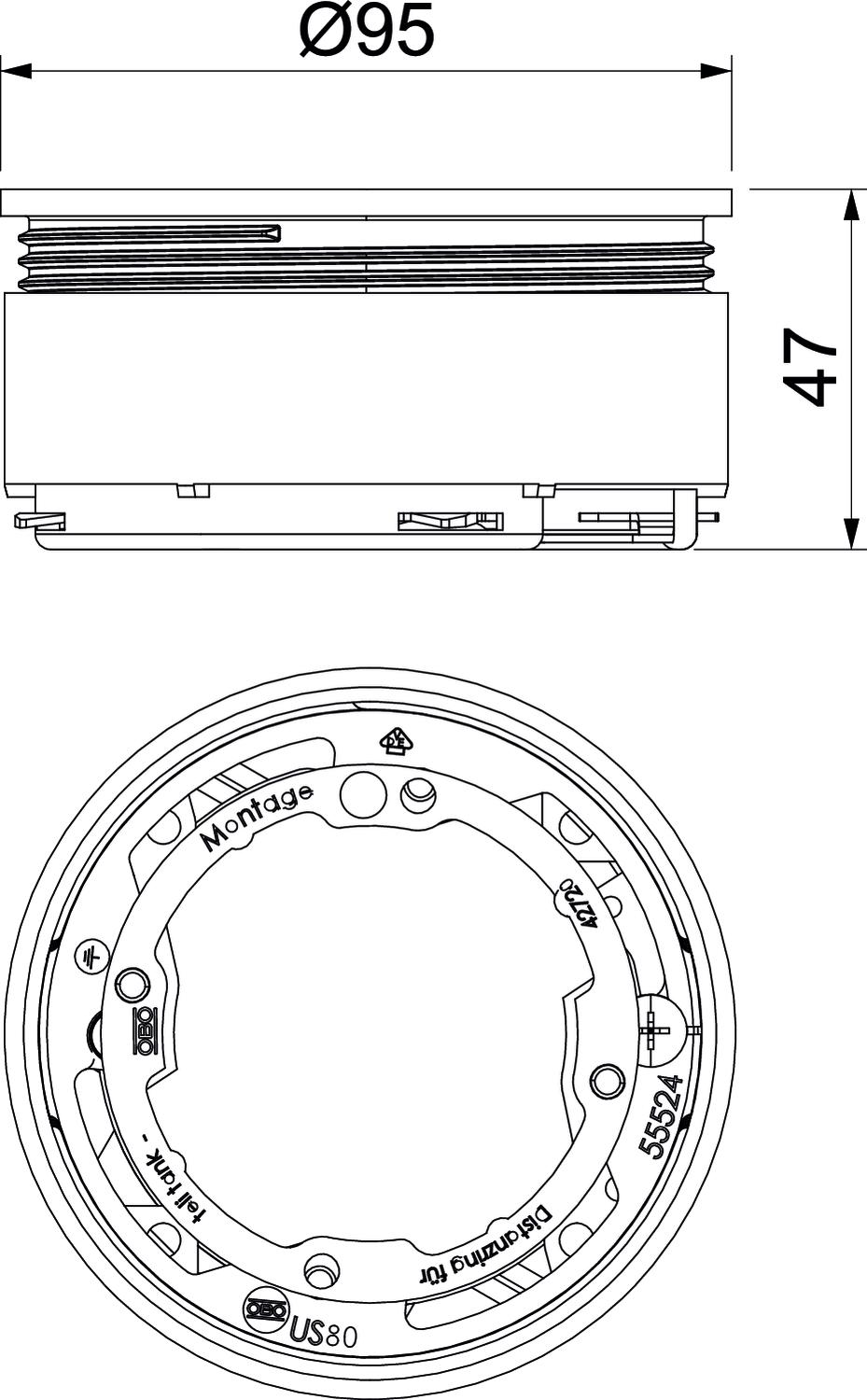

Cover version Round
Expansion option For installation of accessories
For pipe connection no
Material Die-cast zinc
Screed height, max. 45 mm
Screed height, min. 32 mm
Seal installation option no
All types

All types

Types Item no. Quantity SSU
US80 32-6 7400832
25 piece
US80 32 7408570
12 piece
Downloads

Download

Download
Download

No invitation to tender text is available for this product.
