Complete set for external applications
Item no. 7203150 | EAN 4012195921851
- Product description
-

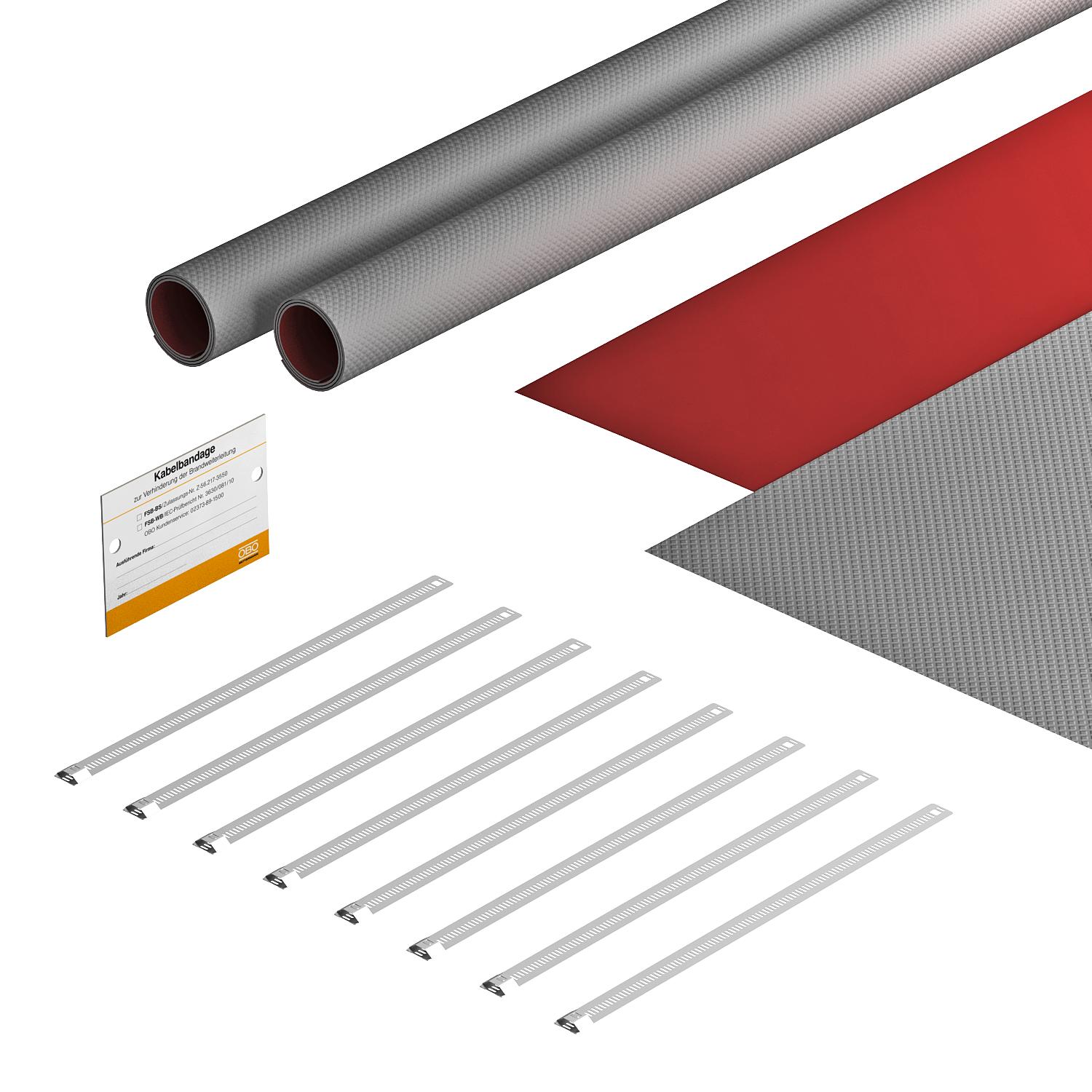

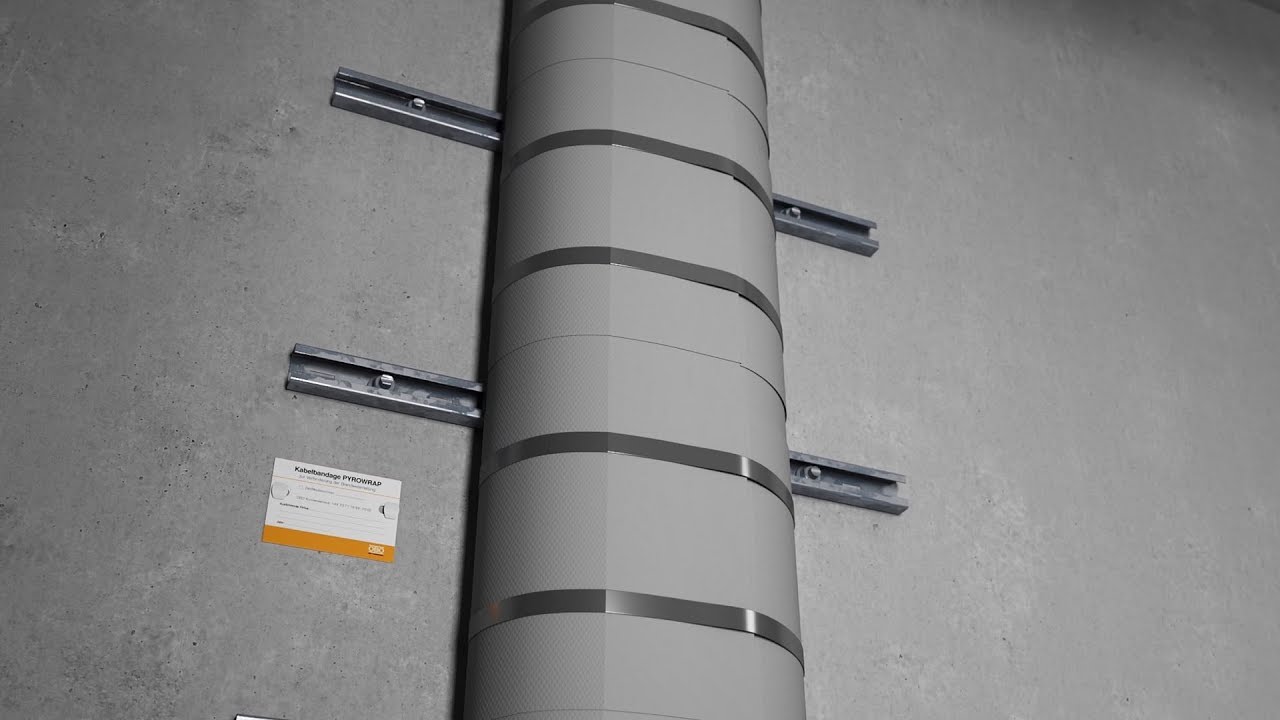

Product descriptionComplete set for covering cable bundles or cable support systems without cover to prevent a fire spreading. Application in outdoor areas. Each of the sets contains 4 sections of the weather-resistant cable bandage PYROWRAP® Wet, 8 metal strip clips and an identification plate. Sufficient for approx. 2 m length.
Dimension data: Sections of the FSB-WB bandage
Scope of the surrounding cable support systems:
FSB-K32 maximum 320 mm
FSB-K82 maximum 820 mm
(including min. 5 cm bandage overlap)
Use with photovoltaic cables over firewalls may require the approval of the local construction authorities. A positive special report is available.
-
- Technical data
-
Technical data
Colour Grey / red CO₂ Footprint (GWP) Cradle-to-Gate 1,1582 kg CO₂e / 1 Piece Dimension 550x380 Length 0,55 m Length 550 mm Material Intumescent material Width 380 mm - All types
- Downloads
-
Data sheet FSB-K32 / 7203150 , 0.18MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity FSB-K32 / 7203150 , 0.11MB , pdfDeclaration of performance FSB-K32 / 7203150 , 0.75MB , pdfApproval certificate Cable bandages PYROWRAP® Wet FSB , 1.46MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions Mounting instructions, PYROWRAP , 0.61MB , pdfSafety data sheet Insulation forming material FSB , 0.05MB , pdf
