Complete solution, GES4 service outlet

Item no. 7427412 | EAN 4012195916895

5 mm
Product description

Product description

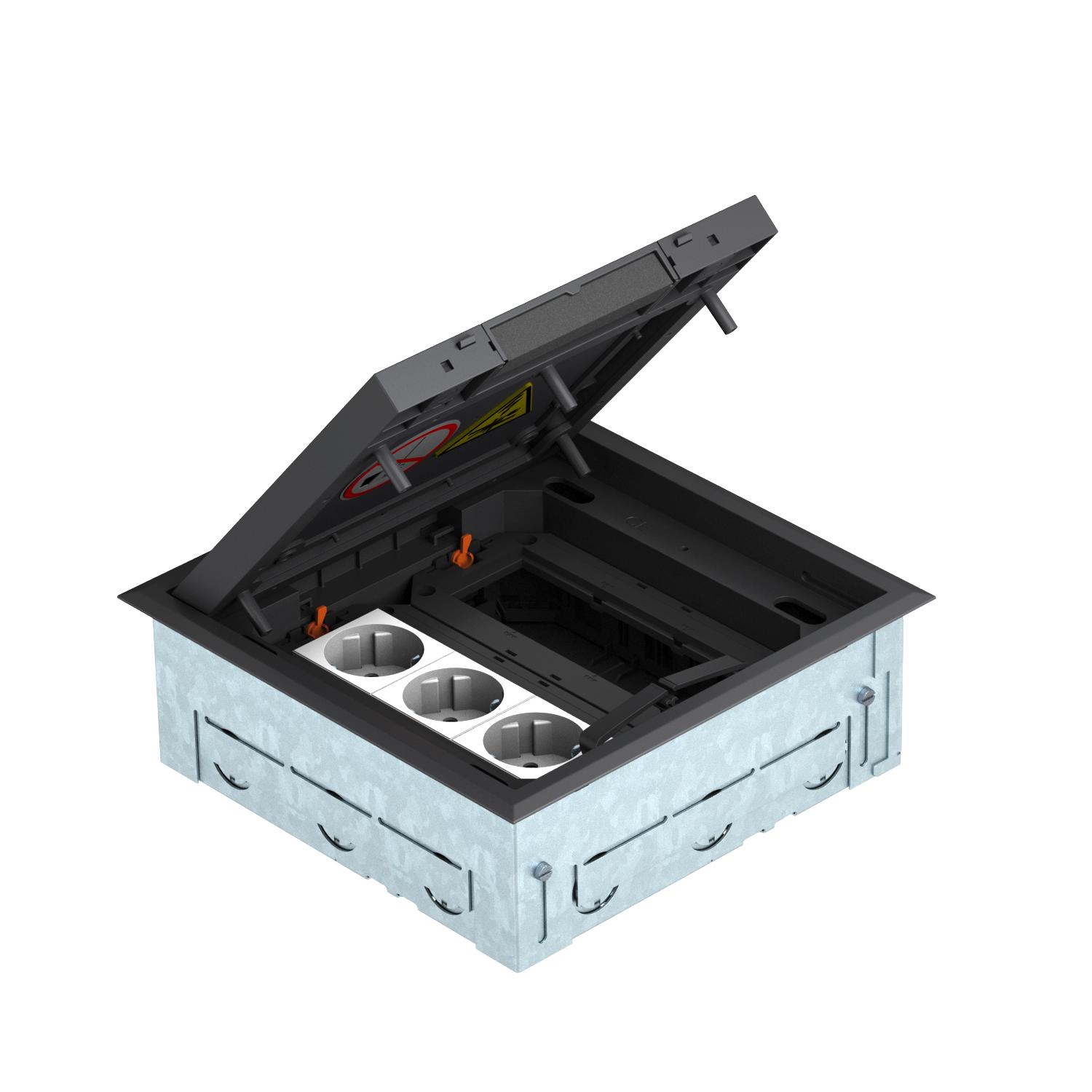

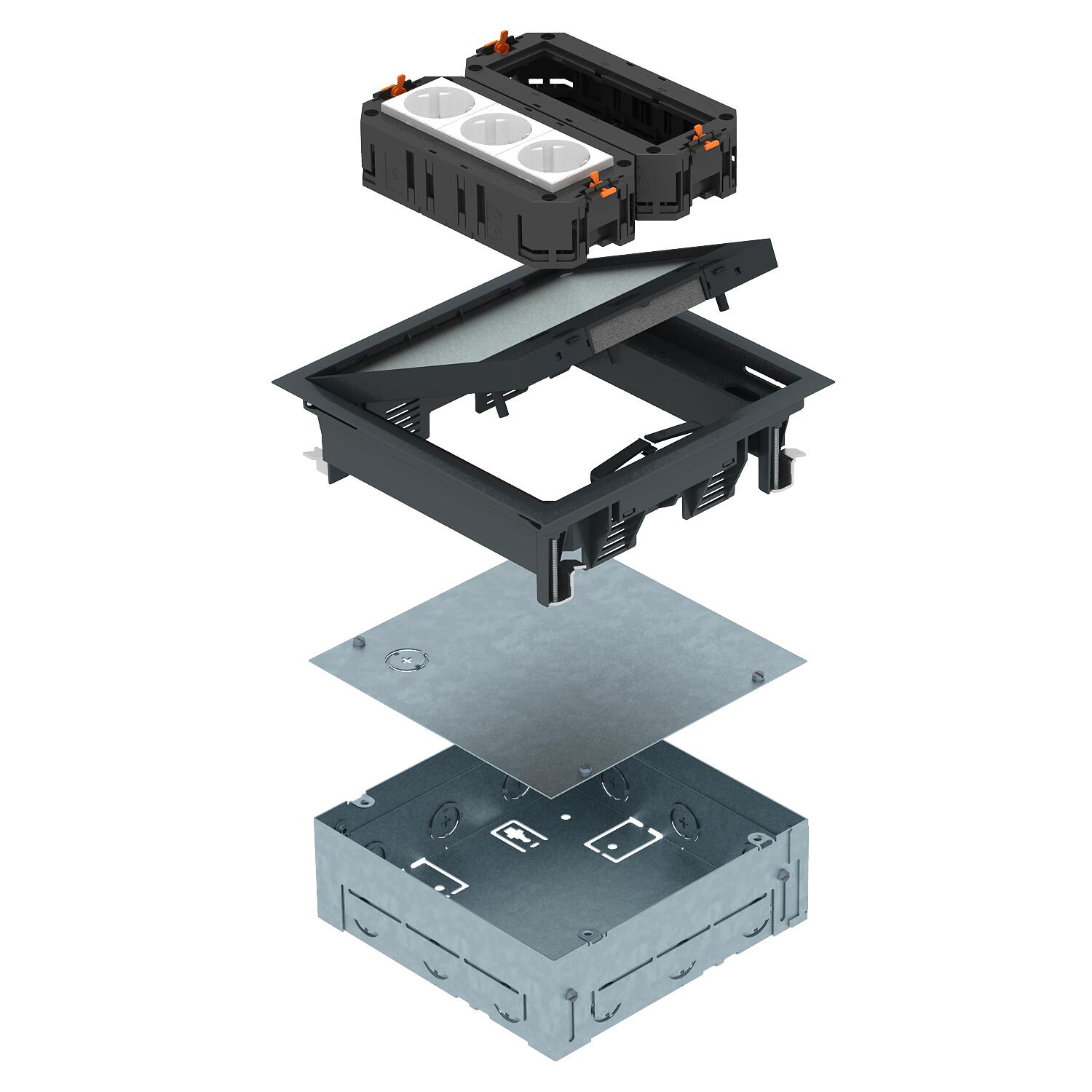

Square installation unit for six Modul 45 installation devices, for use in dry-care cavity floors and screed floors for indoor use, consisting of an installation housing, GES4-2 service outlet, two UT universal supports and a triple 33° protective contact socket, in white. Installation housing with pre-marked insertion openings for pipelines (M25), adjustable to top edge of screed. In the as-delivered state, the installation housing is closed with a blanking lid. After screed work, the service outlet can be inserted in the created mounting opening. 3, 5, 8 or 10 mm floor covering recess in the hinged cover of the service outlet.

The minimum installation depth is 72 mm including floor covering, the height adjustment range +30 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Colour Graphite black; RAL 9011
Dimension 222x222x73mm
Floor covering thickness 5 mm
Installation depth 80 mm
Length 205 mm
Material Polyamide
Opening mechanism Locking slider
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK08
Screed height, max. 100 mm
Screed height, min. 80 mm
Width 205 mm
All types

All types

Types Floor covering thickness Colour Item no. Quantity SSU
UDHOME GES4 7011 5 mm Iron grey; RAL 7011 7427410
1 piece
UDHOME GES4 9011 5 mm Graphite black; RAL 9011 7427412
1 piece
