Complete solution, GES9 service outlet

Item no. 7427470 | EAN 4012196149094

7427470 / UD GES9-3 7011
5 mm
Iron grey; RAL 7011
Product description

Product description

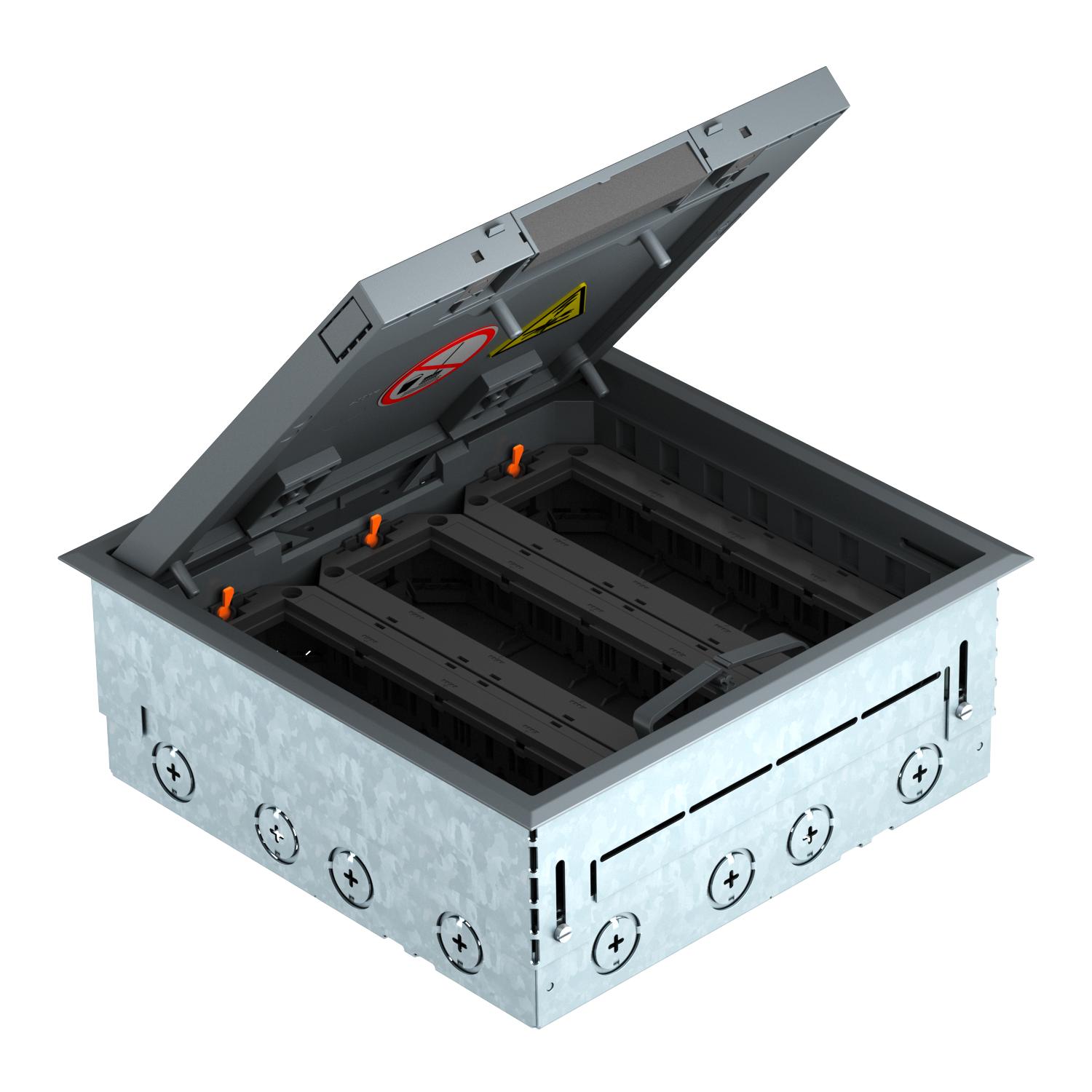

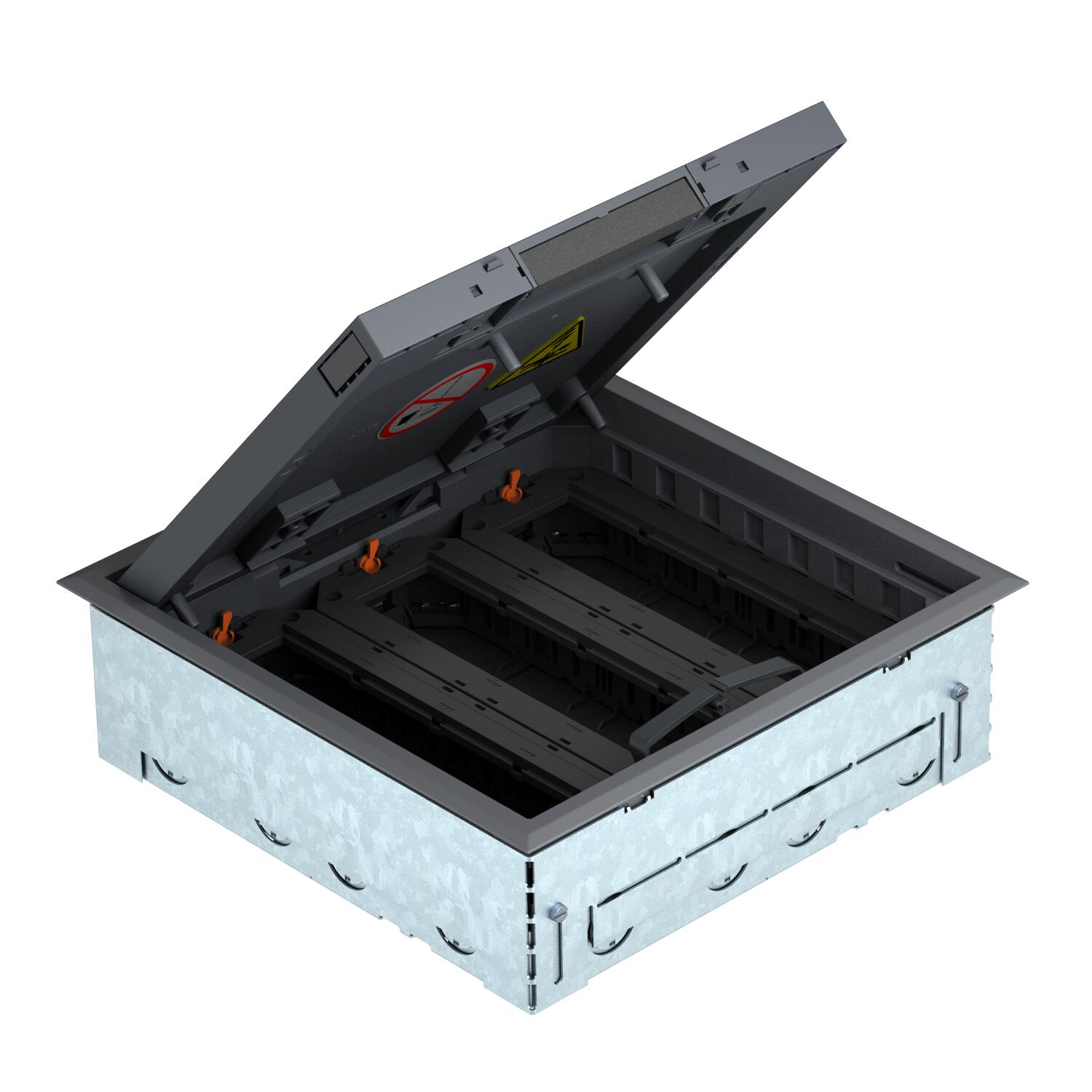

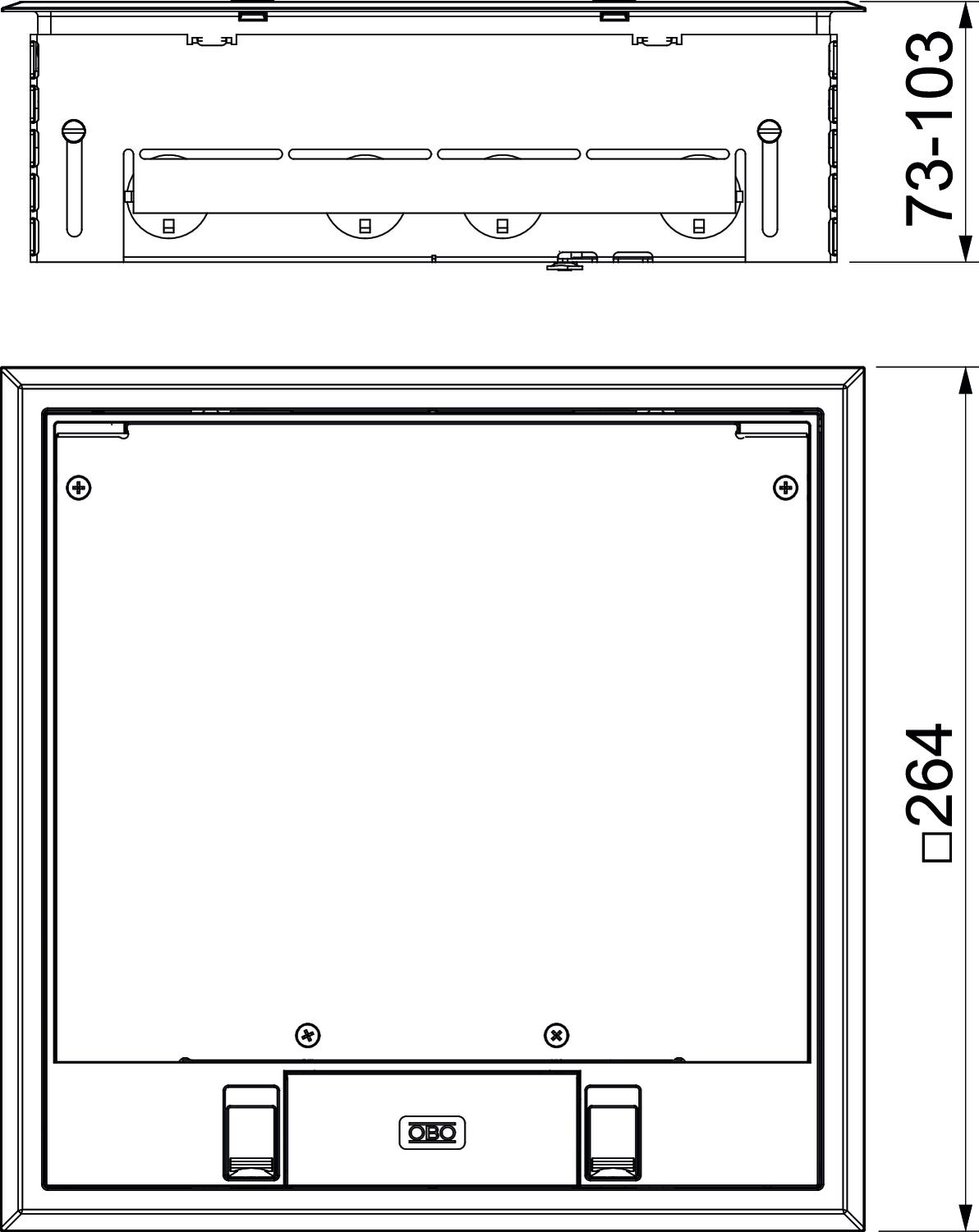

Square installation unit with cord outlet for use in dry-care cavity floors and screed floors for indoor use, consisting of an installation housing and GES9-3 service outlet (color ) with two UT4 universal supports. Installation housing with pre-marked insertion openings for pipelines (M25), adjustable to top edge of screed. In the as-delivered state, the installation housing is closed with a blanking lid. After screed work, the service outlet can be inserted in the created mounting opening. 3, 5, 8 or 10 mm floor covering recess in the hinged cover of the service outlet.

The minimum installation depth is 72 mm including floor covering, the height adjustment range +30 mm.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Colour Iron grey; RAL 7011
Floor covering thickness 5 mm
Installation depth 80 mm
Material Polyamide
Opening mechanism Locking slider
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK08
Screed height, max. 100 mm
Screed height, min. 80 mm
All types

All types

Types Floor covering thickness Colour Item no. Quantity SSU
UD GES9-3 7011 5 mm Iron grey; RAL 7011 7427470
1 piece
