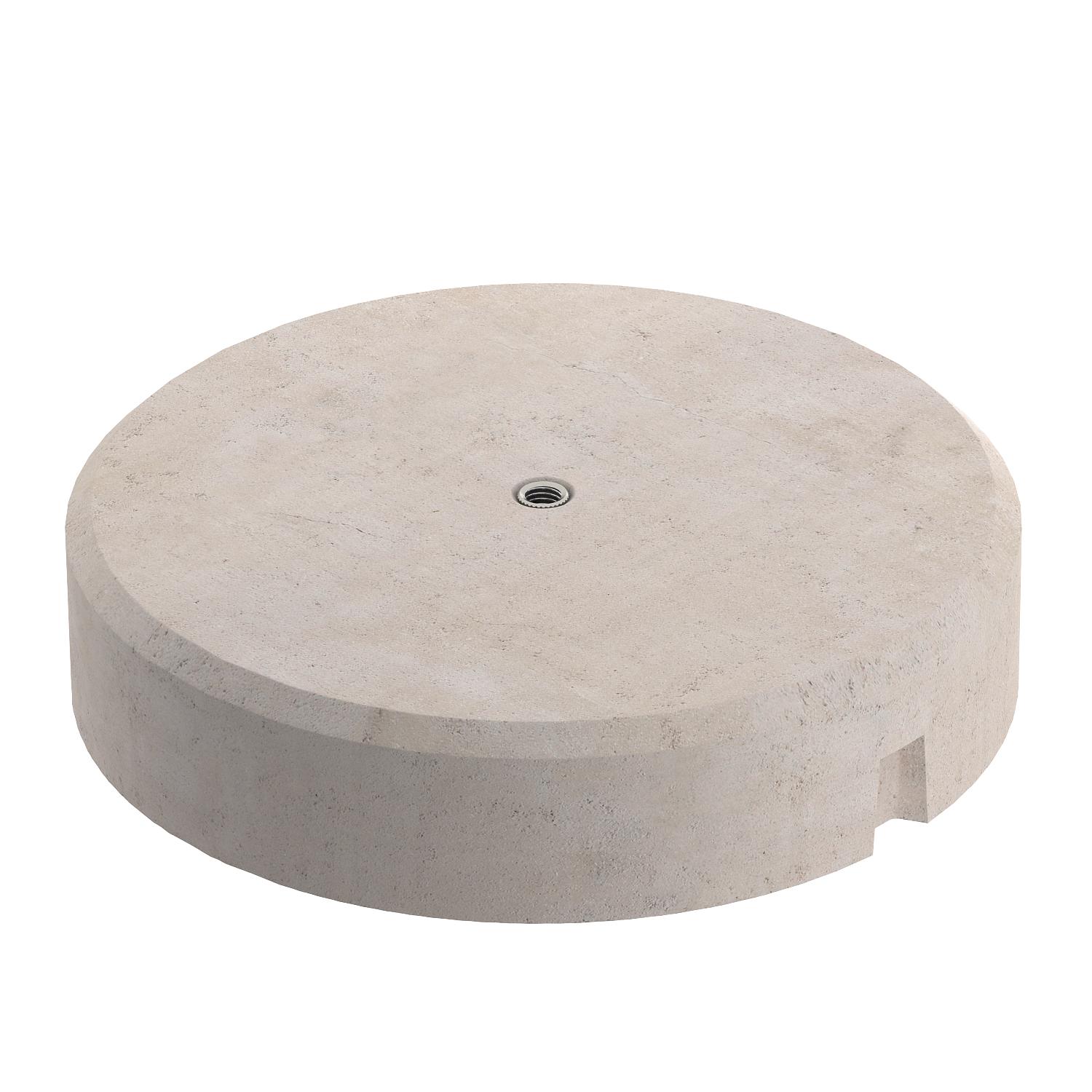

Concrete base min. 16 kg with female thread

Item no. 5402958 | EAN 4012196389766

Product description

Product description

• Weight min. 16 kg
• Frost-resistant concrete
• Female thread M16
• Recommended air-termination rod length max. 3.0 m, depending on wind load zone
Technical data

Technical data

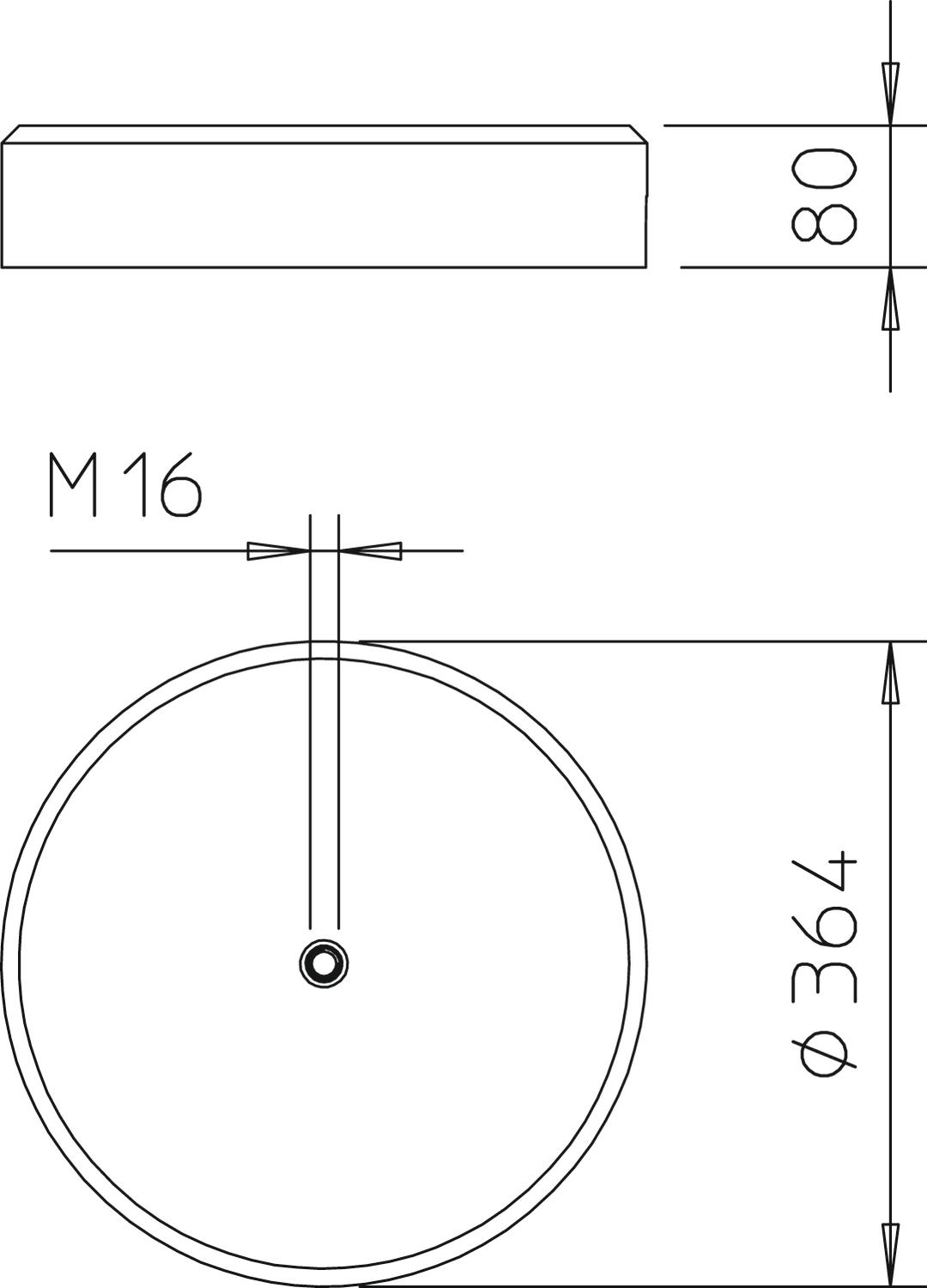

Air-termination rod holder Thread
Diameter 364 mm
Dimension M16
Material Concrete
Nominal size Ø 364 mm
Thread M16
Version for Base
Weight 16 kg
All types

All types

Types Item no. Quantity SSU
101 B2-16 M16 5402958
1 piece
