- Product description
-
Product descriptionCable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With cutting ring.
* Prices according to DEL notation.
- Technical data
-
Technical data

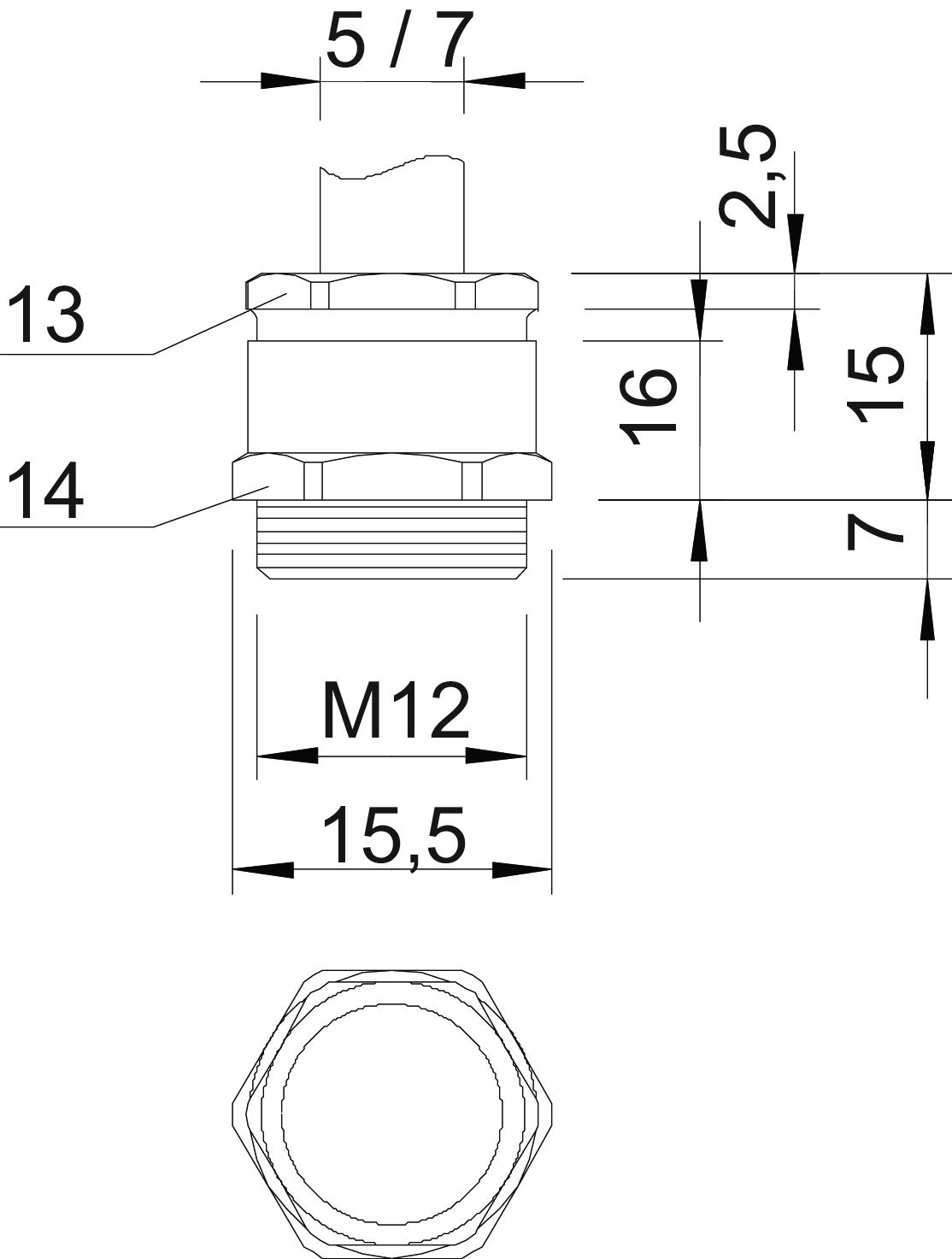

Bend protection no Dimension M12 Dimension E 15,5 mm Dimension L 15 mm Dimension L max. 15 mm Dimension L1 7 mm Dimension L2 16 mm Dimension L3 2,5 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP65 Sealing area D, max. 7 mm Sealing area D, min. 5 mm Sealing insert, multiple no Strain relief option no Surface Nickel-plated Thread M12 x 1,5 Thread length 7 mm Thread type Metric Type of seal Cuttable sealing ring WAF 1 14 mm WAF 2 13 mm With locknut no - All types
- Downloads
-
Data sheet 162 MS M12 / 2083706 , 0.22MB , pdfEU declaration of conformity 162 MS M12 / 2083706 , 0.13MB , pdfREACH Declaration of conformity 162 MS M12 / 2083706 , 0.12MB , pdfRoHS Declaration of conformity 162 MS M12 / 2083706 , 0.12MB , pdf
