Cone cable gland, metric thread, cutting ring, nickel-plated M40 x 1,5

Cone cable gland, metric thread, cutting ring, nickel-plated

Item no. 2083728 | EAN 4012195517931

Item no. / Types

Thread

Product description

Product description

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

With cutting ring.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no

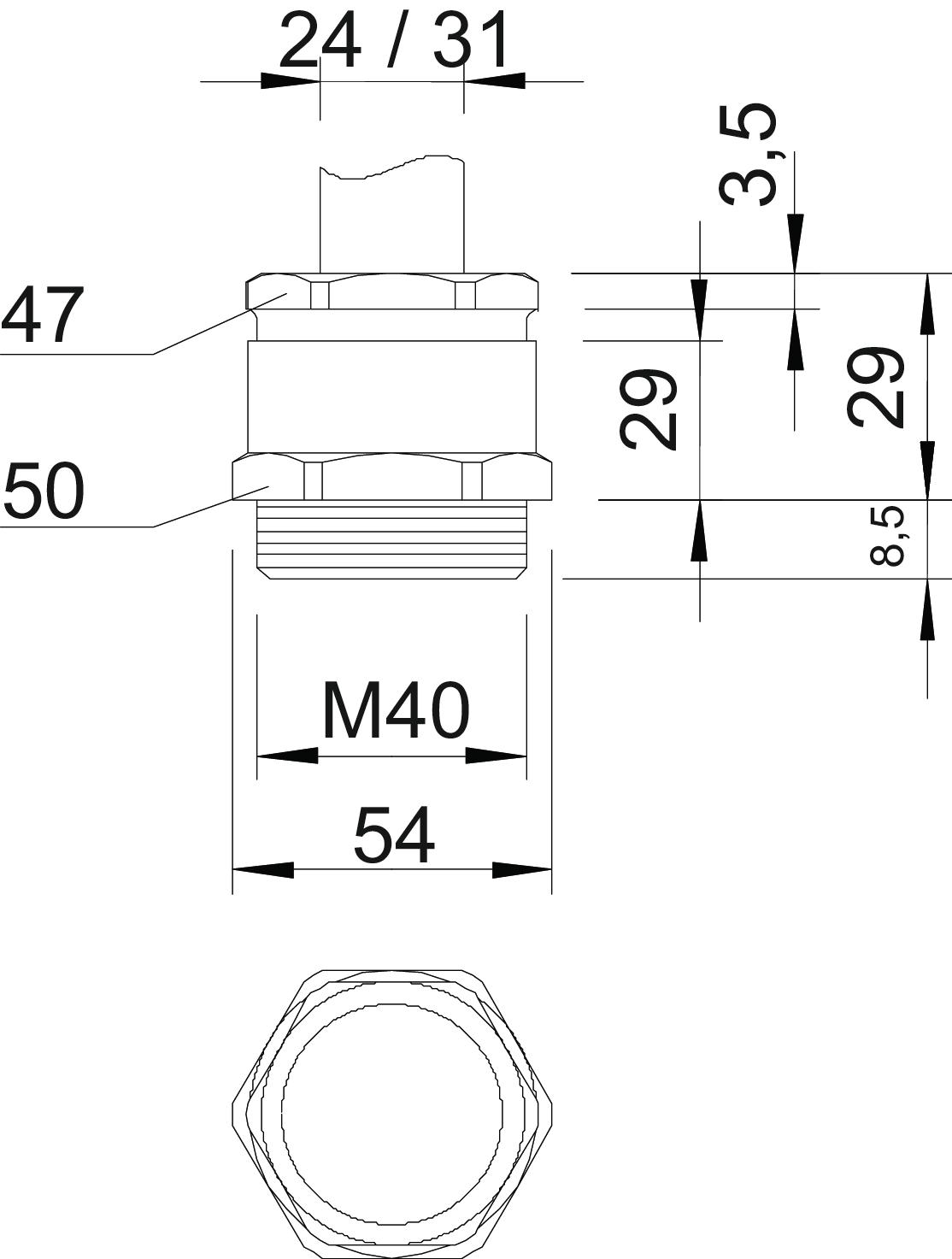

Dimension	M40
Dimension E	54 mm
Dimension L	29 mm
Dimension L max.	29 mm
Dimension L1	8,5 mm
Dimension L2	29 mm
Dimension L3	3,5 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Impact-resistant	no

Material	Brass
Protection rating	IP65
Sealing area D, max.	31 mm
Sealing area D, min.	24 mm
Sealing insert, multiple	no
Strain relief option	no
Surface	Nickel-plated
Thread	M40 x 1,5
Thread length	8,5 mm
Thread type	Metric
Type of seal	Cuttable sealing ring
WAF 1	50 mm
WAF 2	47 mm
With locknut	no

All types

All types

Types	Thread	Item no.	Quantity	SSU
162 MS M12	M12 x 1,5	2083706	piece	50 piece
162 MS M16	M16 x 1,5	2083712	piece	50 piece
162 MS M20	M20 x 1,5	2083716	piece	25 piece
162 MS M25	M25 x 1,5	2083720	piece	25 piece
162 MS M32	M32 x 1,5	2083724	piece	10 piece
162 MS M40	M40 x 1,5	2083728	piece	10 piece
162 MS M50	M50 x 1,5	2083732	piece	5 piece
162 MS M63	M63 x 1,5	2083736	piece	5 piece
