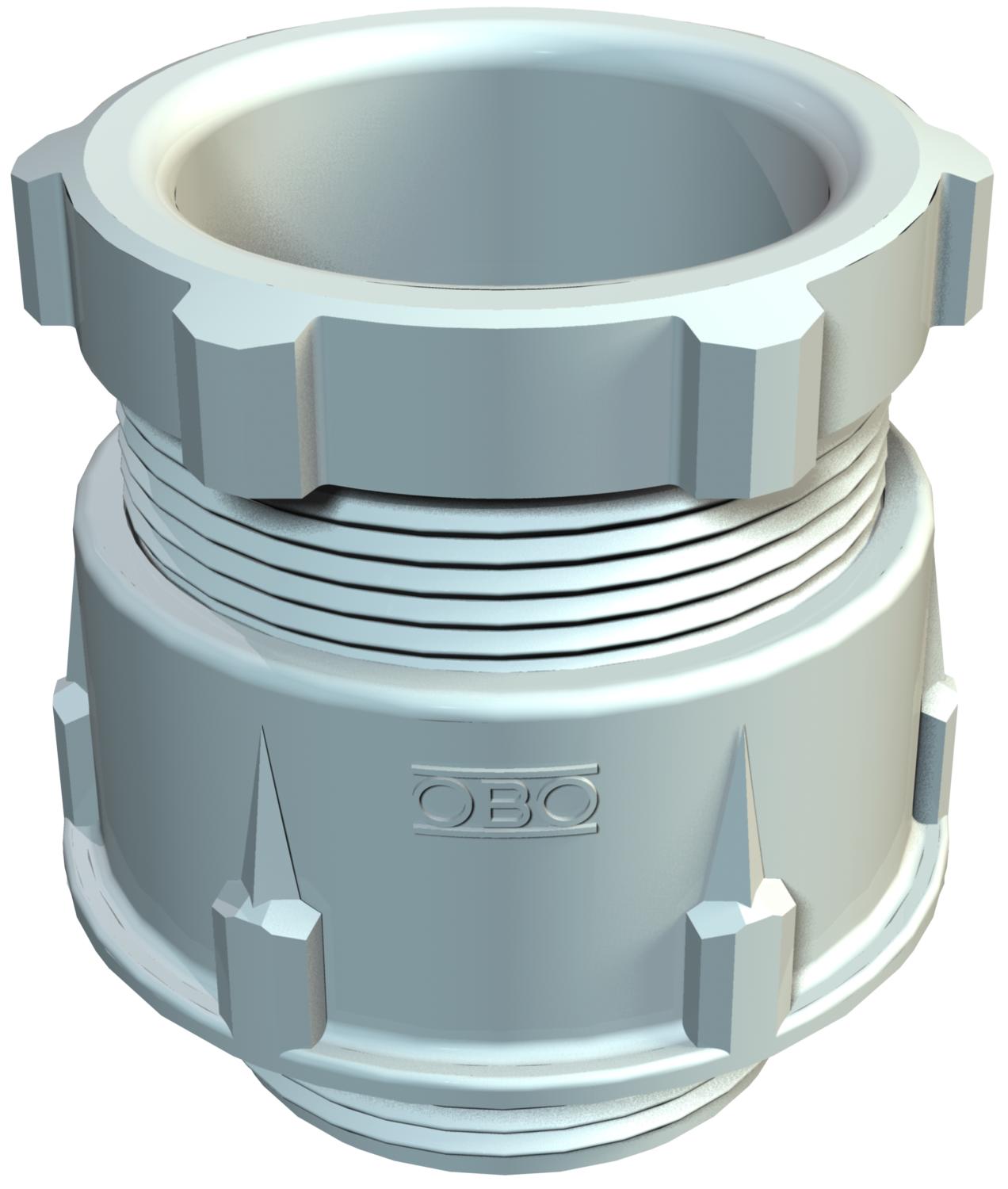

Cone cable gland, metric thread, light grey

Item no. 2035316 | EAN 4012195464952

Product description
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.

Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.

Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035
Dimension M12
Dimension D1 6,5 mm
Dimension D2 16,5 mm
Dimension D3 7 mm
Dimension D4 7 mm
Dimension G M12x1,5 mm
Dimension L max. 23 mm
Dimension L1 8 mm
Dimension L2 13 mm
Dimension L3 5 mm
Dimension L4 8,5 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Height 30 mm
Impact-resistant yes
Length 16,5 mm
Material Polystyrene
Nominal thread size 12
Protection rating IP65
Sealing area D, max. 6,5 mm
Sealing area D, min. 3,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread M12 x 1,5
Thread length 8 mm
Thread type Metric
Type of seal Sealing ring
Version for Straight
WAF 1 15 mm
WAF 2 13 mm
Width 16,5 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
106 M12 PS M12 x 1,5 2035316
50 piece
106 M16 PS M16 x 1,5 2035324
50 piece
106 M 20 PS M20 x 1,5 2035332
50 piece
106 M 25 PS M25 x 1,5 2035340
50 piece
106 M 32 PS M32 x 1,5 2035359
10 piece
106 M 40 PS M40 x 1,5 2035367
10 piece
106 M 50 PS M50 x 1,5 2035375
50 piece
106 M 63 PS M63 x 1,5 2035383
50 piece
