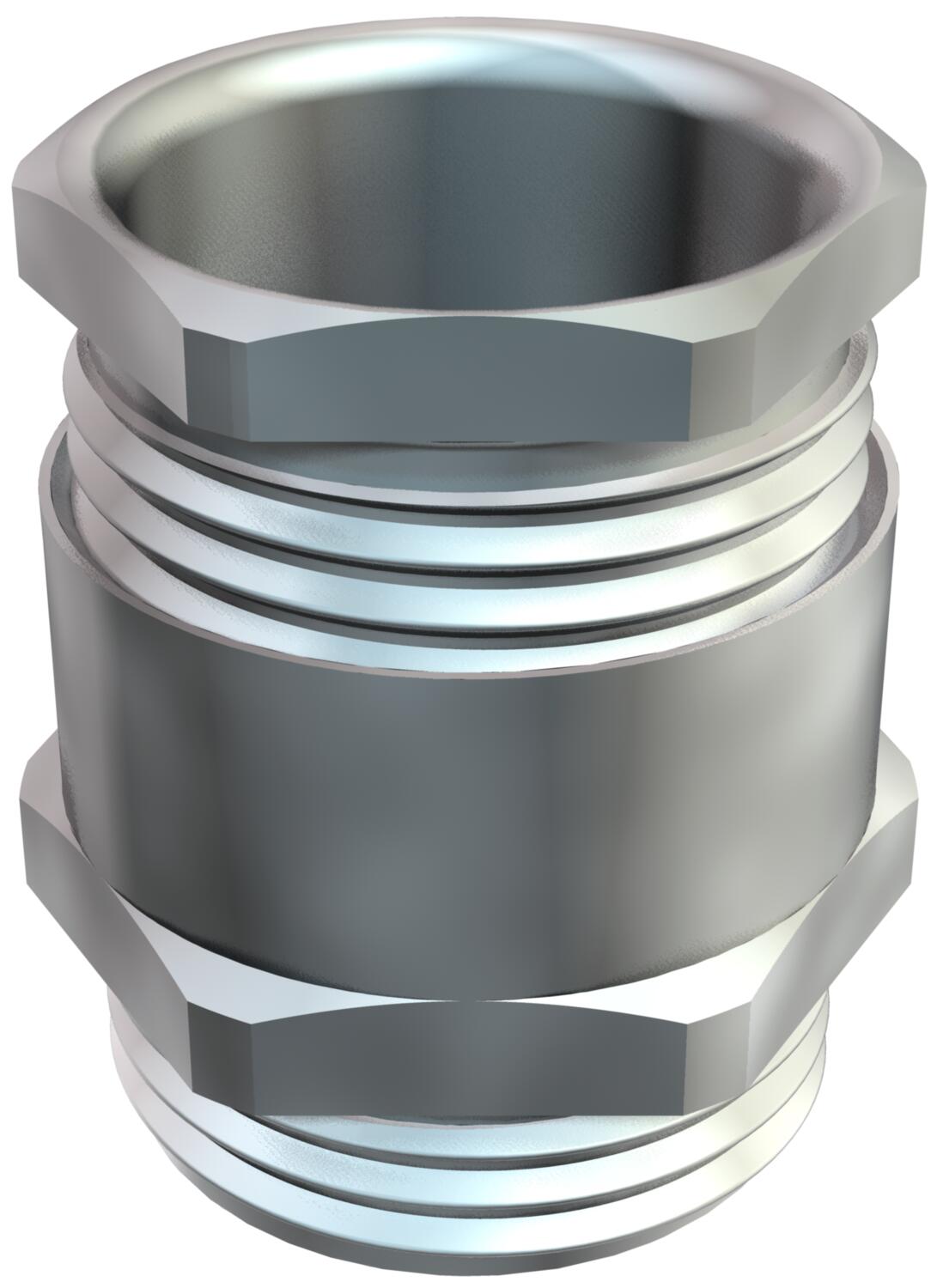

Cone cable gland, metric thread, small cutting ring, nickel-plated M50 x 1,5

Cone cable gland, metric thread, small cutting ring, nickel-plated

Item no. 2083671 | EAN 4012195482178

Item no. / Types

Thread

Product description

Product description

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel.

NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

With simple sealing ring, with small internal diameter.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no
Dimension	M50
Dimension E	62,1 mm
Dimension L1	10,5 mm
Dimension L2	23 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Impact-resistant	no
Material	Brass
Protection rating	IP54

Sealing area D, max.	39 mm
Sealing area D, min.	37 mm
Sealing insert, multiple	no
Strain relief option	no
Surface	Nickel-plated
Thread	M50 x 1,5
Thread length	9,5 mm
Thread type	Metric
Type of seal	Sealing ring
WAF 1	57 mm
WAF 2	54 mm
With locknut	no

All types

All types

Types	Thread	Item no.	Quantity	SSU
163 MS M12	M12 x 1,5	2083612	piece	50 piece
163 MS M16	M16 x 1,5	2083620	piece	50 piece
163 MS M20	M20 x 1,5	2083639	piece	25 piece
163 MS M25	M25 x 1,5	2083647	piece	25 piece
163 MS M32	M32 x 1,5	2083655	piece	10 piece
163 MS M40	M40 x 1,5	2083663	piece	10 piece
163 MS M50	M50 x 1,5	2083671	piece	5 piece
163 MS M63	M63 x 1,5	2083698	piece	5 piece
