Cone cable gland, PG thread, cutting ring, nickel-plated
Item no. 2082578 | EAN 4012195187752
- Product description
-
Product description
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With cutting ring.
* Prices according to DEL notation.
-
- Technical data
-
Technical data
Bend protection no Dimension PG21 explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP65 Sealing area D, max. 20,5 mm Sealing area D, min. 10 mm Sealing insert, multiple no Strain relief option no Surface Nickel-plated Thread Pg 21 Thread type PG Type of seal Cuttable sealing ring WAF 1 30 mm WAF 2 28 mm With locknut no Dimensions

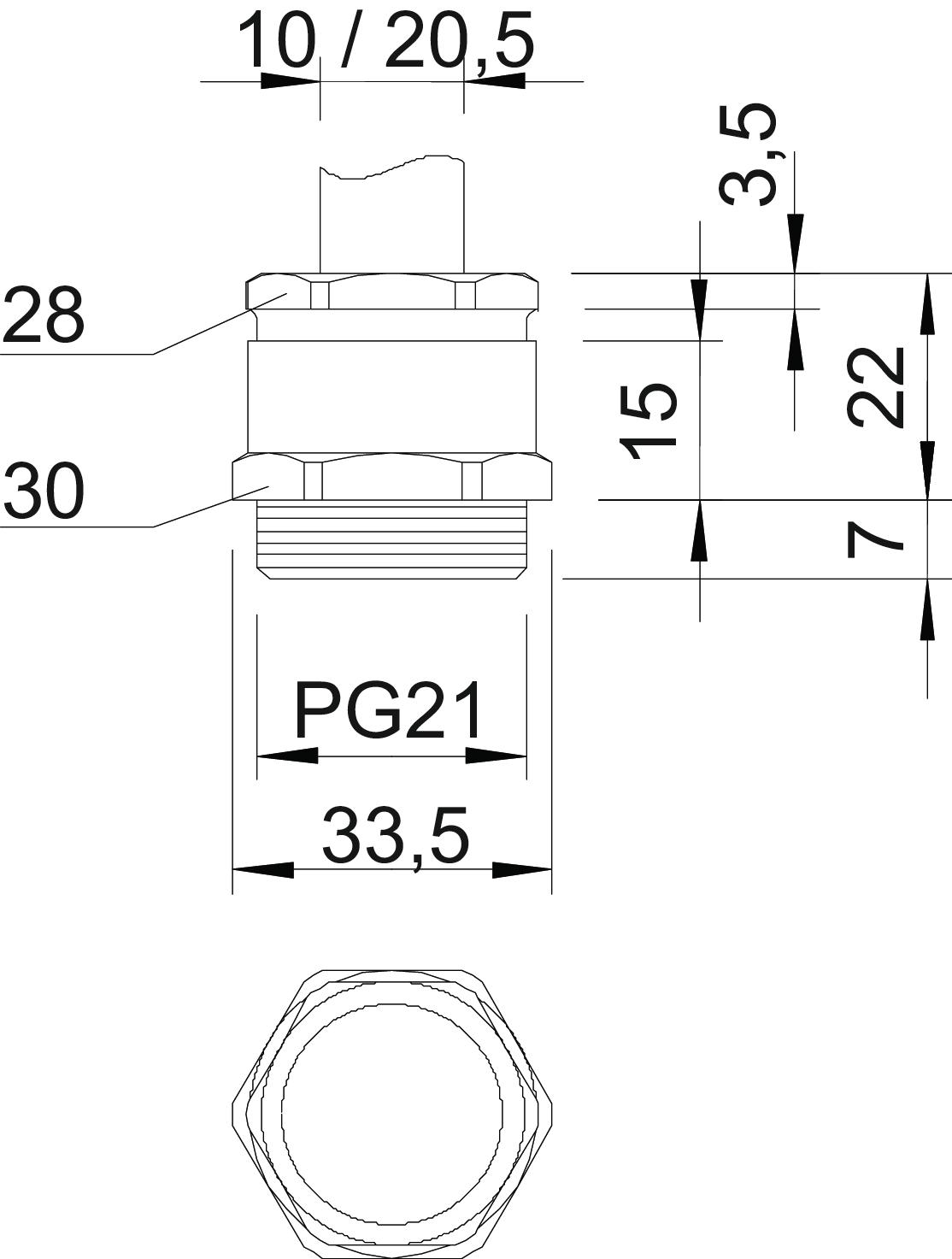

Dimension E 33,5 mm Dimension L 22 mm Dimension L max. 22 mm Dimension L1 7 mm Dimension L2 15 mm Dimension L3 3,5 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU

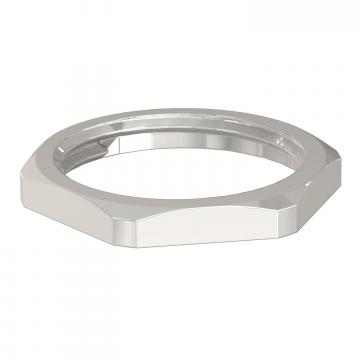

Locknut, PG thread
169 MS PG21 2091216 100 piece - Downloads
-
Data sheet 162 MS PG21 / 2082578 , 0.30MB , pdfDeclaration of conformity 162 MS PG21 / 2082578 , 0.05MB , pdfREACH Declaration of conformity 162 MS PG21 / 2082578 , 0.12MB , pdfRoHS Declaration of conformity 162 MS PG21 / 2082578 , 0.12MB , pdf
